Removing Cover For Front Seat

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

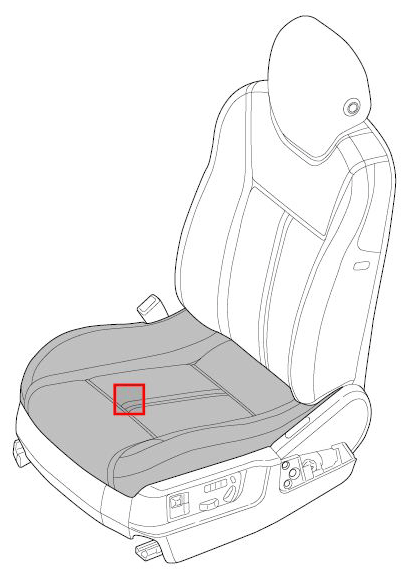

Fig 1: Identifying Front Seat Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove padding for front seat. → Removing Padding For Front Seat
Information
- Only in cars with seat heating!

  Fig 2: Removing Seat Heating Connector
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release plug connection -Arrow A- and disconnect it -Arrows B- .

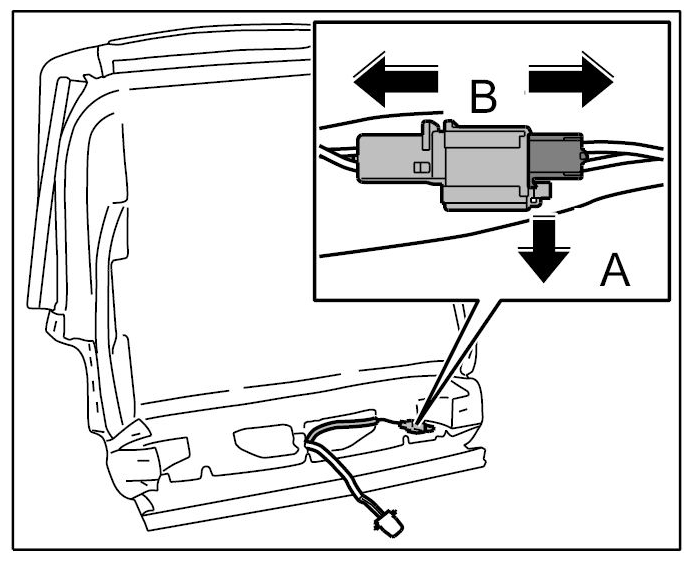

Fig 3: Removing Seat Heating Connector Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen staples -a- together with cover for padding on right and left -arrow- .

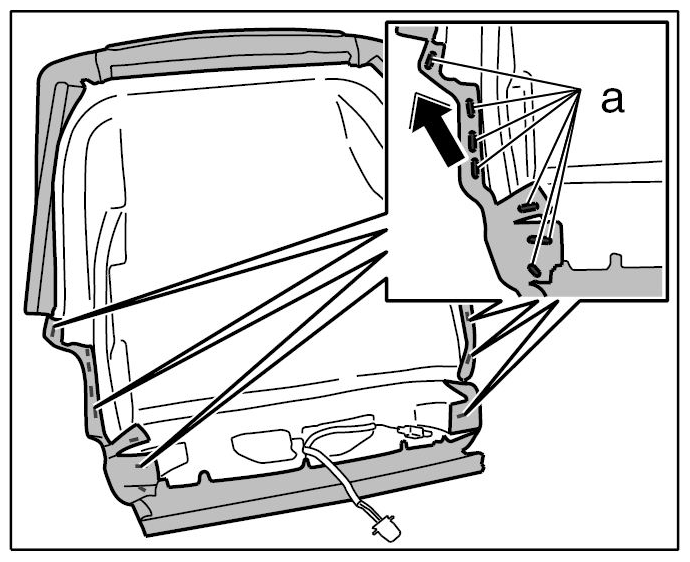

Fig 4: Loosening Paddle Staples
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Release seat cover from the padding, starting from the outside.
- Do so in the following sequence: left/right, front/rear, middle.
Cut open cushion clips 00000 -b- with side cutters -1- and remove cover from padding -arrow- .

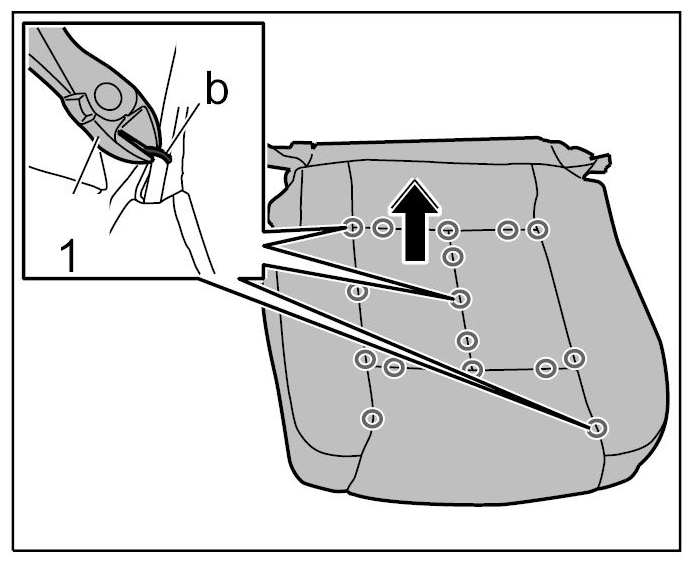

Fig 5: Removing Cover From Padding Using Tool
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
