Removing Padding For Front Seat

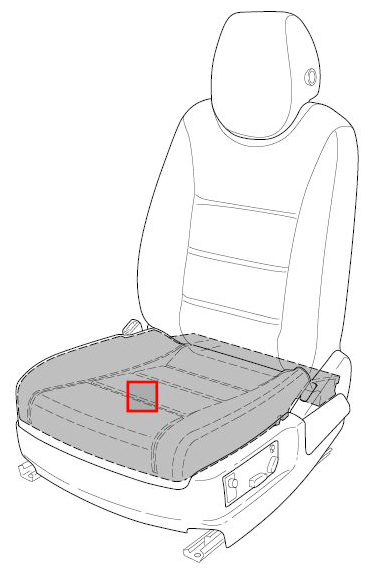

Fig 1: Identifying Front Seat Pad

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Switch off ignition and remove ignition key or remote control (hand-held transmitter).

→ A voltage supply (e.g. battery charger) must not be connected to the external power supply/jump-lead starting terminals.

→ Disconnect the battery and insulate the ground strap so that all contact with a ground carrier is avoided.

→ Wait 1 minute after disconnecting the battery.

→ Only detach connector on the triggering unit after the waiting time has elapsed.

→ Make sure that no foreign objects are located in front of the airbag unit during installation.

→ Replace damaged parts during removal.

→ Always position airbag units so that the blow-out opening is facing upwards, e.g. crest on driver's airbag.

→ Do not position anything on the airbag units.

→ If removed for an extended period, the airbag units must be stored in a safe place.

→ Airbag units must not come into contact with grease, oil, detergents, liquids, or similar substances.

→ Do not expose airbag units to temperatures above 90°.

→ Do not remove the short-circuit spring on the plug-in contacts.

→ Ignition and preparations may only be carried out by skilled staff, supervised by a second responsible person.

→ Before disposal, the airbag unit must be rendered harmless by electrical ignition performed in accordance with all precautionary measures, thereby preventing it from being used incorrectly.

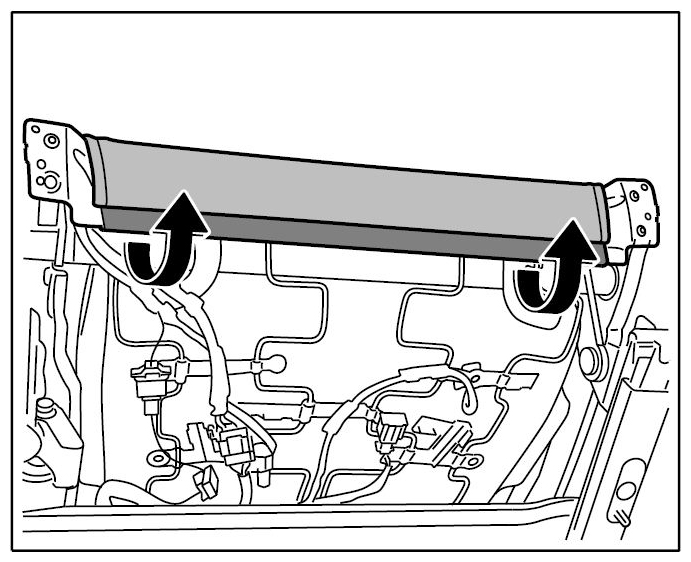

1. Disengage rear plastic strip for cover -arrows-  .
   Fig 2: Disengage Cover Rear Plastic Strip

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

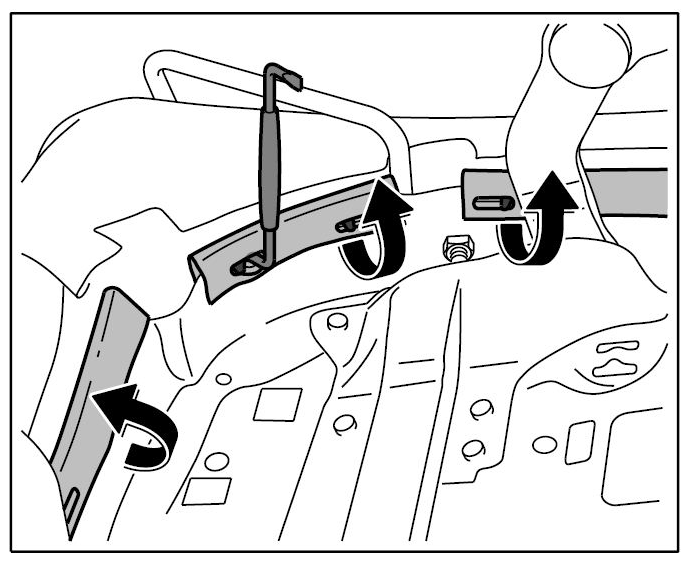

2. Use a suitable angular screw driver to lever out plastic strips at front and side from retaining hooks -arrows-  .
   Fig 3: Removing Plastic Strips Using Suitable Angular Screw Driver

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Remove padding and seat cover from seat frame.
