Installing Cover For Front Seat

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

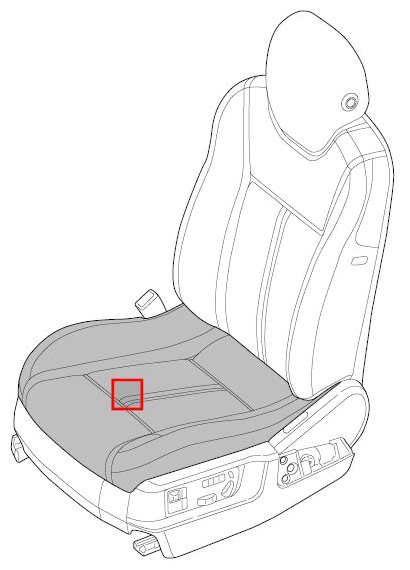

Fig 1: Identifying Front Seat Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Place the cover on the padding -arrow- and align with the contour of the padding.

Fig 2: Placing Cover On Padding
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Fasten seat cover to the padding, starting from the inside.
- Do so in the following sequence: middle, front/rear, left/right.

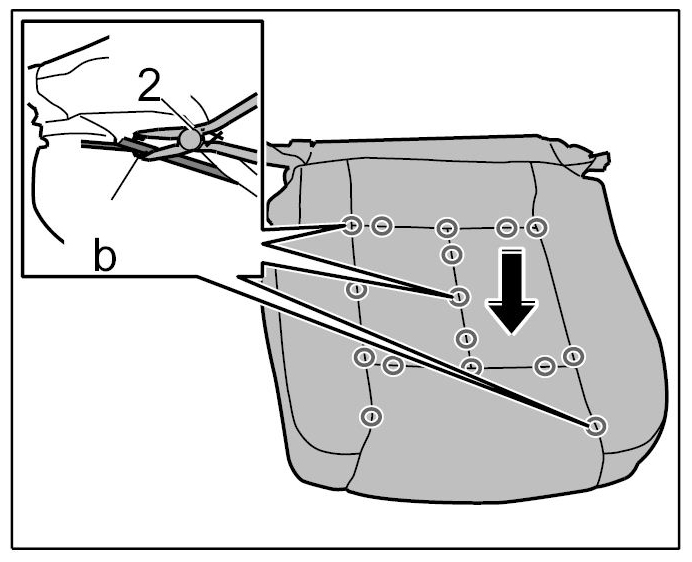

Fasten the cover to the padding using cushion clip pliers Nr.130 -2- and new cushion clips 00000 -b- .

Fig 3: Fastening Cover To Padding Using Cushion Clip Pliers
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

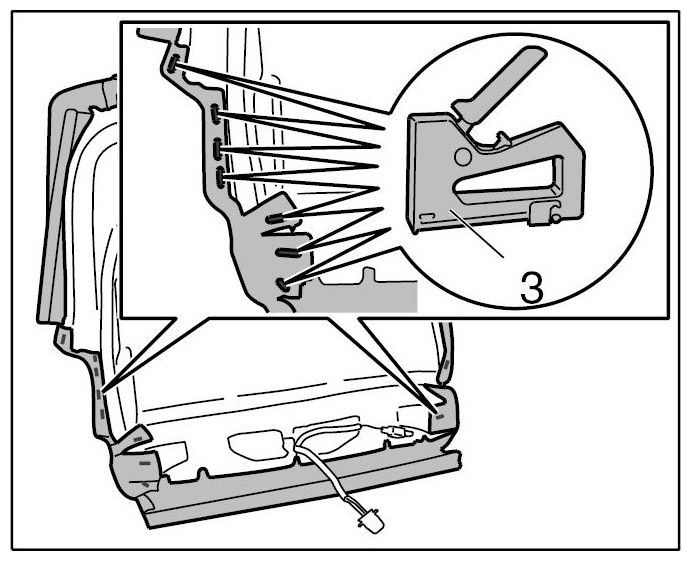

Fasten cover to the right and left padding using staple gun Nr.163 -3- and new staples.

Fig 4: Fastening Cover To Pad Using Staple Gun
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Only in cars with seat heating!

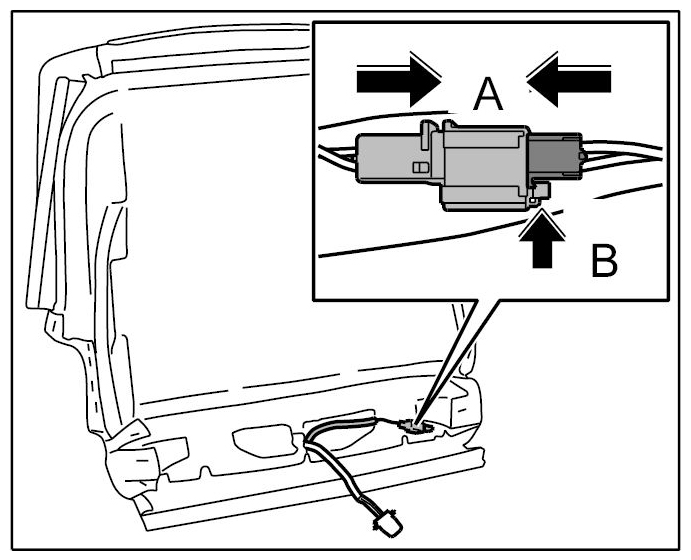

  Fig 5: Installing Seat Heat Connector
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

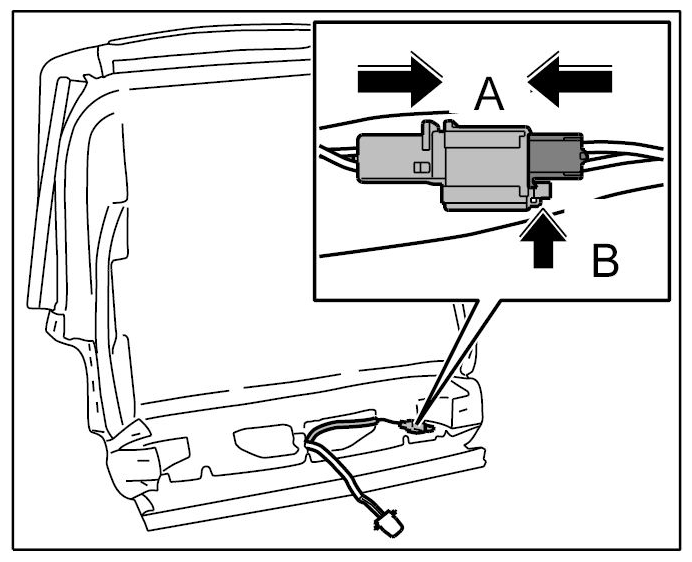

Push together plug connection -arrows A- until the locking tabs -arrow B- are felt to engage.

Fig 6: Pushing Seat Heat Connector Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install padding for front seat.

→ Installing Padding For Front Seat
