Installing Padding For Front Seat

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

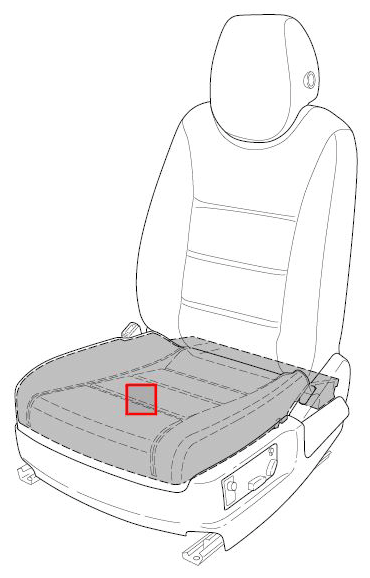

Fig 1: Identifying Front Seat Pad

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Place padding and cover on seat frame and align with seat frame.
Engage cover at rear of seat frame -arrows- .

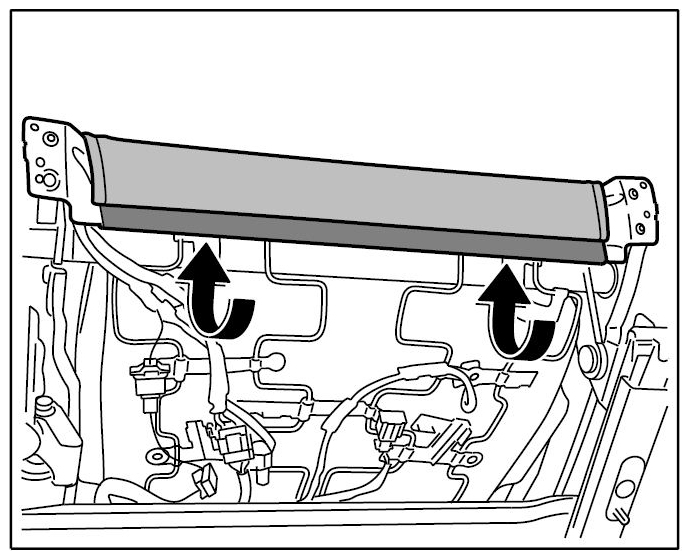

Fig 2: Engaging Cover At Rear Of Seat Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Using a suitable angular screw driver, engage cover at the front and side of seat frame -arrows- . Ensure plastic strips are engaged on all retaining hooks.

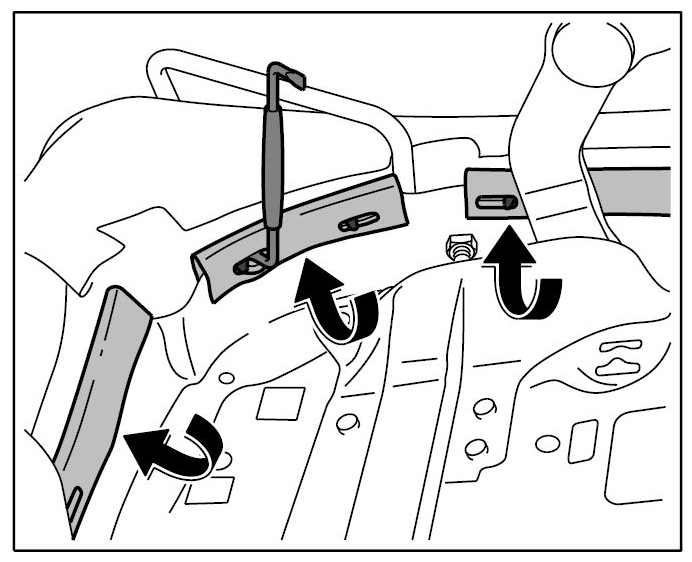

Fig 3: Engaging Cover At Rear Of Seat Frame Using Suitable Angular Screw Driver
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
