Removing Seal For Roof Assembly: Notes

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove roof joint cover strip → Removing roof joint cover strip

Open roof panel 1.
Pull off seal.
1. 2.1. Pull off seal -1- on both sides of the vehicle, starting from the rear -arrow A- .
  Use a sharp knife to help detach the seal.

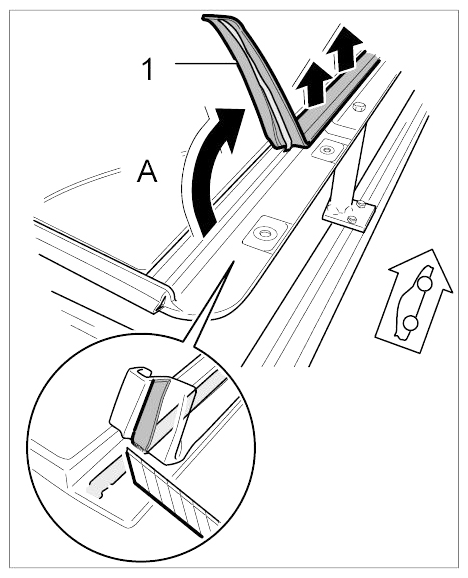

  Fig 1: Loosening Seal
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Pull off seal -1- at the front edge of the roof assembly -arrows B- .

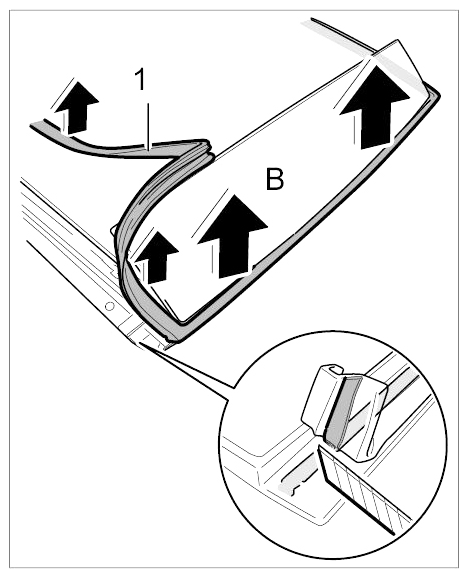

  Fig 2: Pulling Off Seal
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clean bonding surfaces with isopropanol.

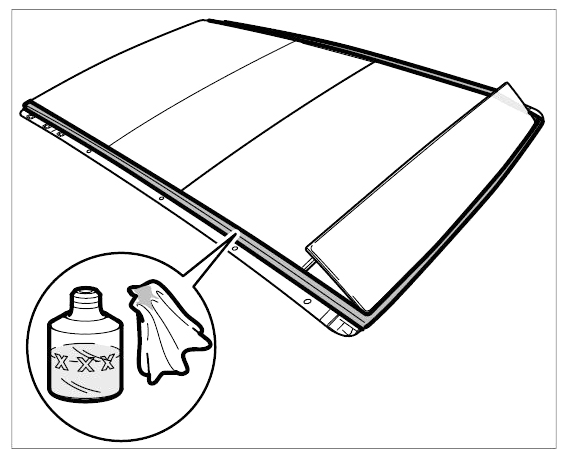

Fig 3: Cleaning Bonding Surfaces
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Apply primer to the plastic surfaces and leave to dry off. → Time: 10 minutes

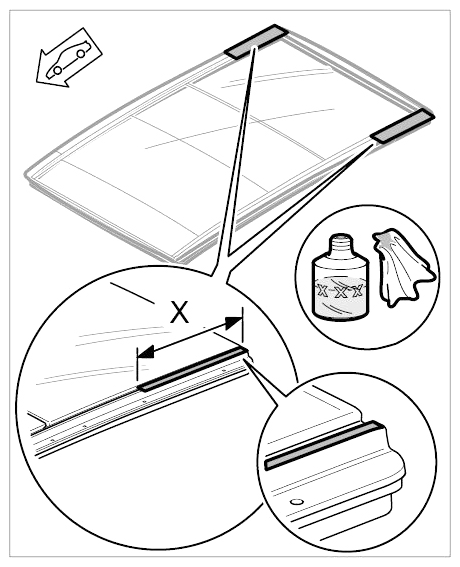

Fig 4: Identifying Primer Applying Area (1 Of 2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

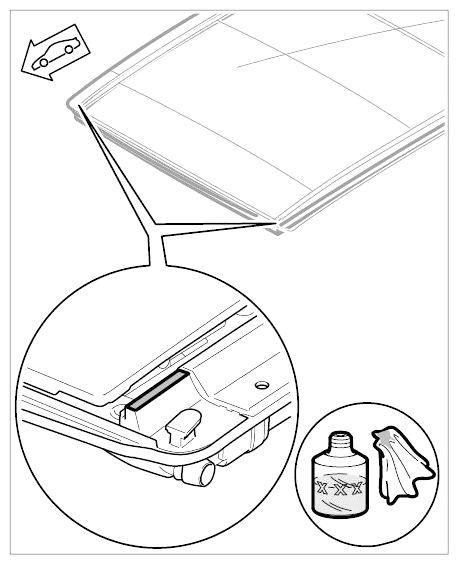

Fig 5: Identifying Primer Applying Area (2 Of 2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
