Installing Side Window And Power Window Mechanism

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Install the power window mechanism.
1. 1.1. Place the power window mechanism on the door frame as shown. Make sure the cable is in the correct position (-arrow E- ).

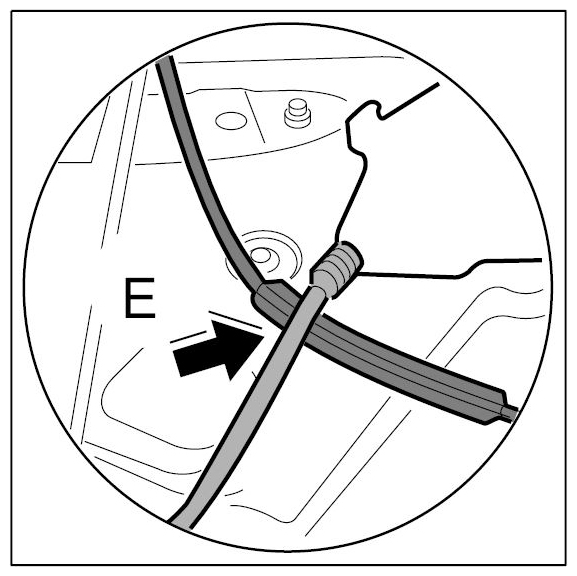

  Fig 1: Placing Power Window Mechanism On Door Frame
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Clip in power window gear -26- in the door sub-frame.

  Fig 2: Identifying Clip In Power Window Gear And Door Sub-Frame Bolts
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 1.3. Fix the guide rails -27- with 2 rivets each -28- and rivet to the door frame.

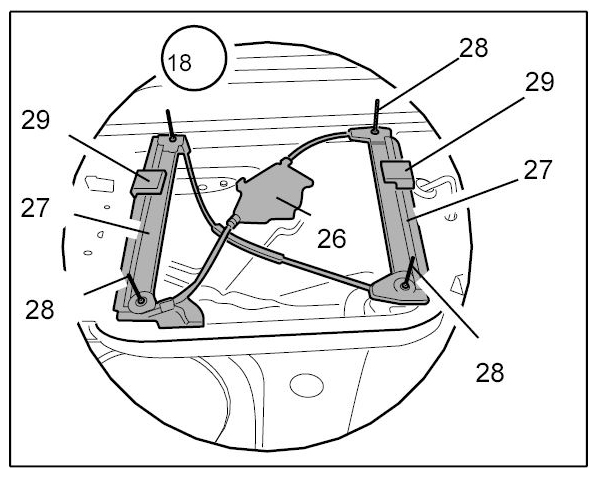

  Fig 3: Identifying Guide Rails And Rivets
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 1.4. Apply lubricant (grease) to the guide rails and move the sliding pads -29- manually.

  Fig 4: Identifying Lubricant (Grease) Applying To Guide Rails
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert door side window. → Installing rear door window
Installing the power window drive
1. 3.1. Connect power window motor -32- and control unit -33- and clip into place.

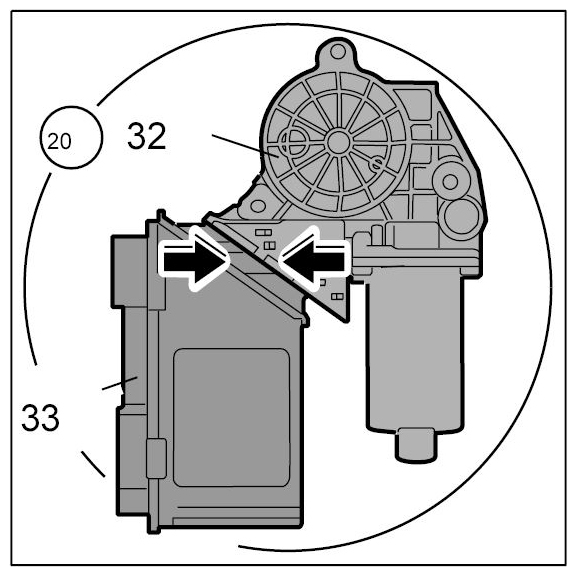

  Fig 5: Connecting Power Window Motor Control Unit
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Position the power window drive on the power window gear.
3. 3.3. Screw in fastening screws -34- and tighten to tightening torque.
  → Tightening torque: 3.0 Nm (2.0 ftlb.)+/-0.3 Nm (+/-0.2 ftlb.)

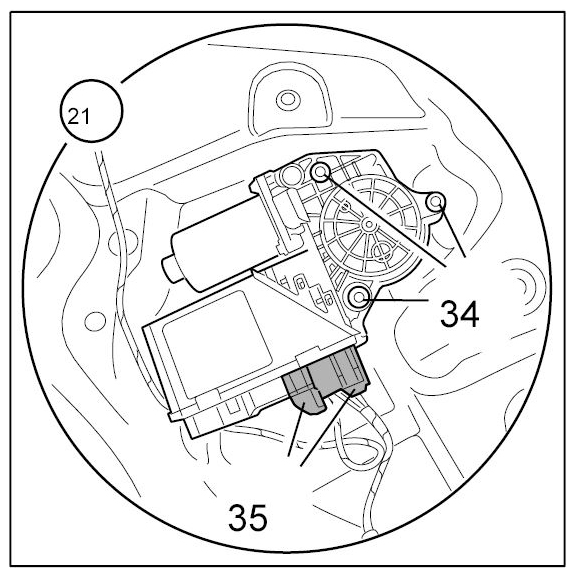

  Fig 6: Identifying Power Window Gear Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 3.4. Connect electric push-on connector -35- .

  Fig 7: Identifying Electric Push-On Connector Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
