Installing Rear Door Window

Possible variants:

Single-glazed safety glass side window: Fastening elements are to be fitted separately on the sliding pads

Laminated safety glass side window: Fastening elements are already fitted on the side window

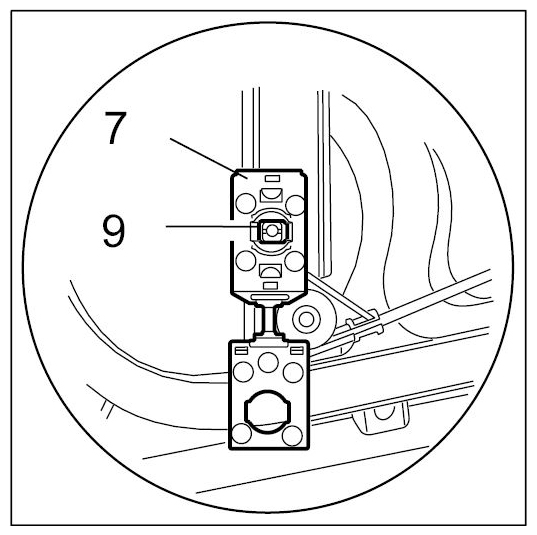

1. 1.1. Place fastening parts -7-  on sliding pads -9-  .
   Fig 2: Identifying Fastening Parts On Sliding Pads

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Guide in side window -8-  and insert into fastening parts -7-  .
   Fig 3: Guiding Side Window

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

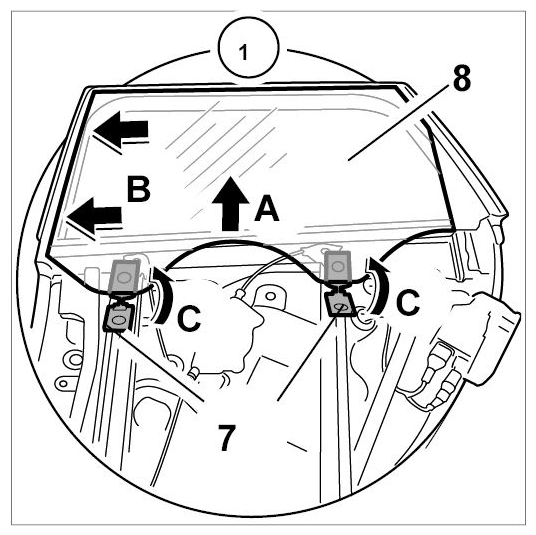

3. 1.3. Manually close the side window -8-  (-arrows A-  ) and, using increased pressure, press it into and parallel with the guide in the direction of the B-pillar (-arrow B-  ).
   Fig 4: Closing Side Window Manually

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

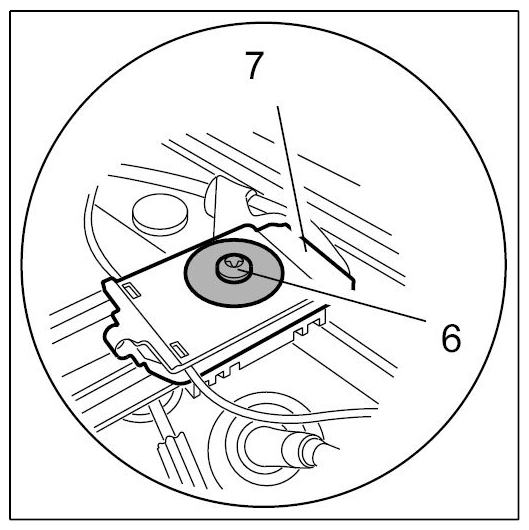

4. 1.4. Close fastening elements -7-  (-arrows C-  ), screw in fastening screws -6-  and tighten. → Tightening torque: 3.3 Nm (2.5 ftlb.)+/-0.3 Nm (+/-0.5 ftlb.)
   Fig 5: Closing Fastening Elements

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

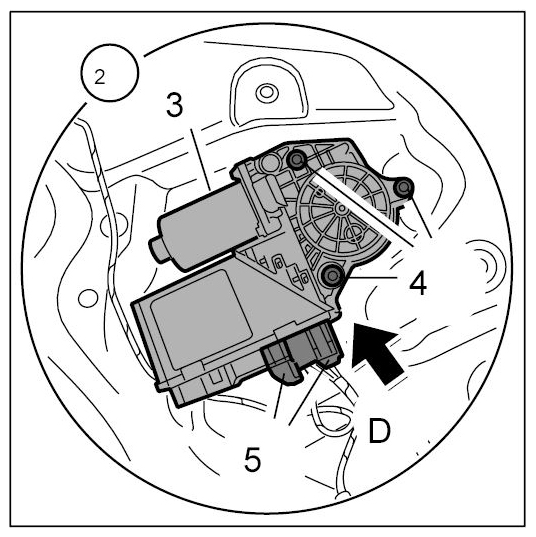

1. 2.1. Insert power window motor -3-  , screw in fastening screws -4-  and tighten to the specified tightening torque. → Tightening torque: 3 Nm (2.0 ftlb.)+/-0.5 Nm (+/-0.5 ftlb.)
2. 2.2. Push in electrical plugs -5-  until they audibly engage (-Arrow D-  ).
   Fig 6: Inserting Power Window Motor

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

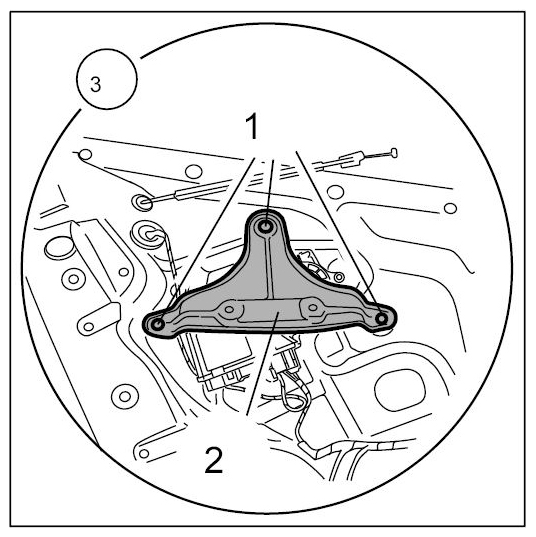

1. 3.1. Insert holder -2-  for inside door handle, screw in fastening screws -1-  and tighten to the specified tightening torque.

   → Tightening torque: 6 Nm (4.5 ftlb.)+/-0.6 Nm (+/-0.5 ftlb.)

   Fig 7: Identifying Holder With Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
