Installing Door Lock

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

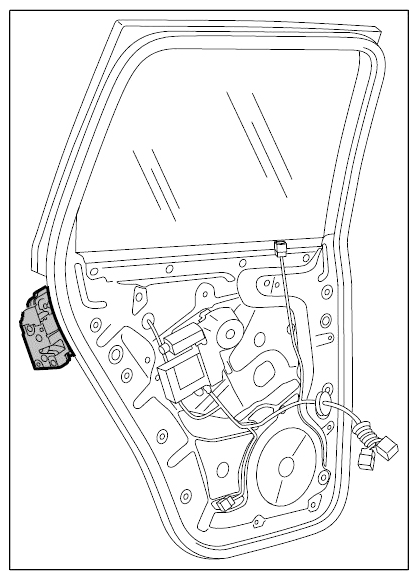

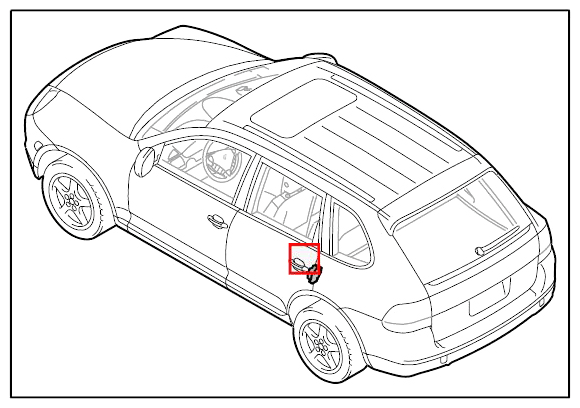

Fig 1: Identifying Rear Door Lock

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 2: Identifying Door Lock Actuating Mechanism

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Install door lock.

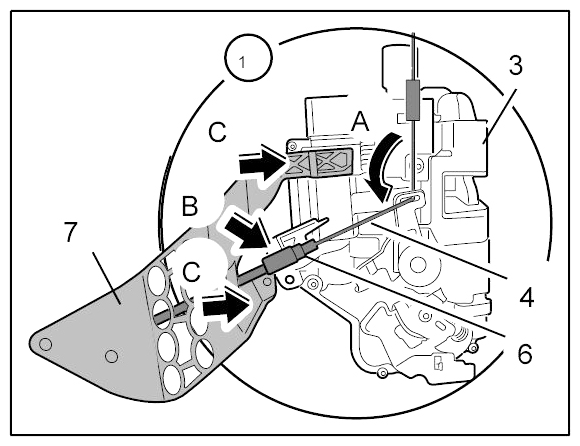

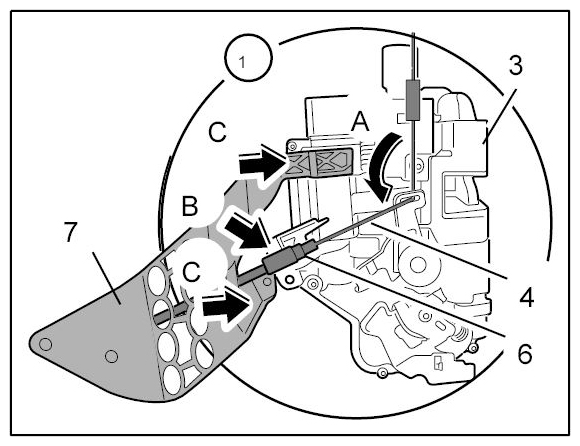

1. 1.1. Engage bowden cable -4- on door lock actuating mechanism and swivel by 90° (-arrow A- ).

  Fig 3: Installing Door Lock
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Clip in fastening of bowden cable -6- on door lock -3- (-arrow B- ).

  Fig 4: Clipping In Fastening Of Bowden Cable 6 On Door Lock
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 1.3. Fit lock retaining bracket -7- (-arrows C- ).

  Fig 5: Fitting Lock Retaining Bracket
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

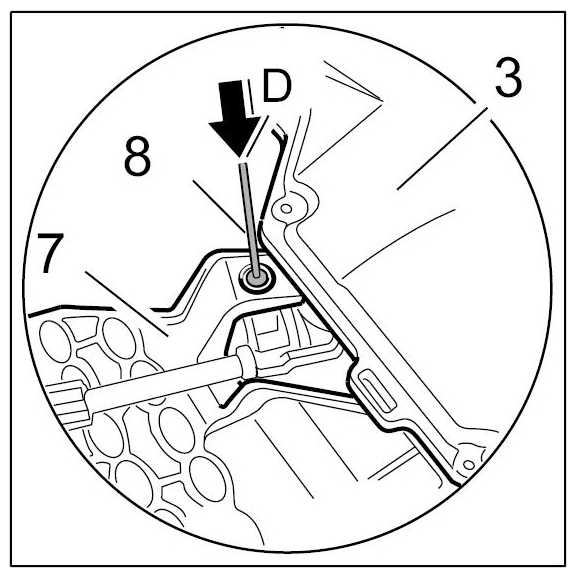

4. 1.4. Insert pop rivet -8- and rivet lock retaining bracket -7- to the door lock -3- from the rear -arrow D- ). Hand riveting tool for pop rivets NR.124-1

  Fig 6: Inserting Pop Rivet 8 And Rivet Lock Retaining Bracket 7 To Door Lock
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install door lock.
1. 2.1. Lay wiring harness -9- as shown.

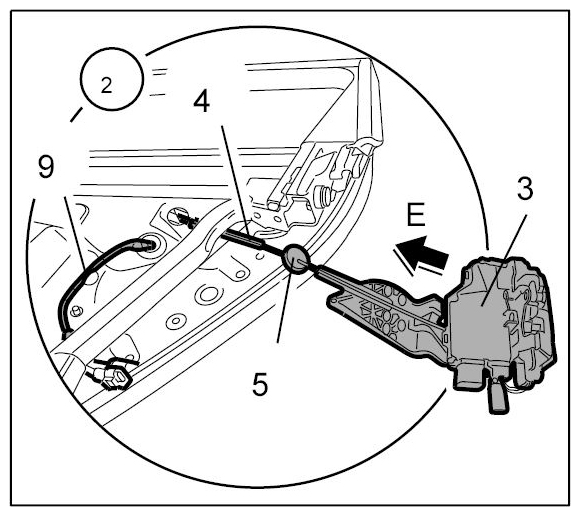

2. 2.2. Pass bowden cable -4- through door sub-frame, insert door lock -3- (-Arrow E- ) and fit the grommet -5- .

  Fig 7: Passing Bowden Cable 4 Through Door Sub-Frame
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rivet the door lock.

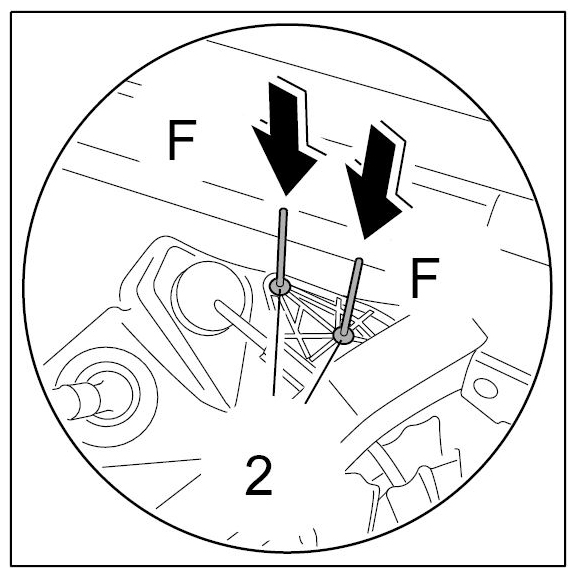

1. 3.1. Insert blind rivets -2- and rivet lock retaining bracket to door sub-frame -Arrows F- Hand riveting tool for blind rivets NR.124-1.

  Fig 8: Inserting Blind Rivets
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

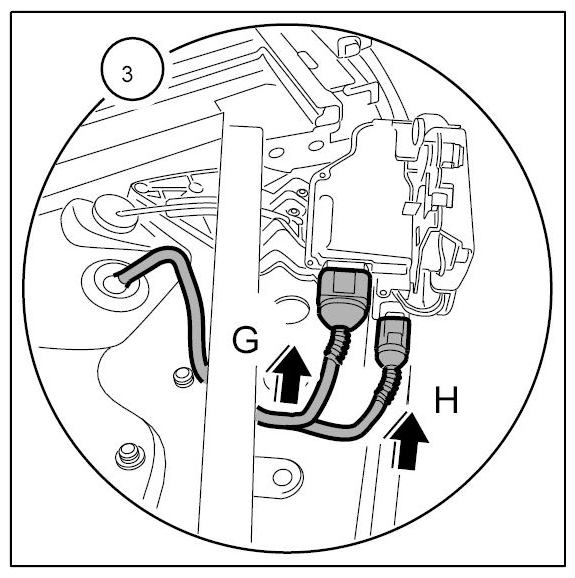

2. 3.2. Insert electrical plug connections 1 -Arrows G, H- until they click audibly into place.

  Fig 9: Inserting Electrical Plug Connections
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

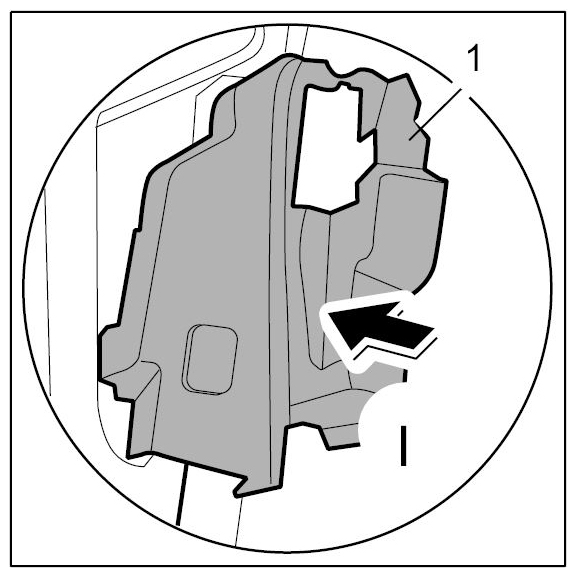

3. 3.3. Position the cover -1- and clip it into place -Arrow I- .

  Fig 10: Positioning Cover 1 And Clip It Into Place
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install rear door sub-frame → Installing Rear Door Sub-Frame .
