Installing Rear Door Sub-Frame

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

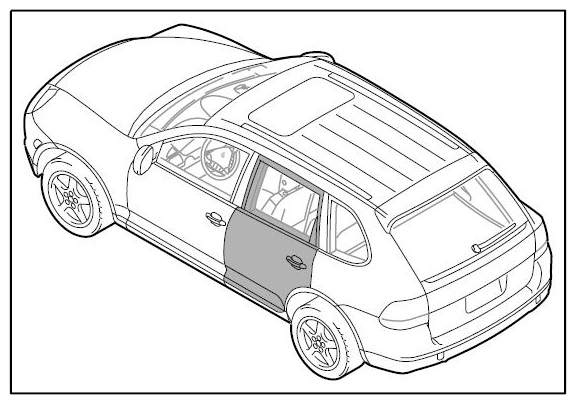

Fig 1: Identifying Rear Door Sub-Frame

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Move adjustable fastening elements to their home position.
Information

The screw elements have left-handed threads.

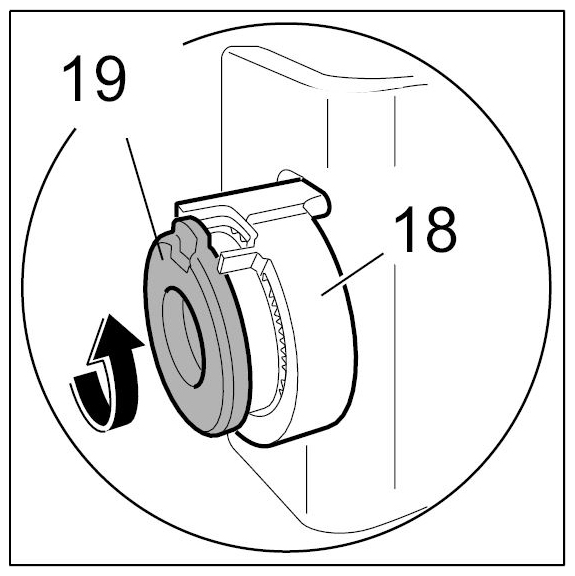

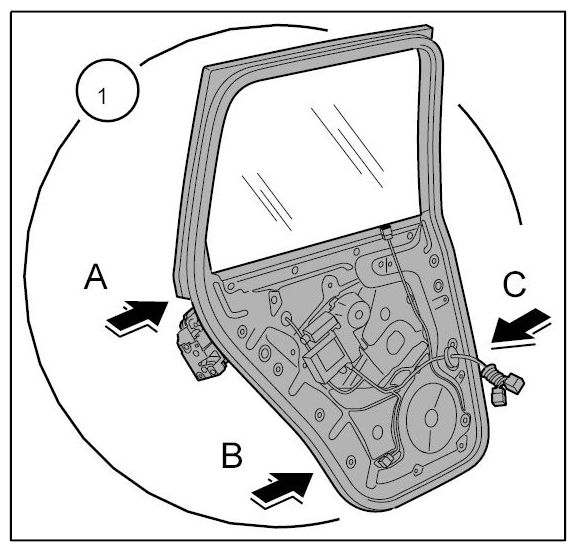

1. 1.1. Move the three adjustable fastening elements (-arrows A, B, C- ) on the door unit carrier to their home position. Screw the screw element -19- fully into the basic element -18- .

  Fig 2: Moving Three Adjustable Fastening Elements
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 3: Moving Screw Element
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Open basic door frame.
Engaging door unit carrier on basic door frame
1. 3.1. Push the plug connection inward through the door aperture and press in the rubber sleeve -10- from inside into the door aperture.

  Fig 4: Installing Rear Door Sub-Frame
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

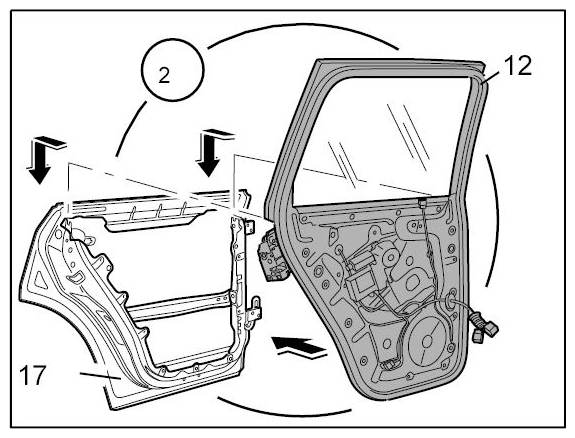

2. 3.2. Mount the door sub-frame -12- on the basic door frame -17- .

  Fig 5: Mounting Door Sub-Frame 12 On Basic Door Frame
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

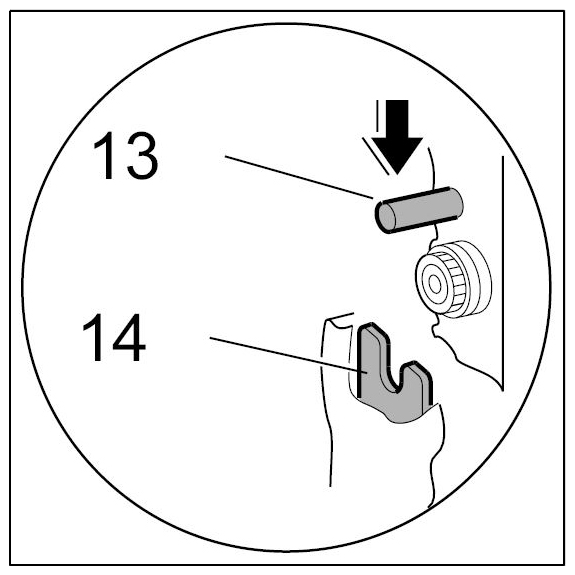

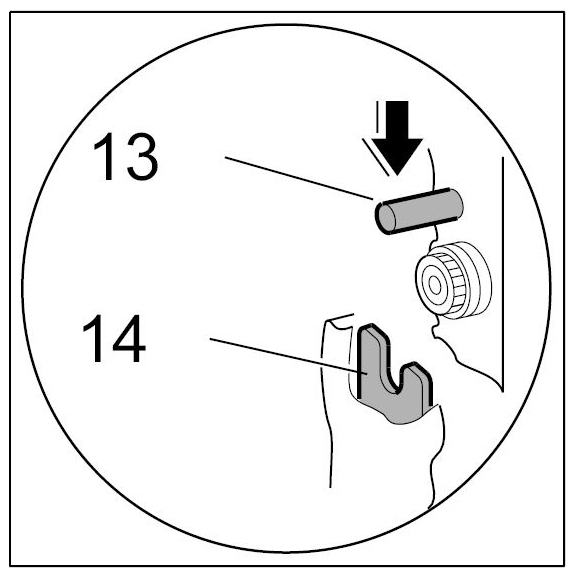

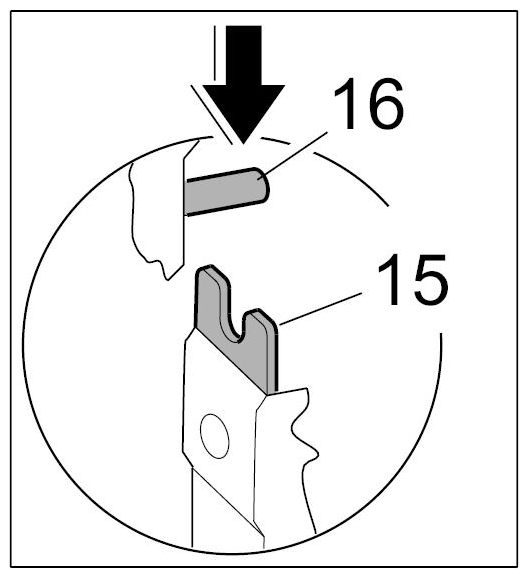

3. 3.3. Insert guide pins -13- and -16- into the holding slots -14- and -15- .

  Fig 6: Inserting Guide Pins 13 And 16 Into Holding Slots (1 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 7: Inserting Guide Pins 13 And 16 Into Holding Slots (2 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fix door unit carrier to basic door frame, link up electrical plug connection and tighten lock.

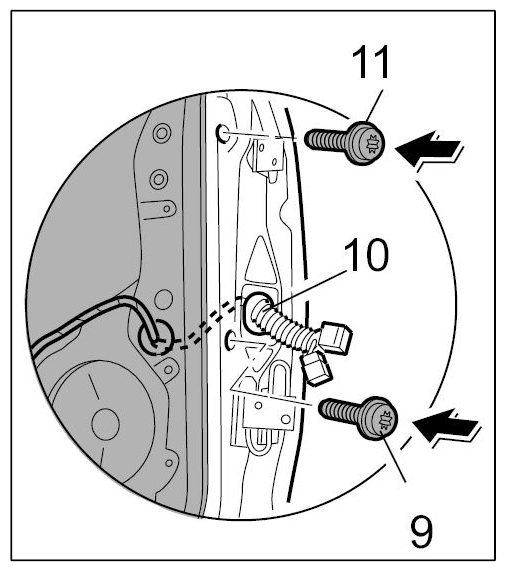

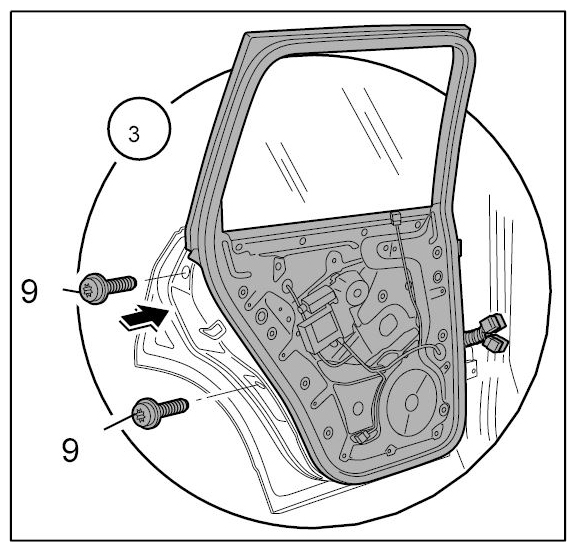

1. 4.1. Fix the door sub-frame to the basic door frame by screwing in the fastening screws -9- and -11- . The fastening screws should only make light contact.

  Fig 8: Fixing Door Sub-Frame To Basic Door Frame
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 9: Locating Subframe Bolts
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 4.2. Connect electric push-on connector -6- .

  Fig 10: Installing Rear Door Sub-Frame
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

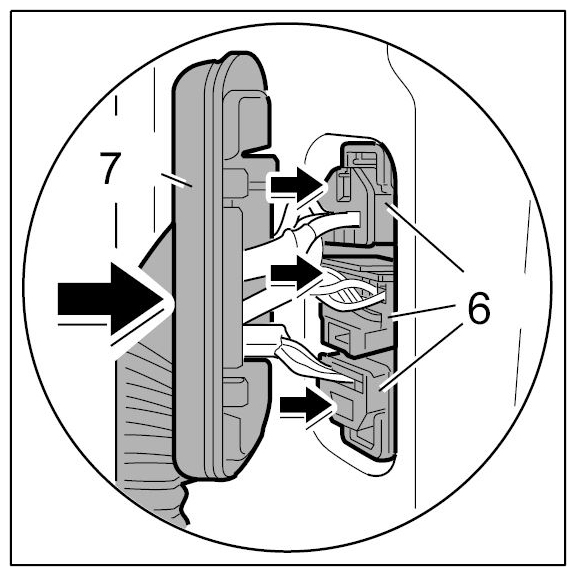

3. 4.3. Press on the rubber sleeve -7- between the door and B-pillar.

  Fig 11: Installing Rear Door Sub-Frame
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

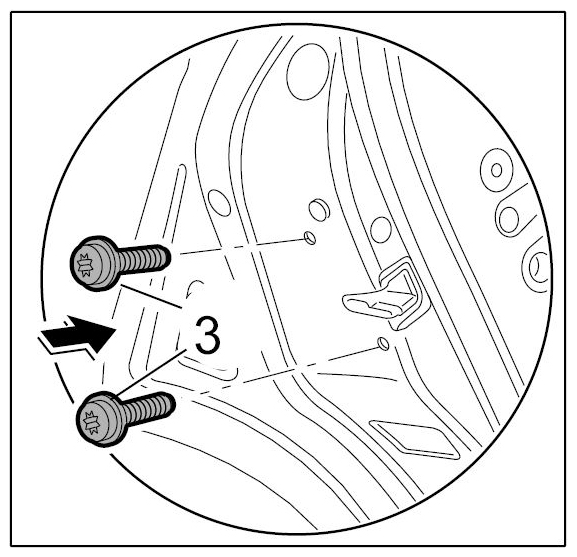

4. 4.4. Screw in new fastening screws -3- on the door lock and tighten to the specified tightening torque. → Tightening torque: 20 Nm (15 ftlb.)-2 Nm (-1.5 ftlb.)

  Fig 12: Locating Door Lock Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjust door unit carrier.
1. 5.1. The fastening screw -11- secures the front bearing position (holding slot -15- for guide pin -16- ). This bearing point cannot then be adjusted!

  Fig 13: Adjusting Door Unit Carrier
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 5.2. Close the door carefully.
  Information
  - The figures showing the gap dimensions can be found in the section entitled → Diagram of gap dimensions.

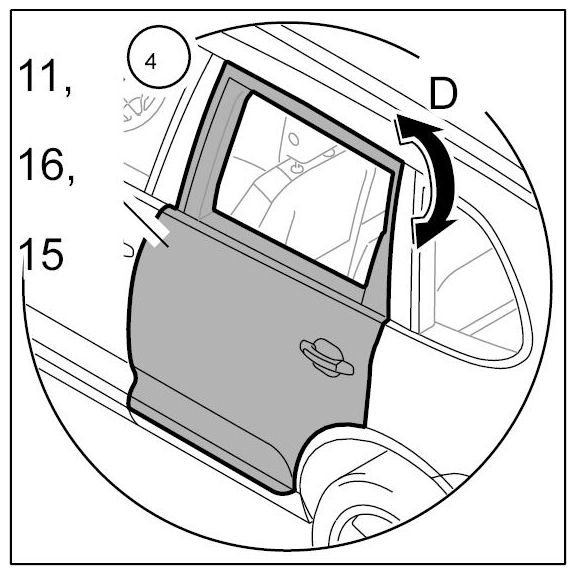

3. 5.3. The window frame (door sub-frame) must be adjusted with respect to the roof frame and B-pillar (-arrow D- ). The pivoting points in this case are the holding slots -14- , -15- and the guide pins -13- and -16- . Adjust the gap dimensions on the door sub-frame. → Test and adjustment value: 5 mm

  Fig 14: Locating Door Sub-Frame Gap Dimensions
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 15: Locating Window Frame (Door Sub-Frame) Guide Pins (1 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 16: Locating Window Frame (Door Sub-Frame) Guide Pins (2 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 5.4. Tighten fastening screws -9, 11- to the specified tightening torque. → Tightening torque: 33 Nm (24 ftlb.)+/-3 Nm (+/-2 ftlb.)

  Fig 17: Locating Tighten Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fasten door unit carrier.

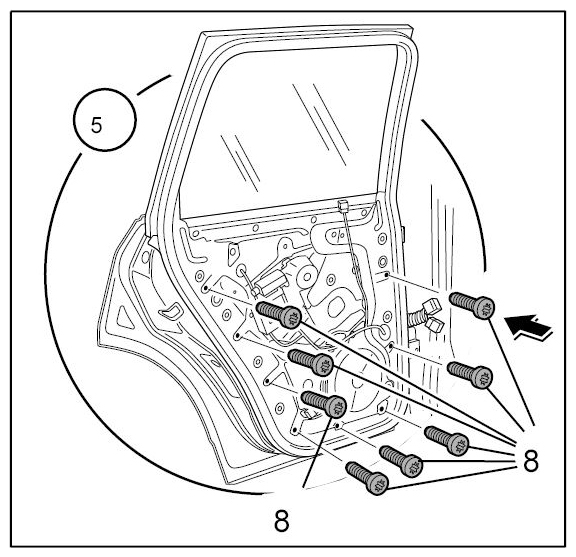

1. 6.1. Screw in fastening screws -8- and tighten to the specified tightening torque. → Tightening torque: 6 ftlb.+1.5 ftlb.

  Fig 18: Locating Door Unit Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip in covers of front assembly openings.

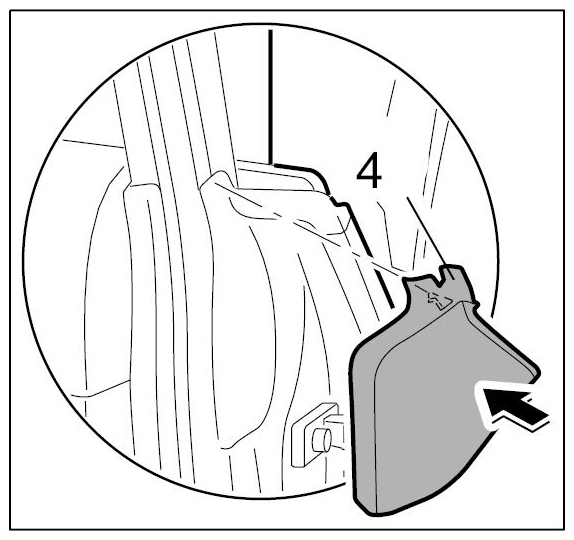

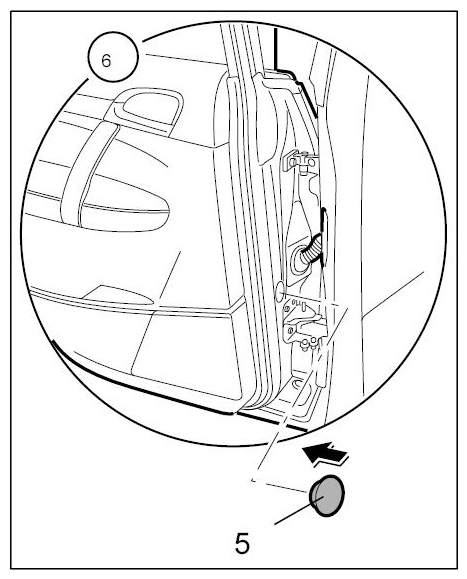

1. 7.1. Clip in the top and bottom assembly opening covers -4- and -5- .

  Fig 19: Locating Assembly Opening Covers (1 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 20: Locating Assembly Opening Covers (2 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip in rear assembly opening covers and connecting KESSY wiring harness.
1. 8.1. For all vehicles:

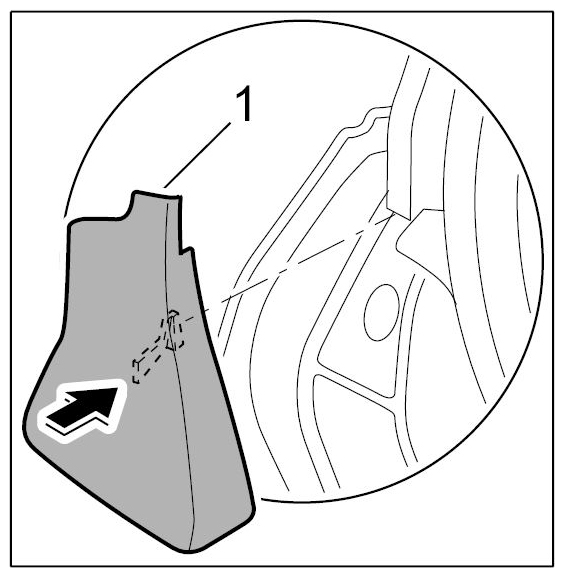

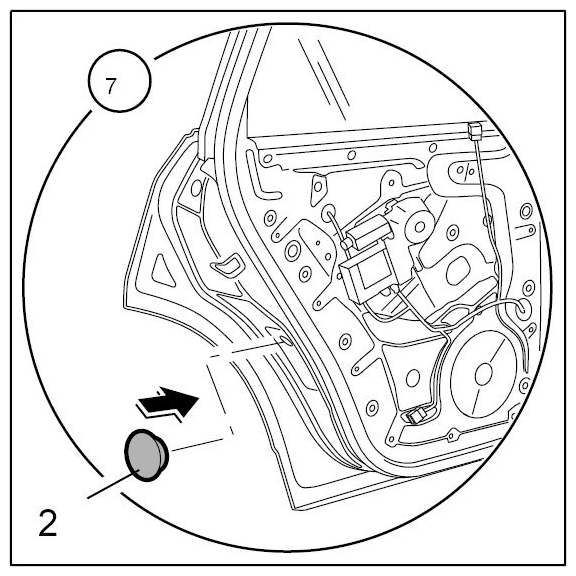

  clip in the top and bottom assembly opening covers -1- and -2- .

  Fig 21: Locating Top And Bottom Assembly Opening Covers (1 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 22: Locating Top And Bottom Assembly Opening Covers (2 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 8.2. Also for vehicles with KESSY control module:

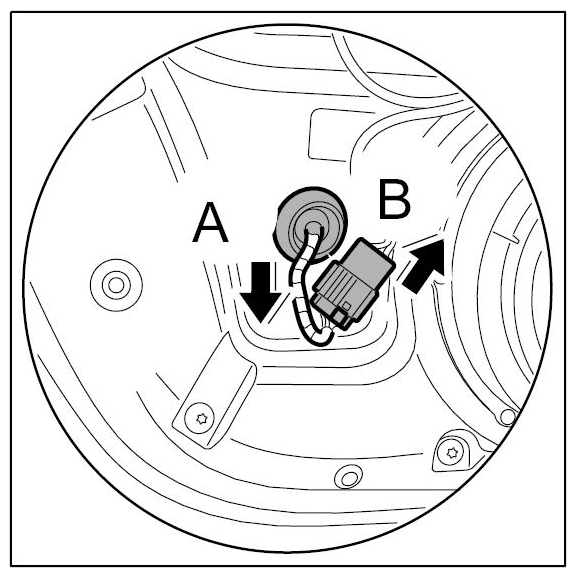

  Pull KESSY wiring harness in through the opening. Install rubber sleeve in the unit carrier until it engages completely (-arrow A- ).

  Insert connector into the socket (-arrow B- ) until it clicks into place.

  Fig 23: Inserting Connector Into Socket
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
