Installing Fuel Line - Fuel Pump To Tank

Information

• The direction of travel is shown by an arrow with the designation "x"

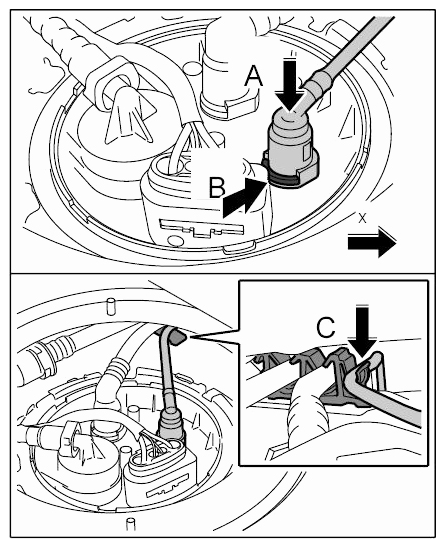

1. Push the line through forwards -Arrow A-  , connect to the fuel pump -Arrow B-  and fasten with a new hose clamp -C-  .
   Fig 1: Installing Fuel Line (Fuel Pump To Tank)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Press line into holder and close the holder -Arrow D-  until the locking tab can be felt to engage.

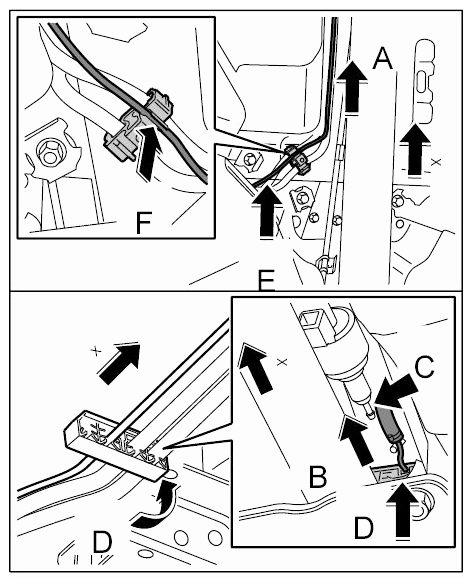

3. Push the line through up along the tank -Arrow E-  and press into holder -Arrow F-  until it can be felt to engage.
4. Push line onto tank connection -Arrow A-  until retaining clip -Arrow B-  is felt to engage.
   Fig 2: Pushing Line Onto Tank Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Press fuel line into the holder -Arrow C-  until it is felt to engage.

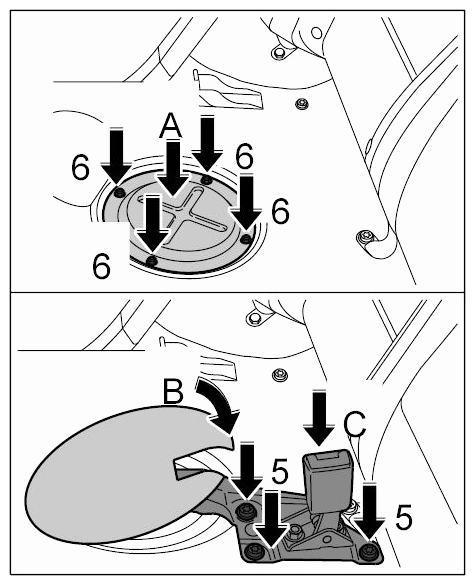

6. Install cover -Arrow A-  and screw down with the fastening nuts -Arrows 6-. → Tightening torque: 6.5 ftlb.
   Fig 3: Pressing Fuel Line Into Holder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Fold back floor carpeting -Arrow B-  .
8. Install bracket with seat-belt buckle -Arrow C-  and screw down using fastening screws -5-  . → Tightening torque: 37 ftlb.

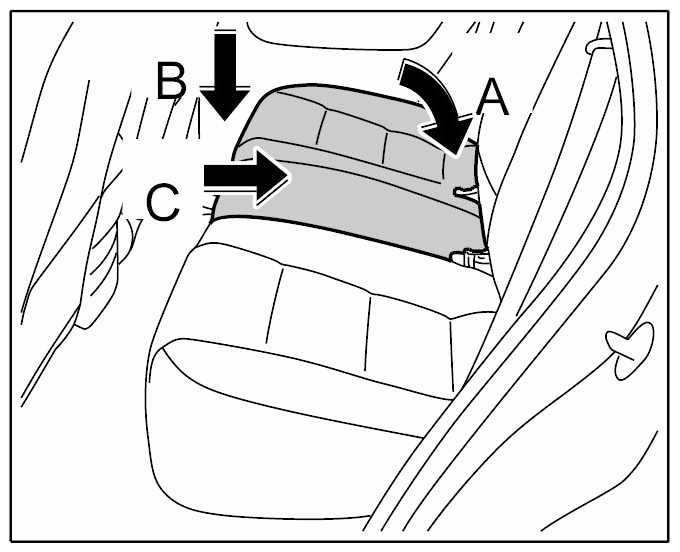

9. Fold back rear seat -Arrow A-  , press front edge downwards -Arrow B-  and push to rear -Arrow C-  .
   Fig 4: Installing Bracket And Seat-Belt Buckle

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

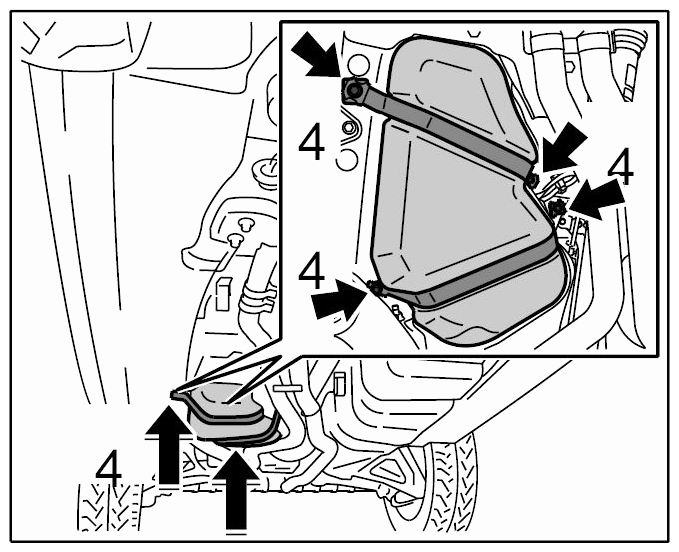

10. Press fuel tank upward -arrow-  and tighten the fastening screws -Arrows 4-  . → Tightening torque: 24 ftlb.
    Fig 5: Locating Fuel Tank Fastening Screws

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

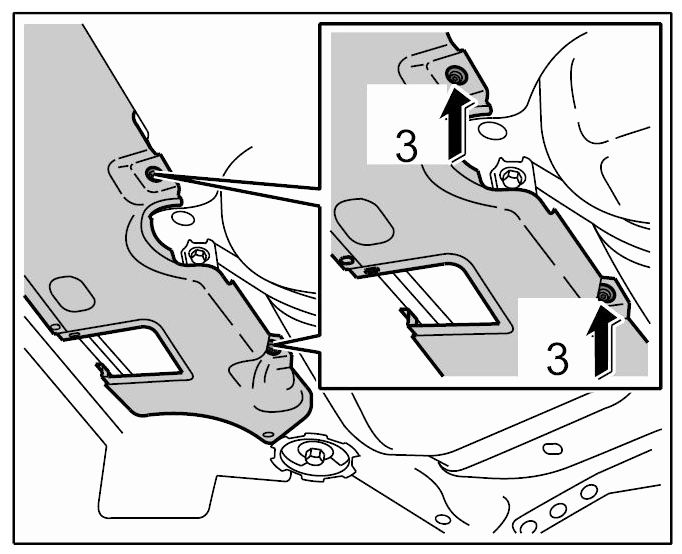

11. Secure cover with fastening screws -Arrows 3-  . → Tightening torque: 1.5 ftlb.
    Fig 6: Locating Cover Fastening Screws

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
12. Fill the fuel line. → Installing Fuel Line - Fuel Pump To Tank
