Installing Fuel Line - Fuel Pump To Tank

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Install fuel line.

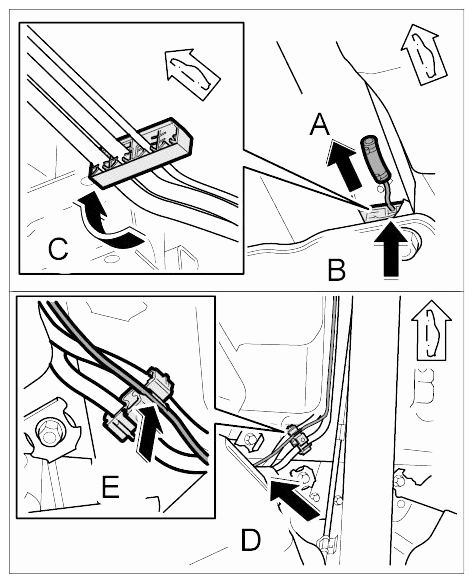

1. 1.1. Push fuel line through toward the front -arrow A- .
2. 1.2. Press the fuel line into the line bracket -arrow B- and close the line bracket -arrow C- until the locking lug engages securely.
3. 1.3. Push fuel line upwards through along the tank -arrow D- and press into the line bracket -arrow E- until the fuel line engages securely.

  Fig 1: Installing Fuel Line
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

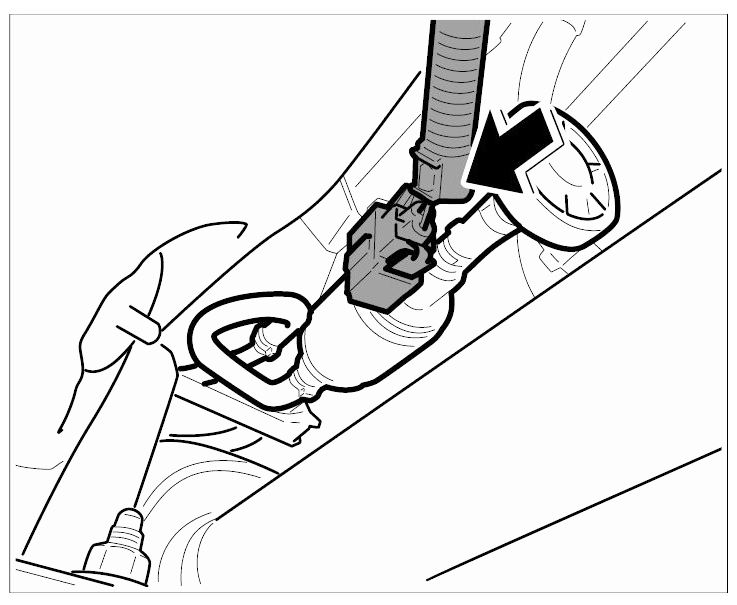

Connect fuel line with the fuel hose onto the fuel pump -arrow- and secure with a new hose clamp -1- .

Fig 2: Securing Fuel Line On Fuel Pump
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

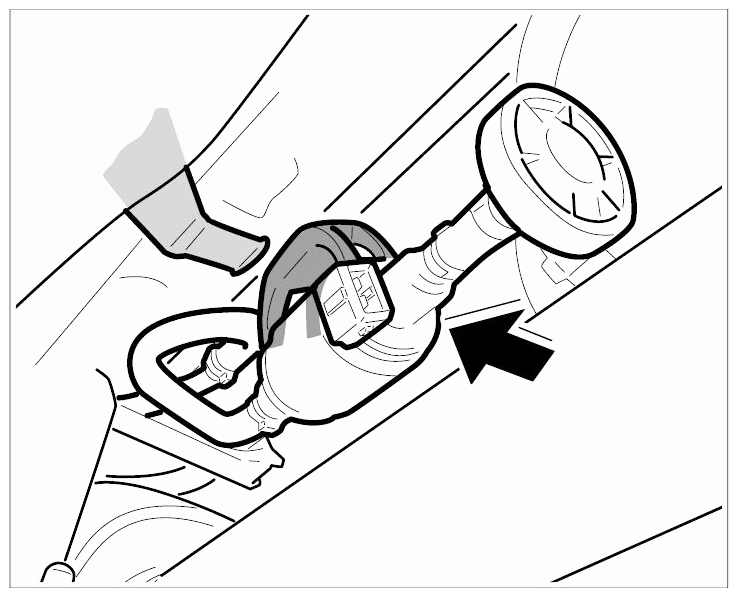

Slide fuel pump together with the rubber sleeve onto the holder -arrow- .

Fig 3: Sliding Fuel Pump And Rubber Sleeve Onto Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install cover plate.

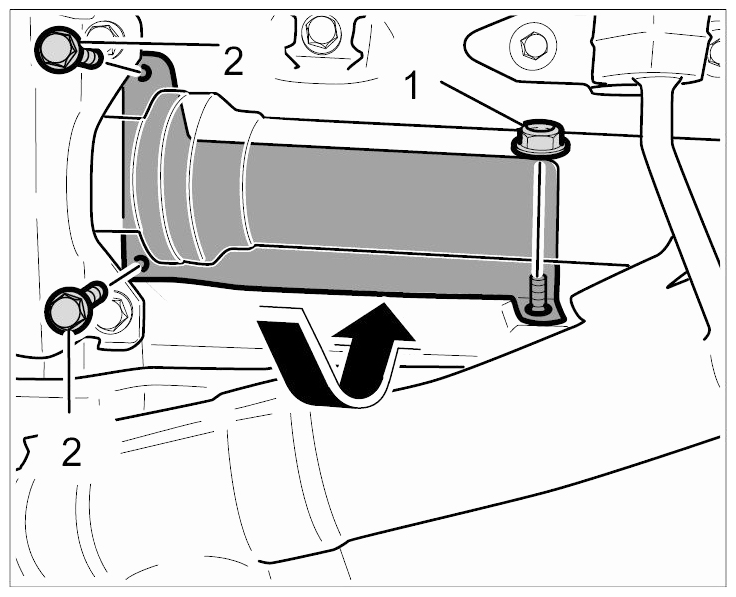

1. 4.1. Insert cover plate -arrow- and screw down with the fastening screws -2- . → Tightening torque: 10 Nm (7.5 ftlb.)
2. 4.2. Tighten fastening nut -1- . → Tightening torque: 10 Nm (7.5 ftlb.)

  Fig 4: Installing Cover Plate
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

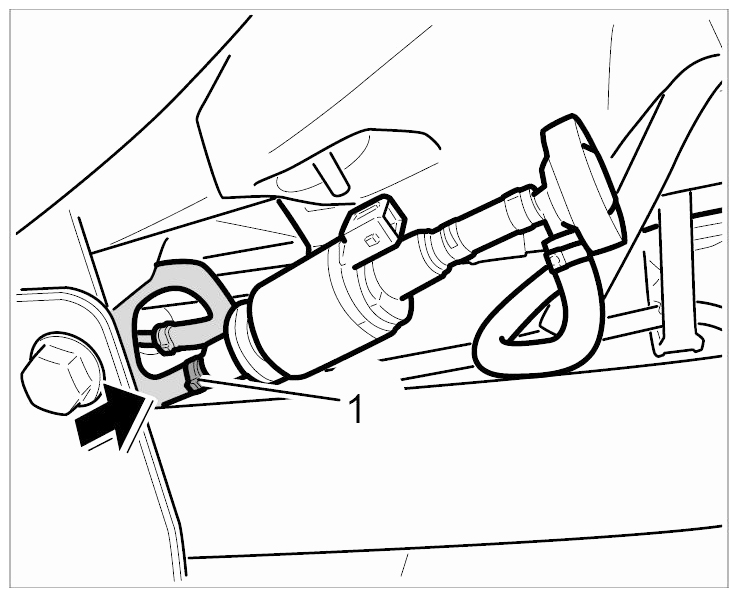

Plug in connector on the fuel pump -arrow- until the connector engages securely.

Fig 5: Plugging In Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

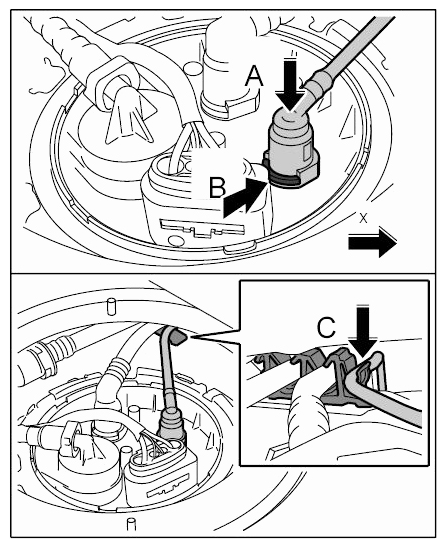

Secure fuel line on tank.
1. 6.1. Connect plug-in coupling onto tank connection -arrow A- until the retaining clip -arrow B- engages securely.
2. 6.2. Press fuel line into the holder -arrow C- until the fuel line engages securely.

  Fig 6: Securing Fuel Line On Tank
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Information

The fastening screws for the seat-belt buckle bracket must be replaced.

The removed fastening screws must not be re-used.
Install tank cut-out cover.

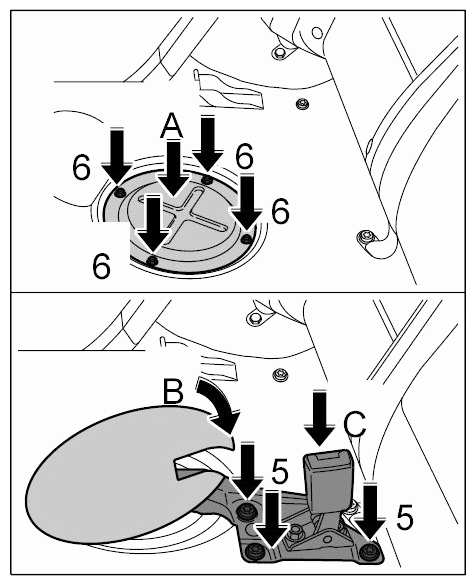

1. 7.1. Insert tank cut-out cover -arrow A- and screw down with the fastening nuts -arrows 6- . → Tightening torque: 9 Nm (6.5 ftlb.)
2. 7.2. Fold back the carpeted floor -arrow B- .
3. 7.3. Position bracket together with the seat-belt buckle -arrow C- and screw down with the fastening screws -5- . → Tightening torque: 50 Nm (37 ftlb.)

  Fig 7: Fitting Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

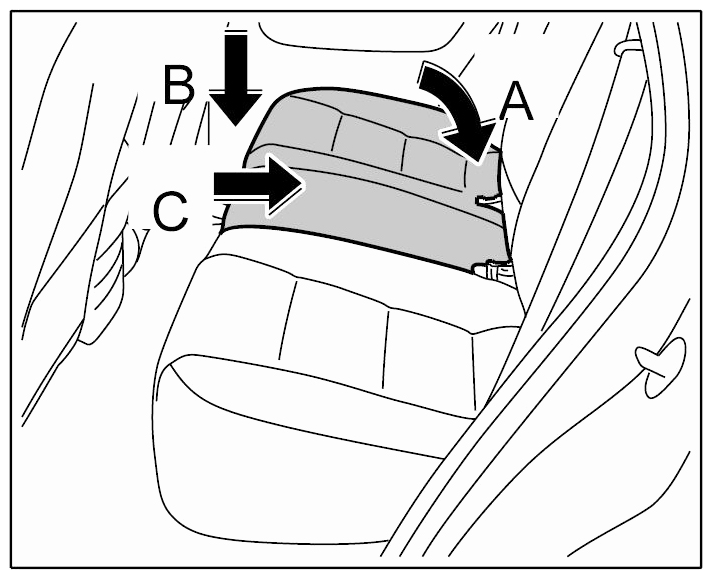

Fold back the right rear seat -arrow A- , press downward at the front edge -arrow B- and push to the rear -arrow C- .

Fig 8: Folding Back Right Rear Seat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fill fuel line. → Filling The Fuel Line
