Removing Cover For Centre Console

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

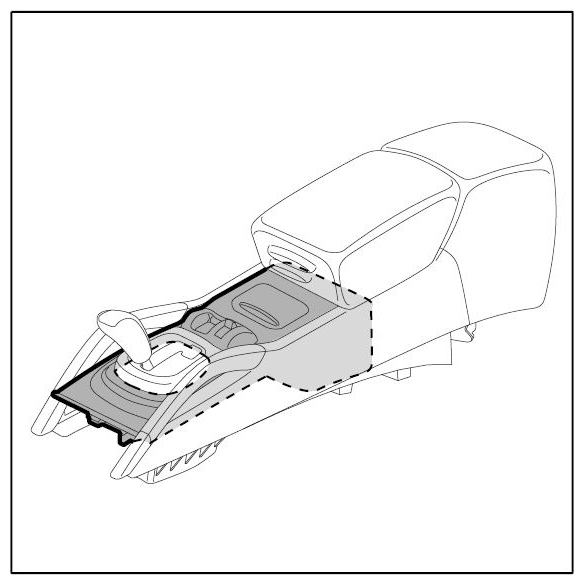

Fig 1: Identifying Centre Console Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Vehicles with manual transmission: remove shift lever knob → REMOVING SHIFT LEVER KNOB .
Remove cover for lock latch.
1. 2.1. Fold up middle armrest -2- .
2. 2.2. Unscrew fastening screws -3- .
3. 2.3. Remove cover for lock latch -4- .

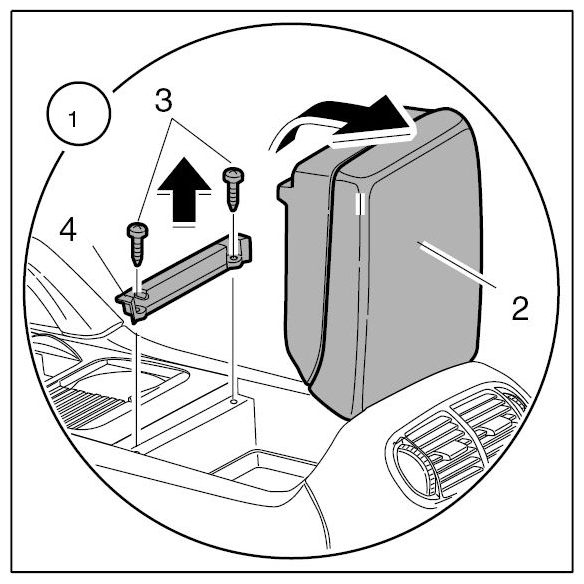

  Fig 2: Removing Lock Latch Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip cover for centre console.
1. 3.1. Carefully fold up cover for centre console -1- until the retaining lugs -A- can be pulled out from the guides.
2. 3.2. Pull cover for centre console -1- by the retaining lugs -A- from the guides.

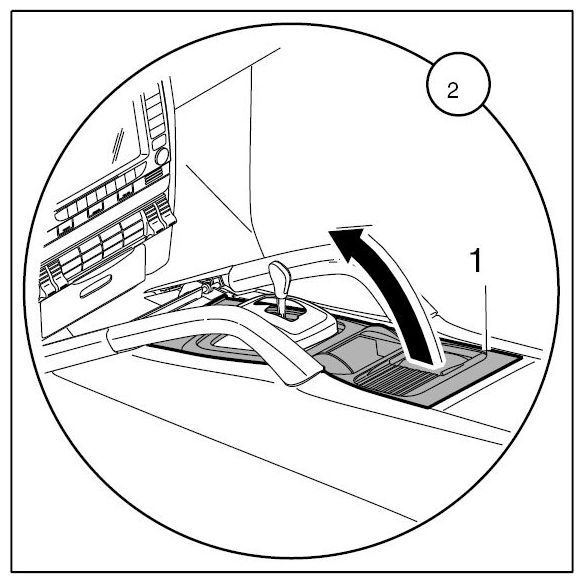

  Fig 3: Unclipping Centre Console Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

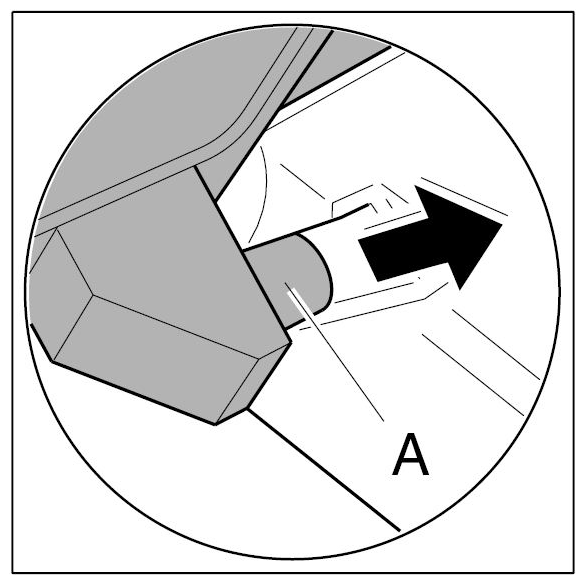

  Fig 4: Unclipping Centre Console Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

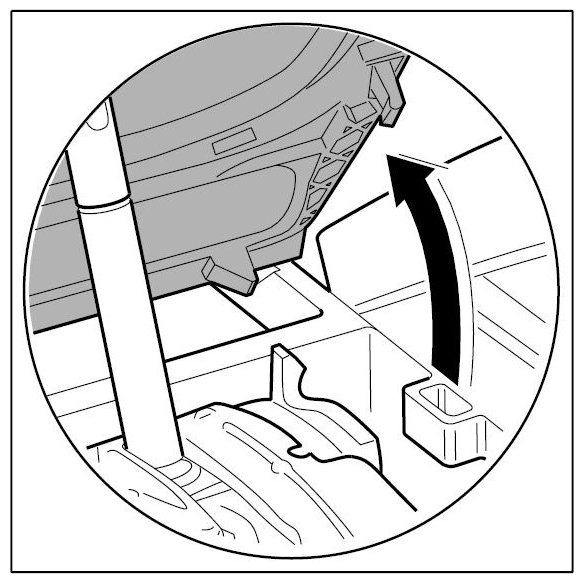

  Fig 5: Removing Centre Console Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect plug connection.
1. 4.1. Press in the plug locking tabs -5- (-arrow B- ).
2. 4.2. Pull off plug -5- (-arrow C- ).

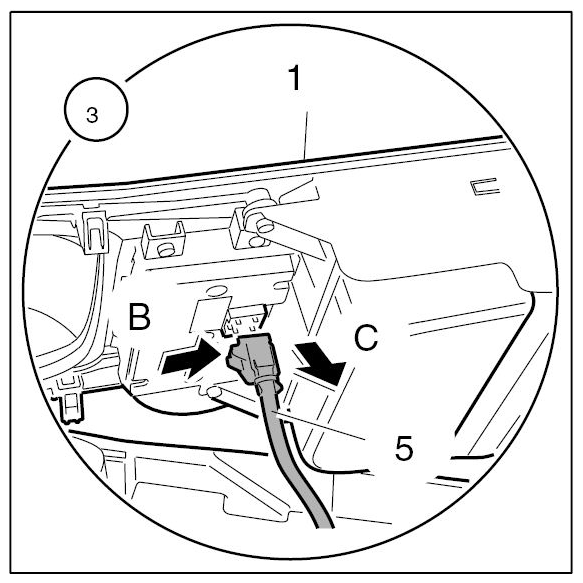

  Fig 6: Removing Plug Locking Tabs
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove cover for centre console.
