Removing Shift Lever Knob

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

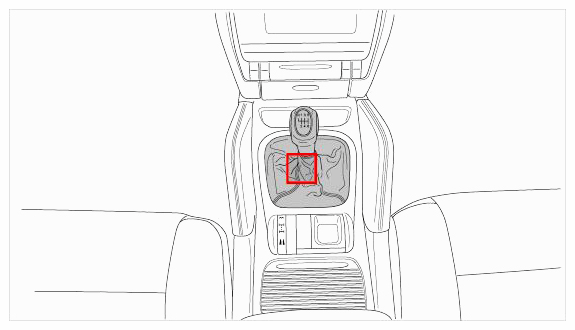

Put shift-lever knob in neutral position.

Fig 1: Overview Of Shift-Lever Knob

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

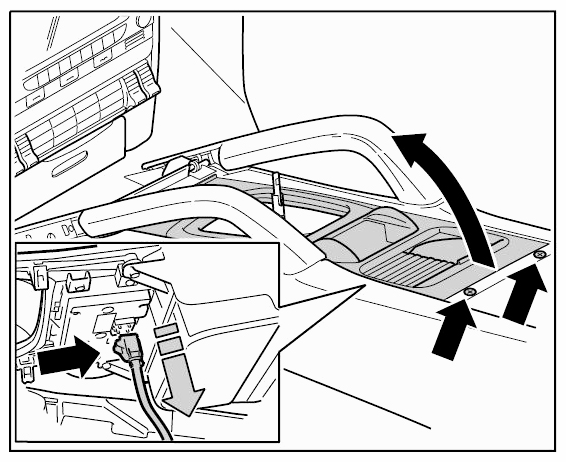

Unscrew fastening screws on centre console cover -right arrows- , tip cover up and back -curved arrow- and separate cable connection -inset- .

Fig 2: Removing Centre Console Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

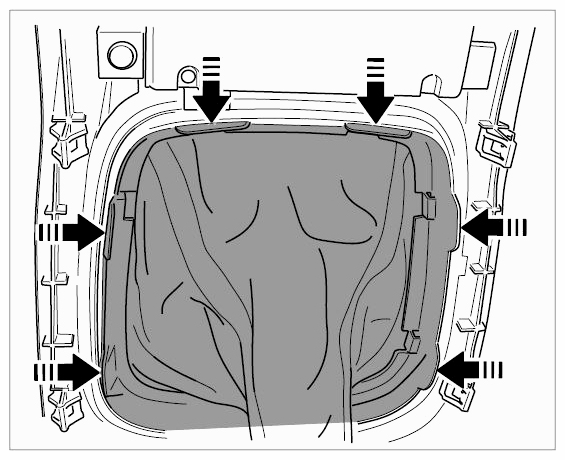

Press leather boot out of centre console cover from below -arrows- .

Fig 3: Pressing Leather Boot Out Of Centre Console Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

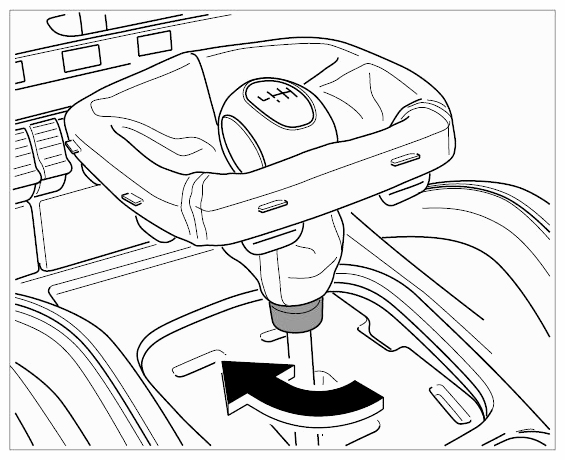

Unlock shift-lever knob. To do this, turn the grooved end piece on the gearshift lever clockwise -arrows- by a quarter of a turn until it engages.

Fig 4: Unlocking Shift-Lever Knob
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Do not pull shift-lever knob off by pulling on the leather boot.

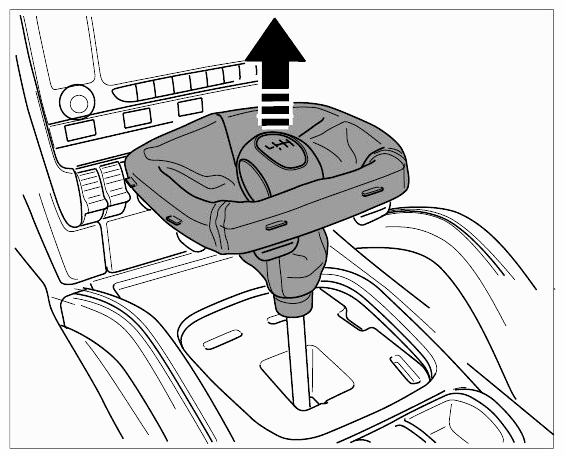

Grasp the shift-lever knob at the top end and pull off -arrow- .

Fig 5: Removing Shift-Lever Knob
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
