Installing Cover For Centre Console

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

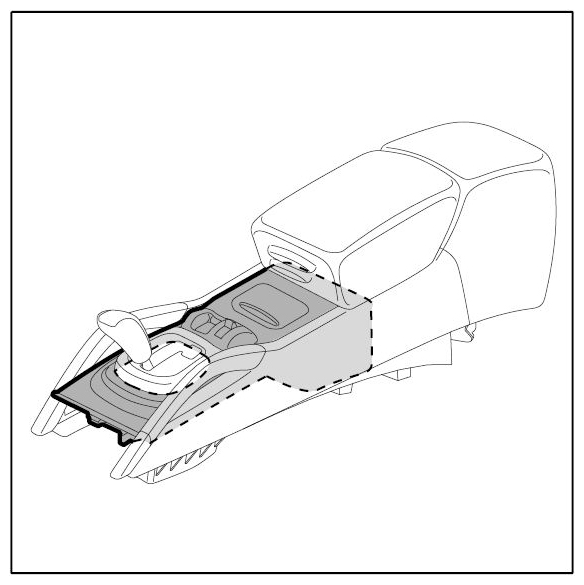

Fig 1: Identifying Centre Console Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Push on the electrical plug connection.

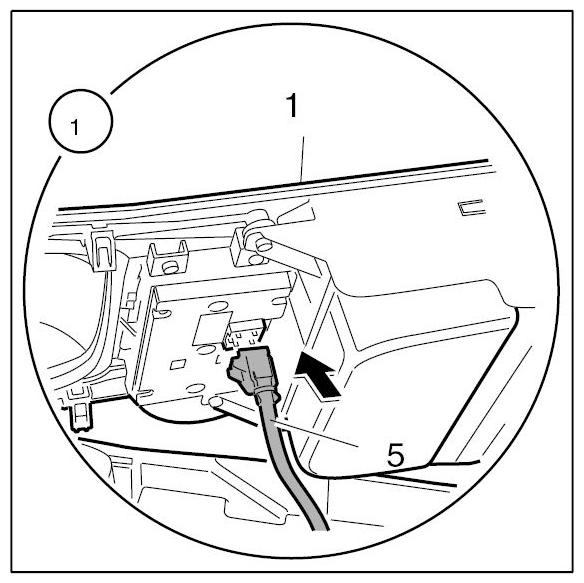

1. 1.1. Connect plug -5- to the cover.

  Fig 2: Connecting Electrical Plug Connection
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position cover for centre console.

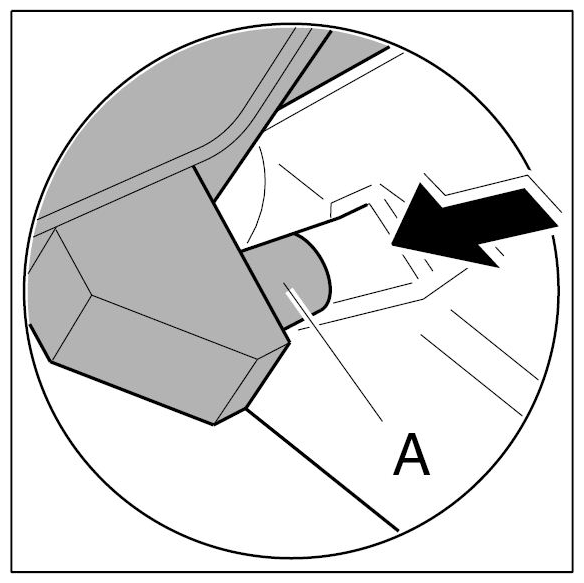

1. 2.1. Hook the tabs -A- into the guides.

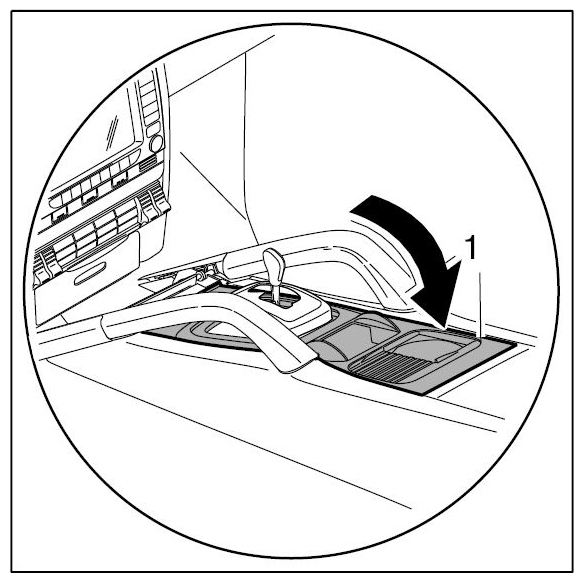

2. 2.2. Swivel the cover for the centre console -1- downwards.

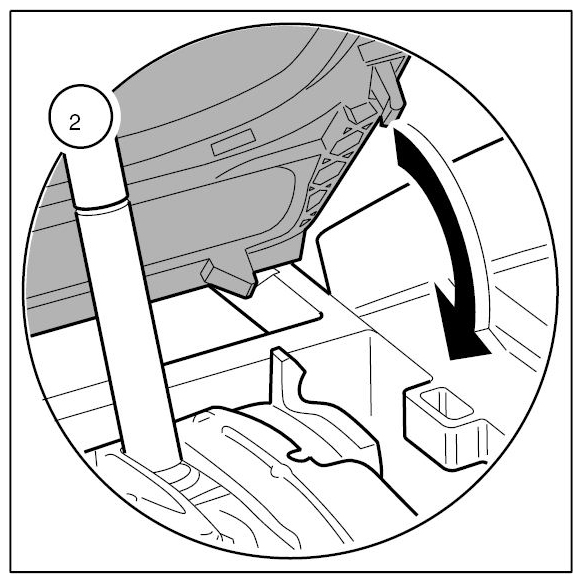

  Fig 3: Positioning Cover For Centre Console
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 4: Positioning Cover For Centre Console
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 5: Positioning Cover For Centre Console
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

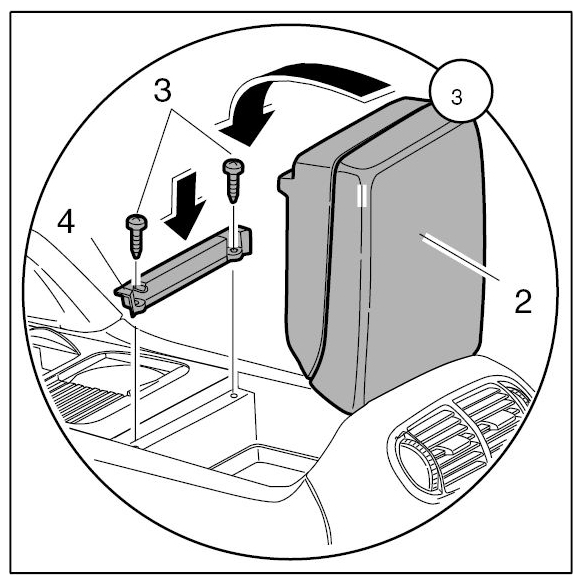

Install cover for lock latch.
1. 3.1. Position cover for lock latch -4- .
2. 3.2. Screw in fastening screws -3- and tighten to the specified torque. → Tightening torque: 1.5 ft lbs.+0.5 ft lbs.
3. 3.3. Fold down middle armrest -2- .

  Fig 6: Installing Cover For Lock Latch
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Vehicles with manual transmission: install shift lever knob → INSTALLING SHIFT LEVER KNOB .
