Installing Shift Lever Knob

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

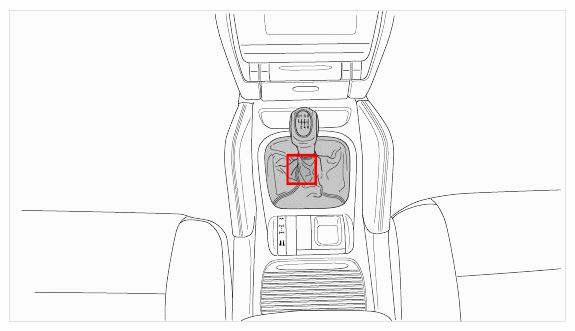

Fig 1: Overview Of Shift-Lever Knob

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

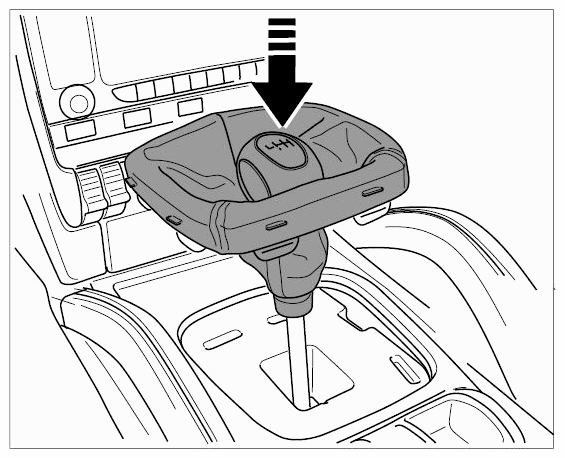

Insert the shift lever knob from above until it engages.

Fig 2: Assembling Shift-Lever Knob
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

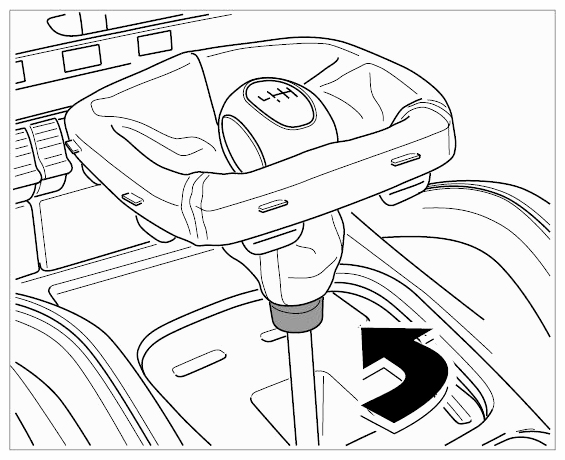

Lock shift-lever knob. To do this, turn the grooved end piece on the gearshift lever anti-clockwise -arrows- by a quarter of a turn until it engages.

Fig 3: Locking Shift-Lever Knob
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

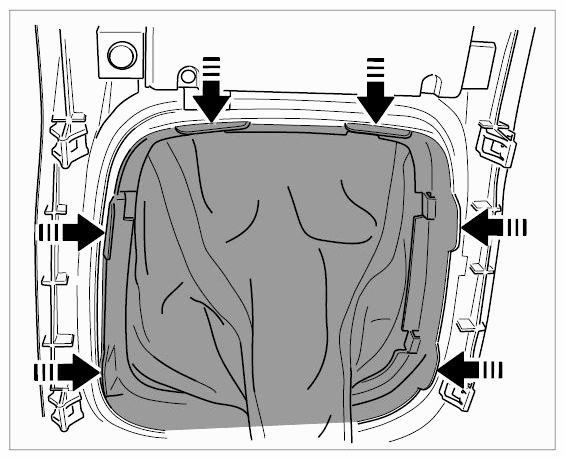

Fit leather boot into centre console cover from above.

Fig 4: Fitting Leather Boot Into Centre Console Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

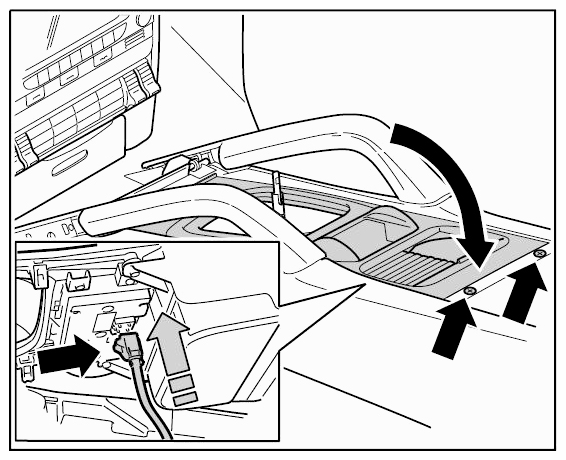

Position cable connection -inset- on the underside of the centre console cover.

Fig 5: Inserting Cable Connection Centre Console Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tip centre console cover backwards -curved arrow- and screw in fastening screws -right arrows- .
