Removing Armrest Release

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

If the lid cannot be opened, the lid release can be removed using a stop-gap measure. → EMERGENCY OPERATION OF RELEASE

In vehicles with phone handsets in the armrest, the entire armrest must be replaced. → 681737 REMOVING AND INSTALLING ARMREST FOR CENTRE CONSOLE

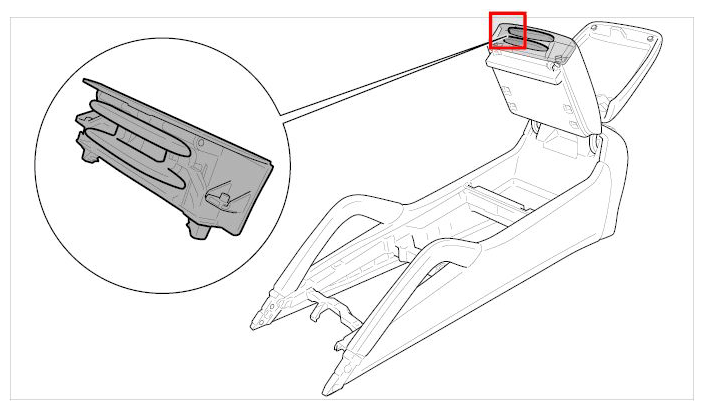

Fig 1: Identifying Armrest Release

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

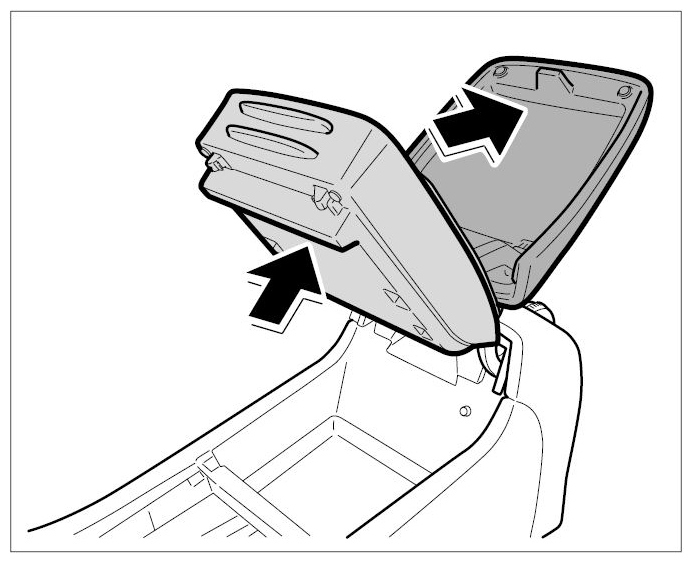

Release and open cover and shelf on armrest.

Fig 2: Releasing Armrest Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

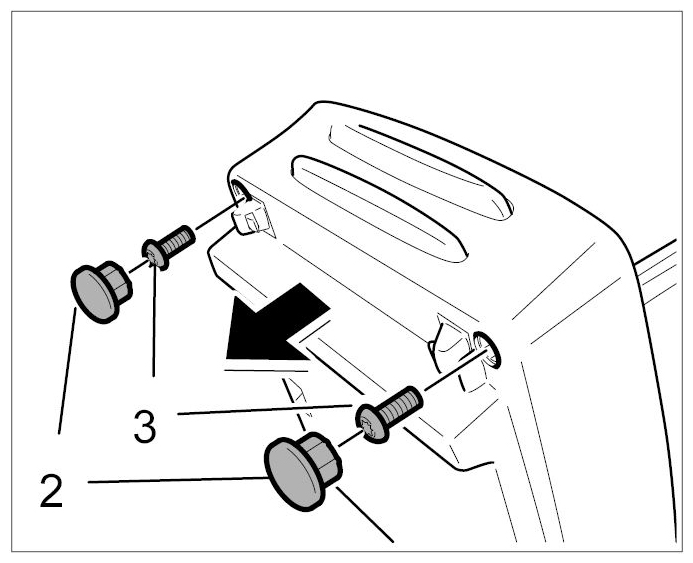

Pull off cap -2- and unscrew fastening screws -3- .

Fig 3: Unscrewing Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

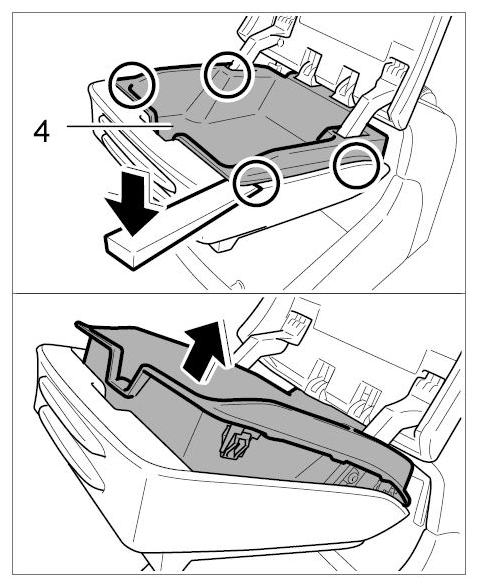

Unclip shelf -4- and swivel it upwards.

Fig 4: Removing Shelf Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

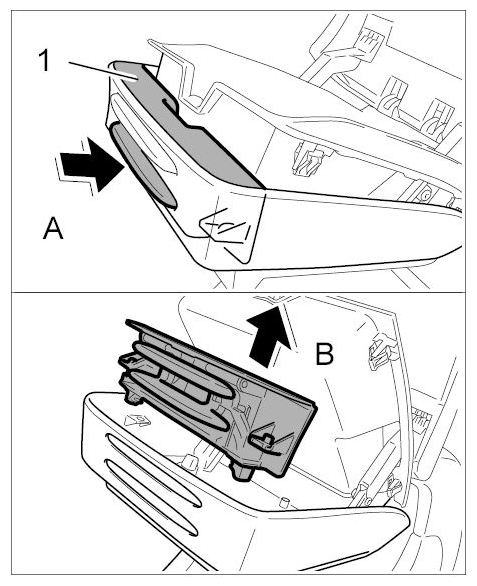

Remove release.

Fig 5: Removing Release
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Press lower release button -arrow A- and pull release -1- upwards -arrow B- to remove it.

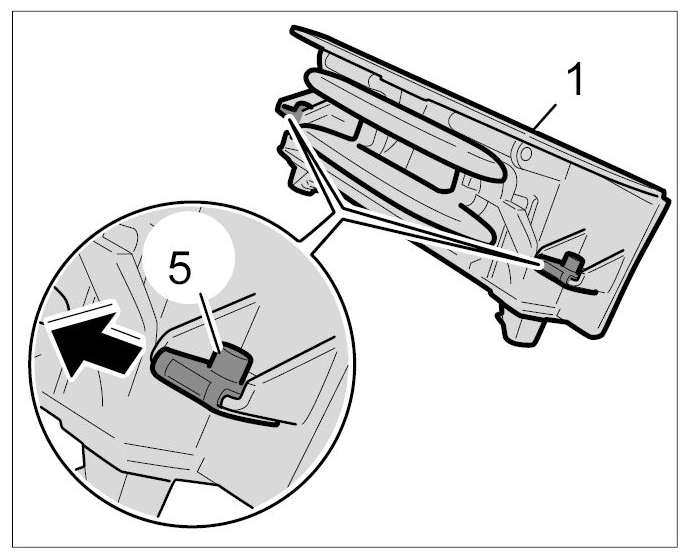

Remove fastening nuts -5- .

Fig 6: Removing Release Fastening Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
