Emergency Operation Of Release

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

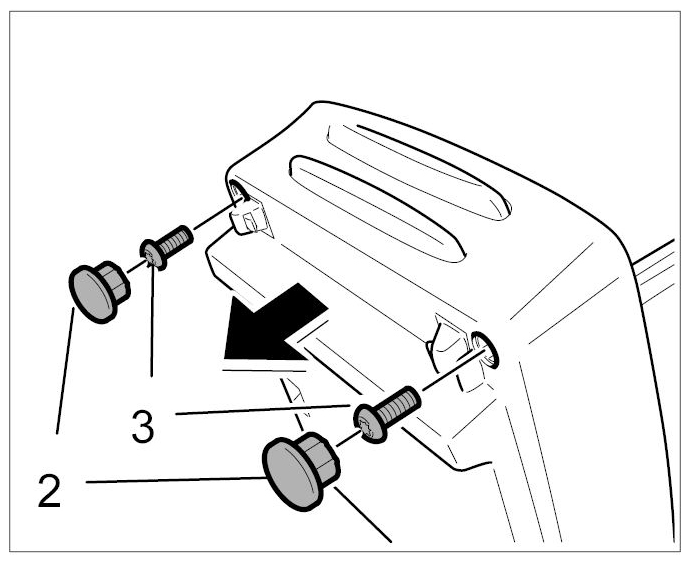

Pull off caps -2- and unscrew fastening screws -3- .

Fig 1: Unscrewing Shelf Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

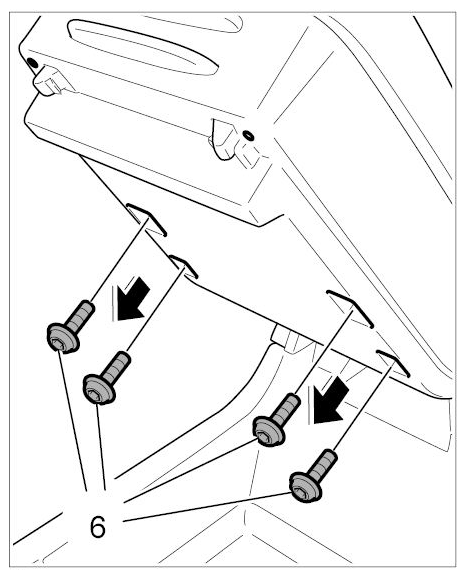

Unscrew fastening screws -6- .

Fig 2: Unscrewing Shelf Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip shelf.

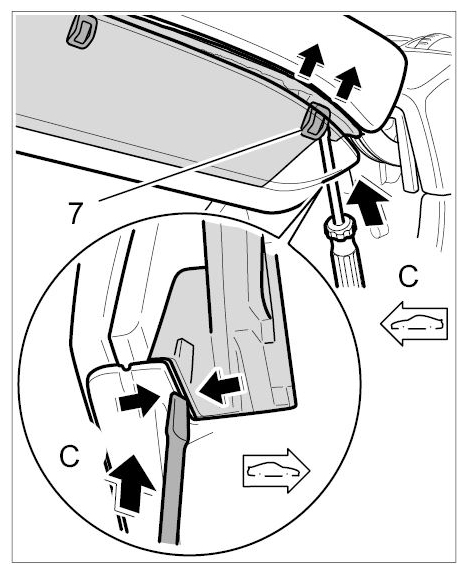

1. 3.1. Insert a screwdriver into armrest at the rear between the bottom half and the hinge -arrow C- and lever out the rear clip connection -7- .

  Fig 3: Removing Shelf Clip
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

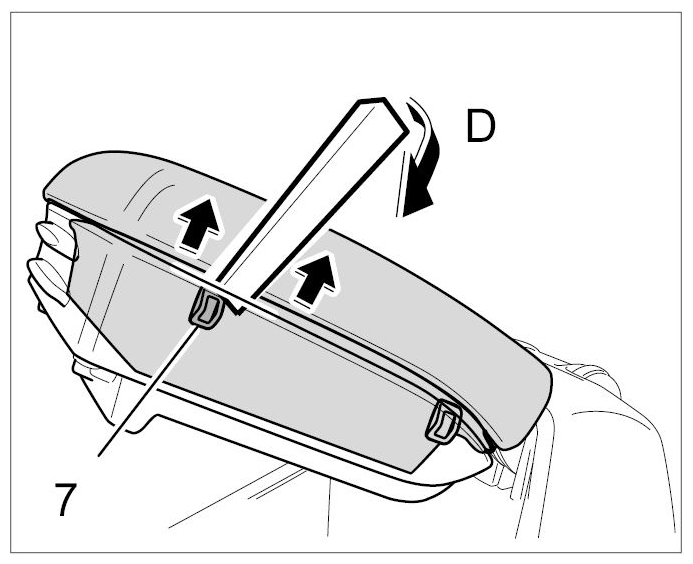

2. 3.2. Insert an assembly wedge into armrest between the bottom half and the shelf tray -arrow D- and lever out the front clip connection -7- .

  Fig 4: Inserting Assembly Wedge Into Armrest Between Bottom Half And Shelf Tray
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

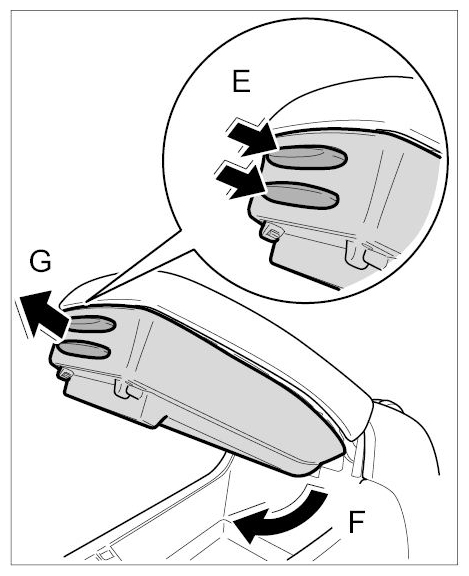

Remove bottom half.
1. 4.1. Operate release buttons -arrow E- .
  Swivel bottom half out -arrow F- and remove -arrow G- .

  Fig 5: Removing Bottom Half
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
