Removing (Inner) Rear Wheel Housing

Information

• Separating the side member involves cutting through the complete side member as well as the support attached to the outside.

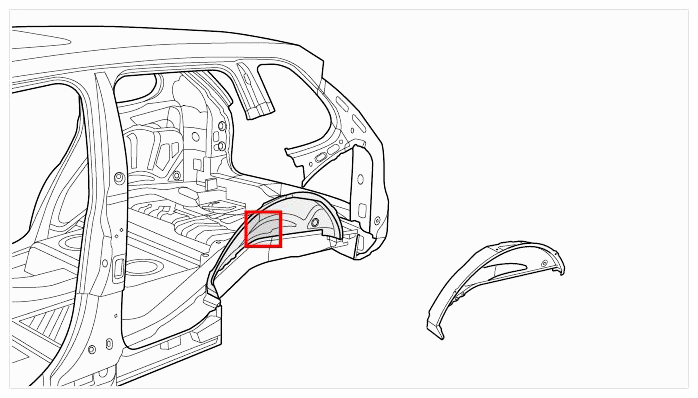

Fig 1: Rear Wheel Housing Component Location (Inner)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Remove rear side section. → Removing Rear Side Panel
2. Remove outer side member. → Removing Outer Lower Side Member
3. Remove lower side member reinforcement. → Removing Lower Side Member Reinforcement
4. Remove (outer) rear wheel housing. → Removing Rear Wheel Housing
5. Remove C-pillar reinforcement. → Removing C-Pillar Reinforcement

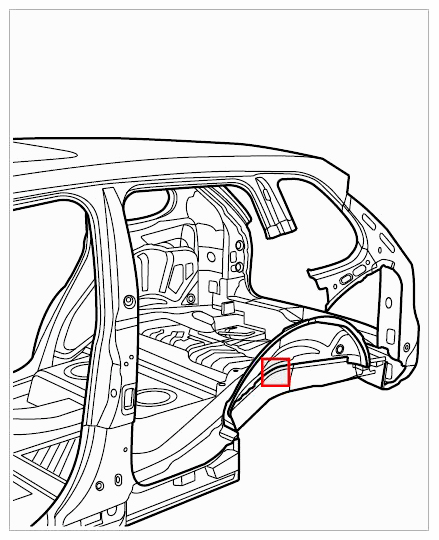

   Fig 2: Overview Of Front Wheel Housing - Outside

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Separate front wheel housing.
   1. 6.1. Mill off welded joints on the wheel housing using the spotweld cutter (areas -A and B-  ).

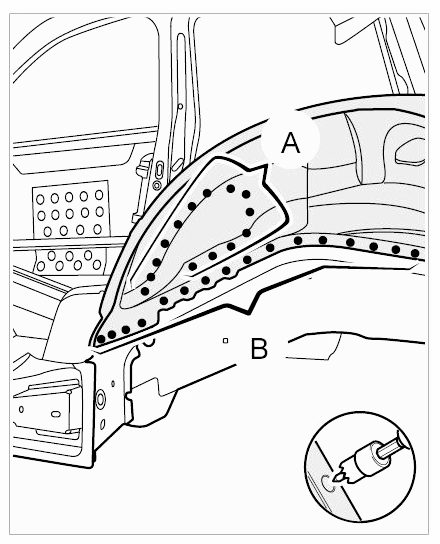

      Fig 3: Separating Welded Joints On Wheel Housing

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

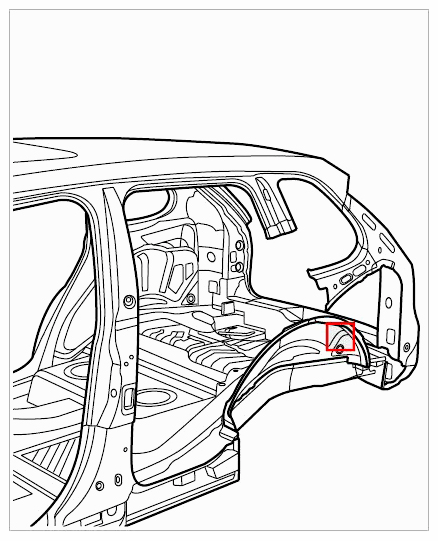

      Fig 4: Overview Of Rear Wheel Housing - Outside

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Separate rear wheel housing.
   1. 7.1. Mill off welded joints on the wheel housing using the spotweld cutter (area -A-  ).

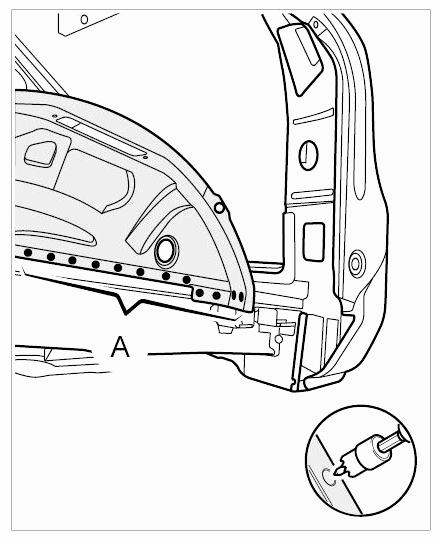

      Fig 5: Separating Welded Joints On Wheel Housing

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Remove rear wheel housing.
