Subsequent Work

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Fit caps. Then tighten the four fastening nuts on each cap. → Tightening torque: 10 Nm (7.5 ftlb.) Refit carpeted floor and fix in place with double-sided adhesive tape.

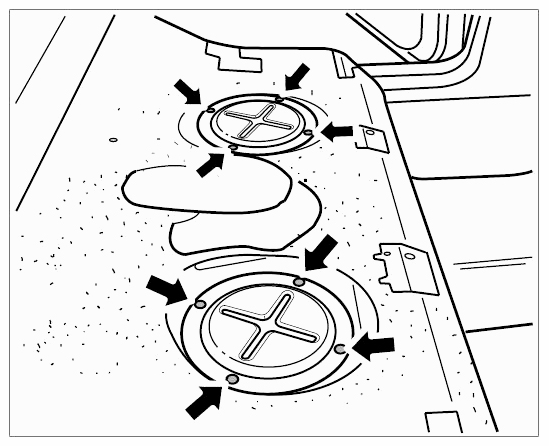

Fig 1: Locating Fastening Nuts On Caps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten the mounting plates for the seat-belt buckles. Use three new fastening screws for this and tighten. For tightening torques, see → WM 692519 REMOVING AND INSTALLING REAR BELT LOCK

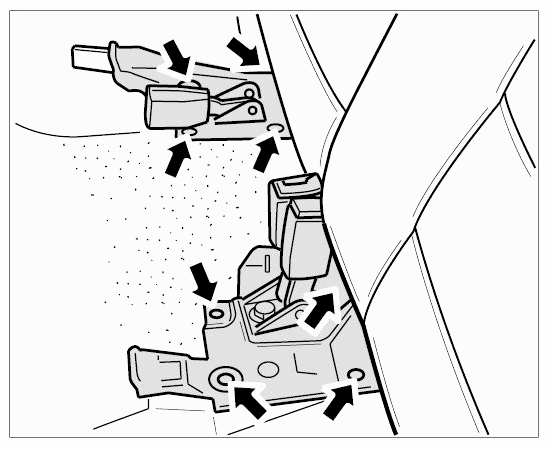

Fig 2: Locating Seat-Belt Buckles Brackets Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fold rear seat down again.
Fit the rear axle (spring struts and rear axle housing). → Installing rear axle carrier

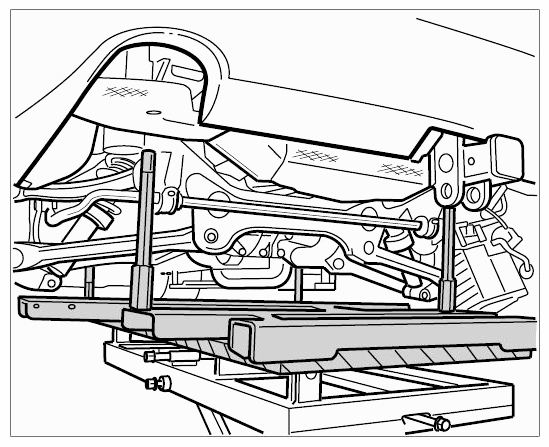

Fig 3: Jacking Up Rear Axle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit the carbon canister. → Installing Carbon Canister
