Preliminary Work

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove underbody panelling on the engine. → Removing engine guard
  2. Remove the air-cleaner element. → Removing and installing air-cleaner element
  3. Pull off the cable plug on the mass air flow sensor -1-  .

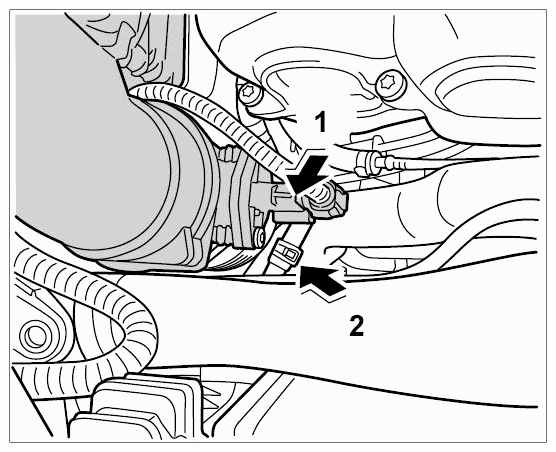

    Fig 1: Pulling Off Cable Plug From Mass Air Flow Sensor
    G09409938Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Screw on a screw-type clamp between the mass air flow sensor (MAF sensor) and intake manifold. Remove MAF sensor.
