Installing Cutoff Relay For Auxiliary Battery

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

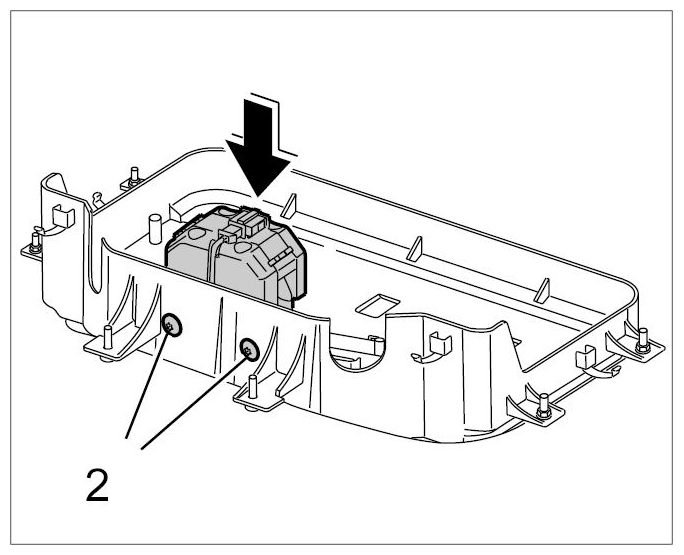

Position cutoff relay in installation position -arrow- and screw down with the two fastening screws -2- → Tightening torque: 4.5 ftlb..

Fig 1: Positioning Cutoff Relay In Installation Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

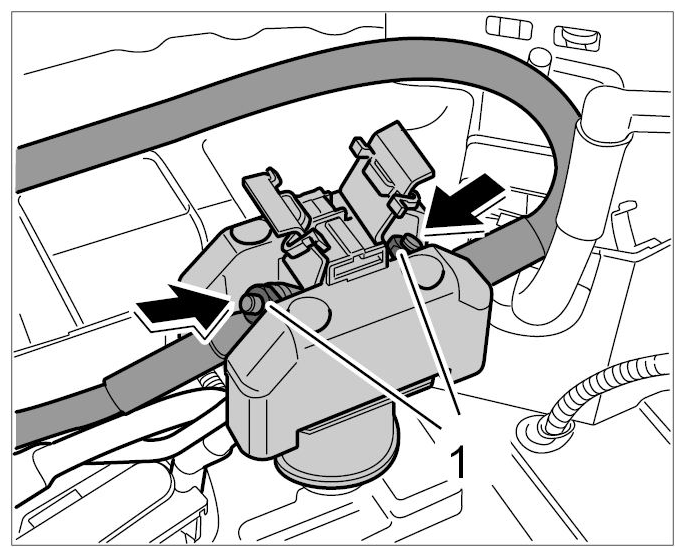

Place the lines on the threaded bolts -arrows- and tighten with the two fastening nuts -1- → Tightening torque: 12 ftlb..

Fig 2: Placing Lines On Threaded Bolts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

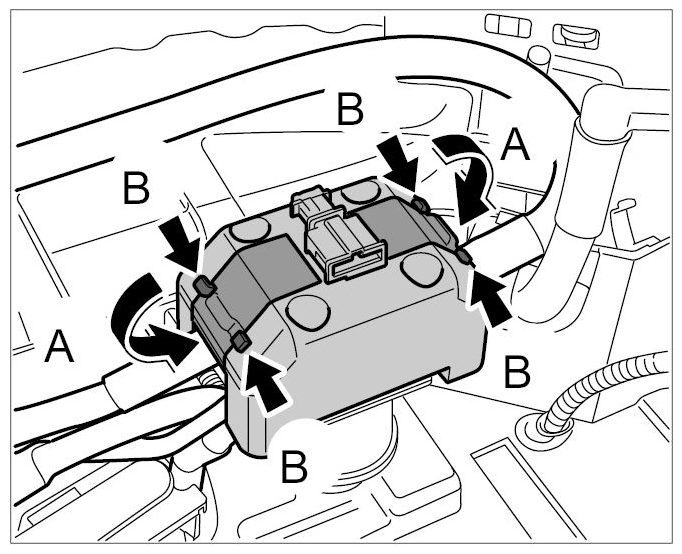

Close covers -Arrows A- until locking tabs are felt to engage -B- .

Fig 3: Closing Covers
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

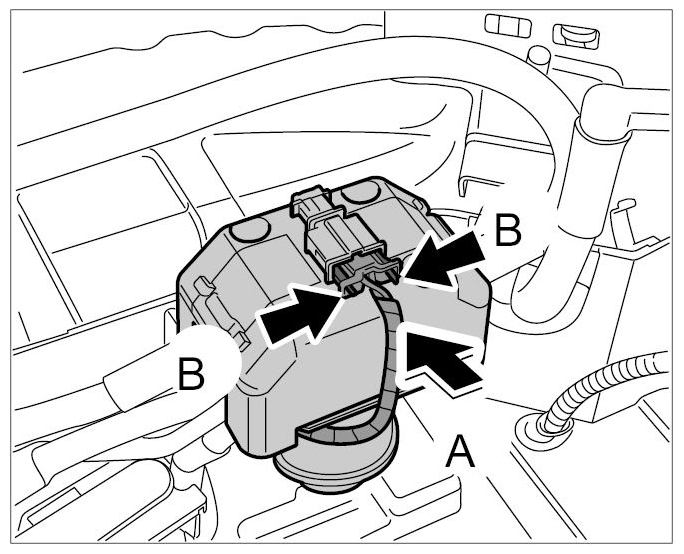

Push in connector -Arrow A- until the locking tabs -B- are felt to engage.

Fig 4: Pushing In Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Install auxiliary battery → Installing Battery .
