Installing Battery

1. Risk of contact with caustic fluid Position the battery in the battery case below the stops, if at all possible without tilting it.
   Fig 1: Installing Battery

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Position the battery mount and tighten with the fastening screw. → Tightening torque: 17.5 ftlb.
3. Position the sheetmetal bracket and secure it with the fastening screw. → Tightening torque: 6 ftlb.

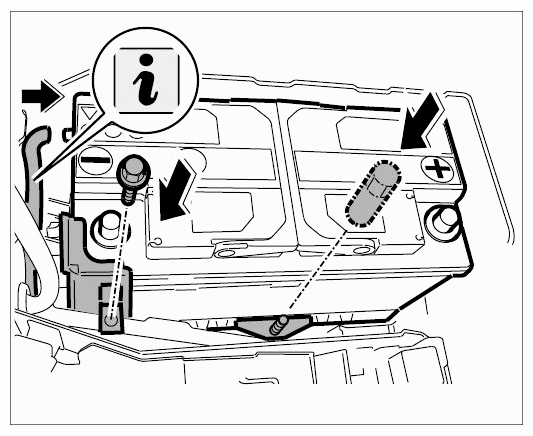

4. Insert the vent hose on the battery.

   Information

   • Make sure that the two ends of the vent hose are routed and inserted correctly.

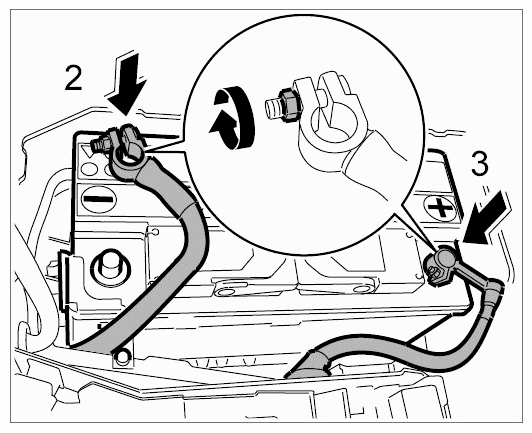

5. Risk of short circuit! First connect the positive cable -3-  , then the negative cable -2-  . → Tightening torque: 5 Nm
   Fig 2: Inserting Vent Hose On Battery

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Replace the battery box cover carefully. The cover must be mounted properly.
   Fig 3: Removing Battery Box Cover Using Screwdriver

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

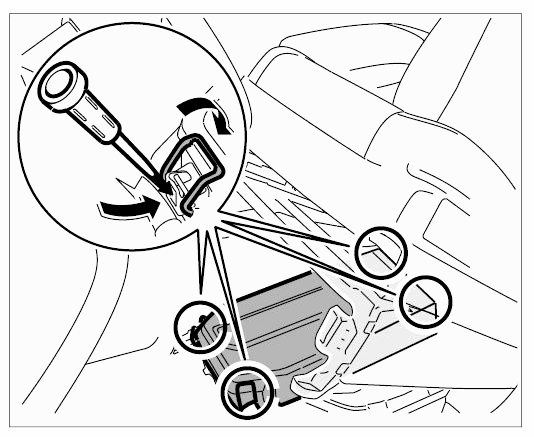

7. Attach the four tension hooks on the battery case cover and close using the screwdriver.
   WARNING: Incorrect handling of safety bolts

   • Danger of injury
   • Loss of torque

   → Always use new fastening screws and nuts following removal.

   → Observe specified tightening torques.

   → Carry out a visual inspection of all re-used parts.

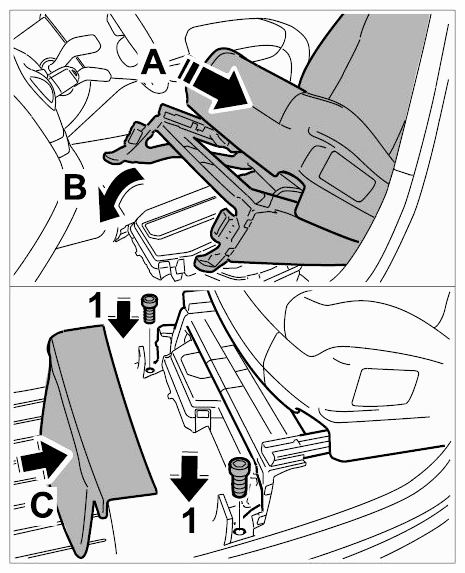

8. Move the seat in its folded position towards the rear -Arrow A-  and then tip forward -Arrow B-  .
   Fig 4: Clipping Front Seat Trim

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. Screw in fastening screws -1-  . → Tightening torque: 45 Nm (33 ftlb.)
10. Clip in front seat trim -C-  .

Carry out work instructions after disconnecting the battery. → WM 9000IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY (ALL MODELS)
