Sub-Part - Installing Wire Harness In Engine Compartment At The Front Right

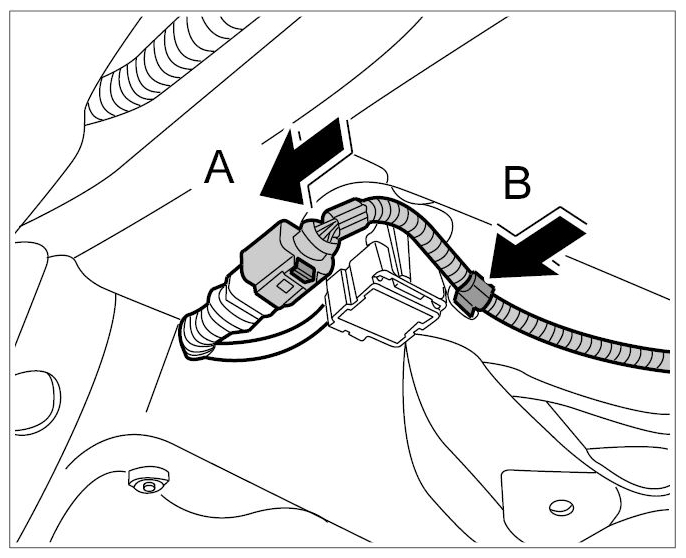

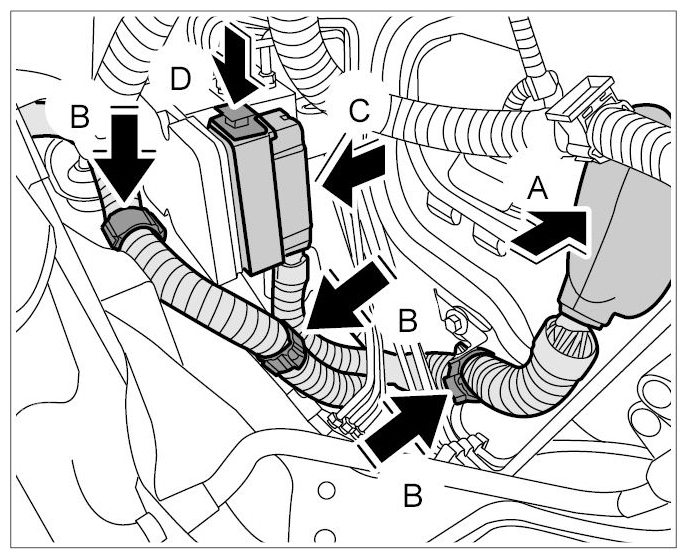

Fig 2: Plugging In Connector On Hydraulic Unit

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 1.1. Push front right wire harness through from the engine compartment towards the interior and fit rubber sleeve on the right firewall -arrow A-  .
2. 1.2. Route wire harness in plenum panel and clip in on the three retaining clips -arrows B-  .
3. 1.3. Plug in connector on hydraulic unit -arrow C-  and lock it -arrow D-  until the locking mechanism engages securely.

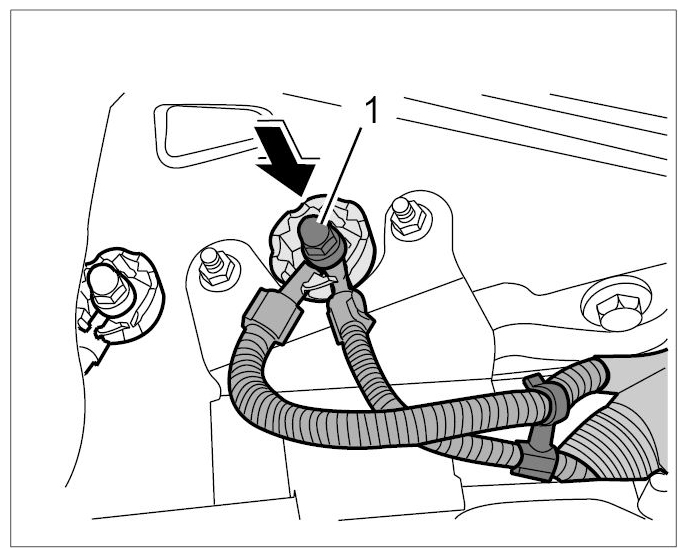

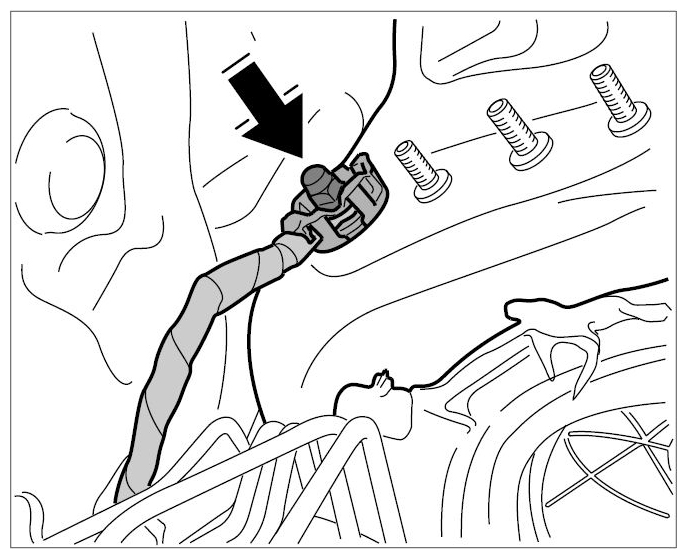

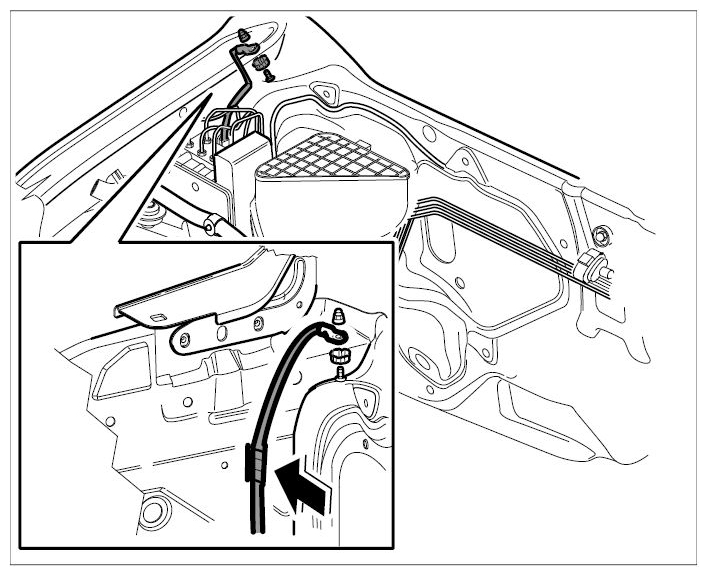

Fig 4: Securing Ground Strap

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 3.1. Connect ground strap together with the twist lock to the threaded bolt on the right firewall -arrow-  and secure it with the fastening nut. → Tightening torque: 9 Nm

1. 5.1. Route wire harness and clip it in at the retaining clips -arrows A-  .
2. 5.2. Push wire harness on upper side member onto the clips -arrows B-  .

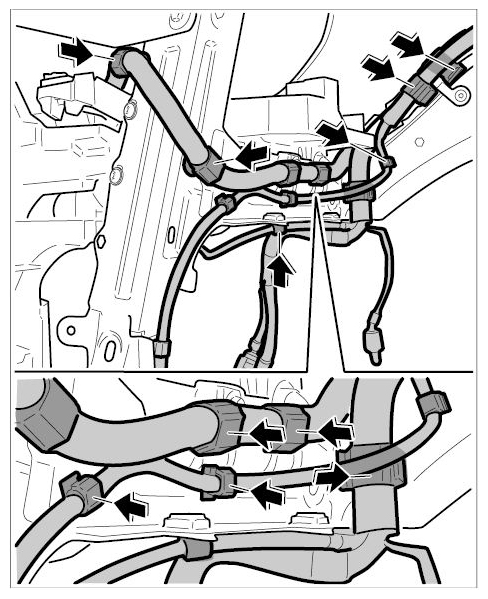

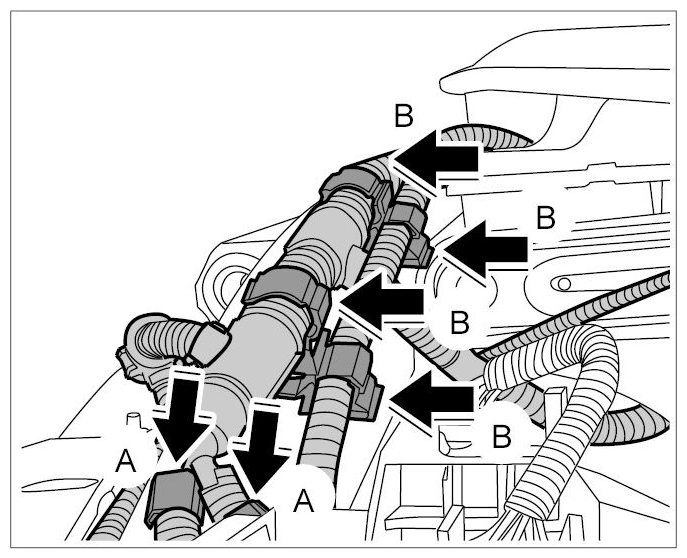

   Fig 6: Securing Wire Harness On Upper Right Side Member

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

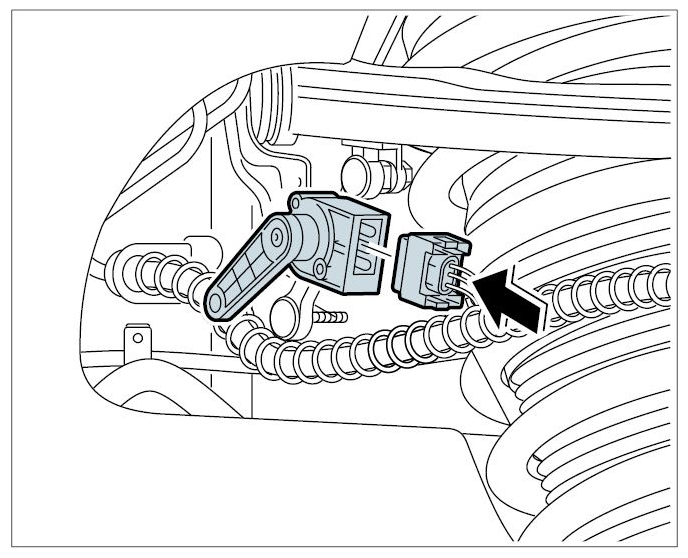

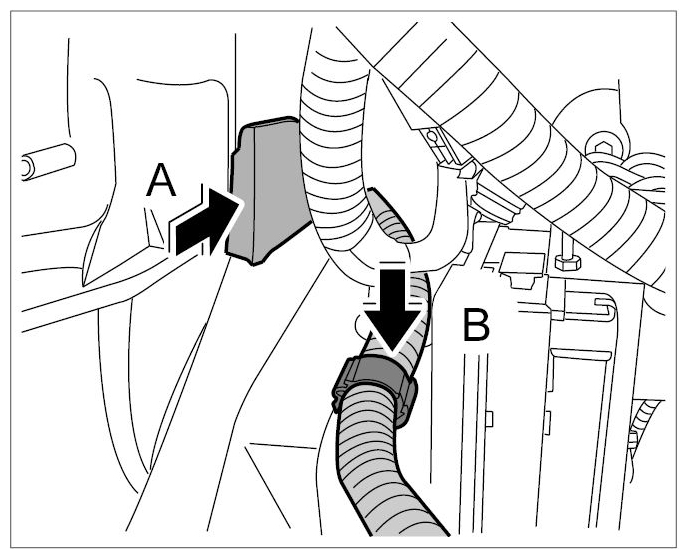

Fig 7: Plugging In Connector On Right Lateral Acceleration Sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 6.1. Plug in connector on lateral acceleration sensor in right wheel housing -arrow A-  until the connector engages securely.
2. 6.2. Route wire harness and clip it in on the wheel housing with the retaining clip -arrow B-  .

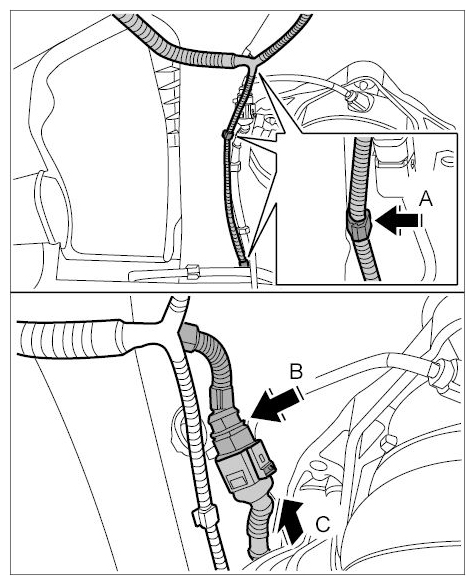

Fig 8: Connecting Plug Connection For ABS Sensor And Brake Pad Wear Indicator

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 7.1. Route wire harness and clip it in at the right wheel housing with the retaining clips -arrow A-  .
2. 7.2. Clip in connector socket for ABS sensor and brake pad wear indicator -arrow B-  .
3. 7.3. Connect plug connection for ABS sensor and brake pad wear indicator -arrow C-  until the plug connection engages securely.

Fig 9: Plugging In Connector On Angle Sensor For Range Adjustment

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 9.1. Push connector onto angle sensor for range adjustment at the right wheel suspension until the connector engages securely.

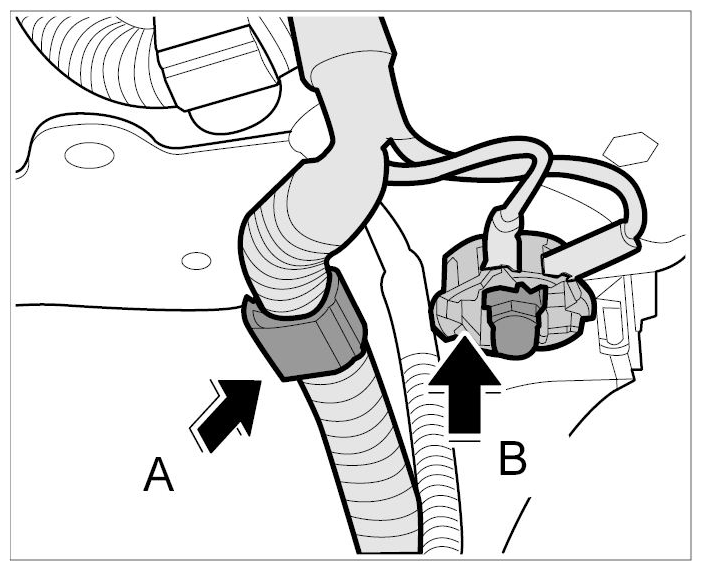

Fig 11: Securing Ground Strap For Front Right Cross Member

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 12.1. Route wire harness and clip onto front side member with the retaining clip -arrow A-  .
2. 12.2. Push ground straps together with twist lock on threaded bolt to the front side member -arrow B-  and screw down with fastening nut. → Tightening torque: 9 Nm

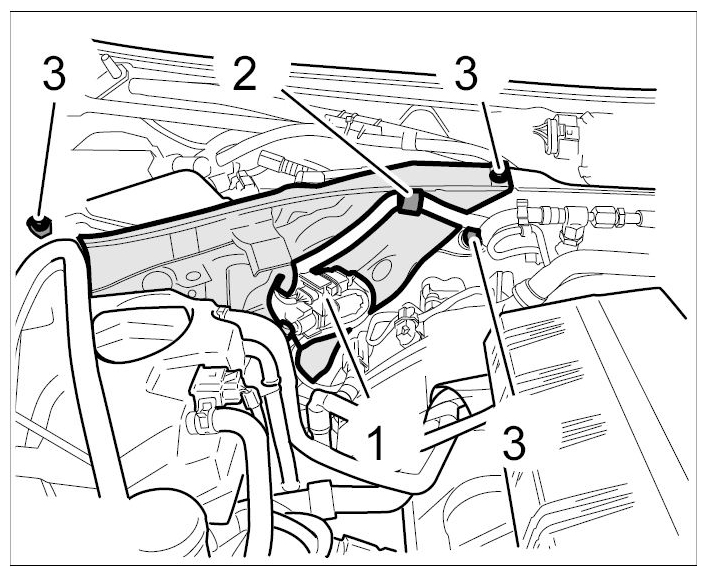

Fig 12: Installing Firewall

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 14.1. Fit seal on the body and spray with silicon spray.
2. 14.2. Fit firewall and position it correctly.
3. 14.3. Screw in fastening screws -3-  . → Tightening torque: 9 Nm (6.5 ftlb.)
4. 14.4. Clip in wire harness with the retaining clip -2-  .
5. 14.5. Connect oxygen sensor connectors -1-  until they engage securely and clip oxygen sensor connectors into the support -1-  . → Installing Oxygen Sensor Ahead Of Catalytic Converter → Installing Oxygen Sensor Behind Catalytic Converter

1. 15.1. Position intake tube -arrow-  and secure with the fastening nuts -1-  . → Tightening torque: 6 Nm (4.5 ftlb.)
2. 15.2. Close retaining clips in the intake manifold -arrow A-  .
3. 15.3. Insert air inlet grille -arrow B-  .
4. 15.4. Clip in wire harness on the intake tube -arrow C-  and push in retaining clip for wire harness on the intake tube -arrow D-  .

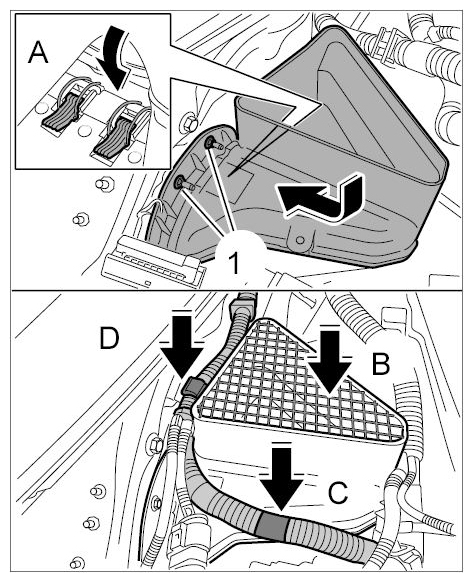

   Fig 13: Installing Intake Manifold For Heater/Air-Conditioning Unit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 16.1. Position support for DME control unit -arrow-  and secure with the fastening nuts -3-  and fastening screw -2-  . → Tightening torque: 8 Nm (6.0 ftlb.)  → Tightening torque: 8 Nm (6.0 ftlb.)

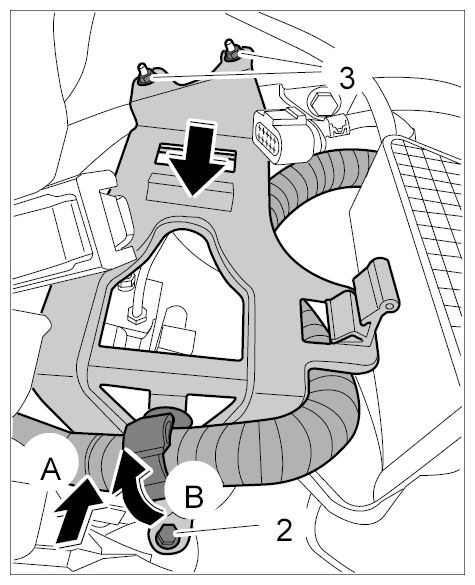

   Fig 14: Installing Support For DME Control Unit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 16.2. Insert wire harness for DME control unit into the retaining clip -arrow A-  and close the retaining clip -arrow B-  .
3. 16.3. Mount ground straps together with the twist lock on the stud -arrow-  and screw down with the fastening nut -1-  . → Tightening torque: 9 Nm
   Fig 15: Securing Ground Straps

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Select a place for the joint where there is enough space to join all the lines present.

Do not cut the lines too short in case they have to be laid in a different position if there is insufficient space in the area of the joint.

Information

The electric lines are located in the plenum panel and are thus exposed to the highest demands.

The greatest care must be used in the individual work steps for stripping insulation from, crimping, and shrinking/insulating the electric lines.

The procedure for stripping insulation from, crimping, and shrinking/insulating the electric lines must be complied with and observed. The procedures are described in detail in the Repair kit for Cayenne harnesses NR.155-2  .

Crimping samples are to be prepared before beginning work.

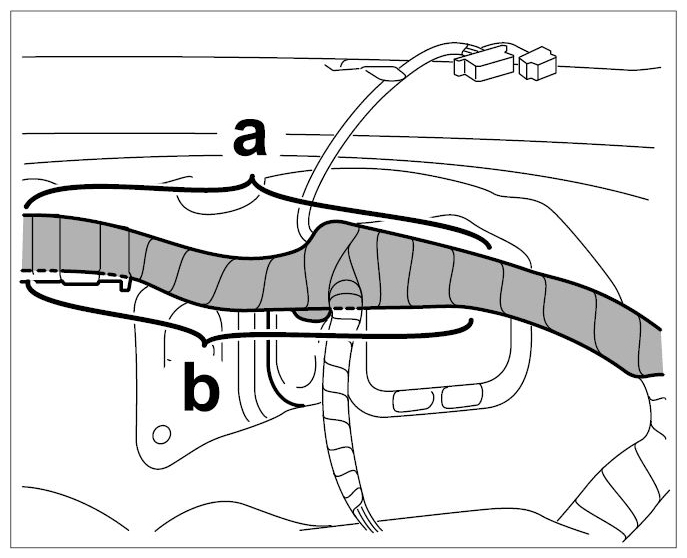

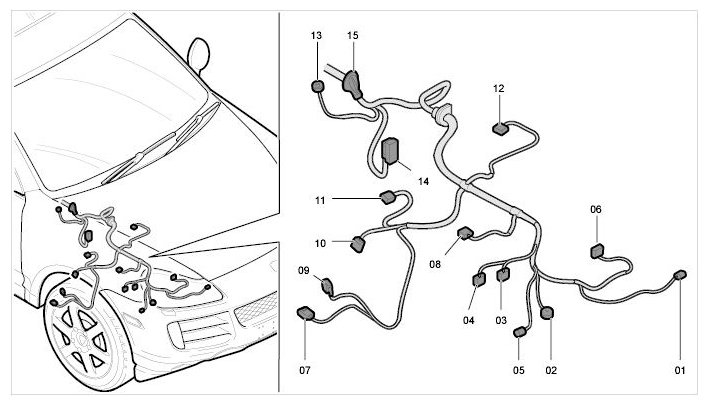

Fig 16: Connecting And Routing Front Right Wire Harness

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 17.1. Cut off lines in different lengths (due to the shrink-fit connections).
2. 17.2. Slide shrink-fit hoses onto the lines.
3. 17.3. Strip 10 mm of insulation off the lines.
4. 17.4. Crimp the lines using crimping sleeves and the hand crimping pliers  from the repair kit for wiring harnesses Nr.155-1  .
5. 17.5. Slide the shrink-fit hoses over the crimp connections and carefully shrink them using the hot-air blower with special nozzle  (recommended accessories for the repair kit for wire harnesses) so that they are watertight.
6. 17.6. Wrap commercially available PVC tape all around the area of the connection points.
7. 17.7. Secure the repaired area -b-  to the main wire harness with tie-wraps.
