Sub-Part - Removing Wire Harness In Engine Compartment At The Front Left

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

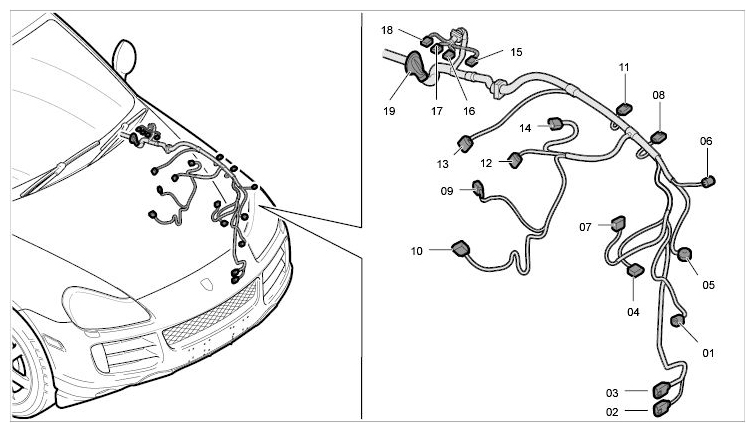

Fig 1: Identifying Installation Position Of Sub-Part - Wire Harness In Front Left Of Engine Compartment

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1 - Airbag sensor connector
2-3 - Fan connectors
4 - Plug connection for front left wire harness
5 - Ground strap for front left cross member
6 - Bulb socket for left direction indicator
7 - Connector for left headlight
8 - Transmitter (trigger) for TPM, left
9 - Connector for angle sensor for range adjustment
10 - Servo valve connector
11 - Additional heating connector
12 - Plug connection for ABS sensor and brake pad wear indicator, left
13 - Circulating pump connector
14 - Connector for lateral acceleration sensor
15-18 - Connector for plenum panel E-box
19 - Rubber sleeve

Remove cover on cable duct (above the pedals) -arrow- .

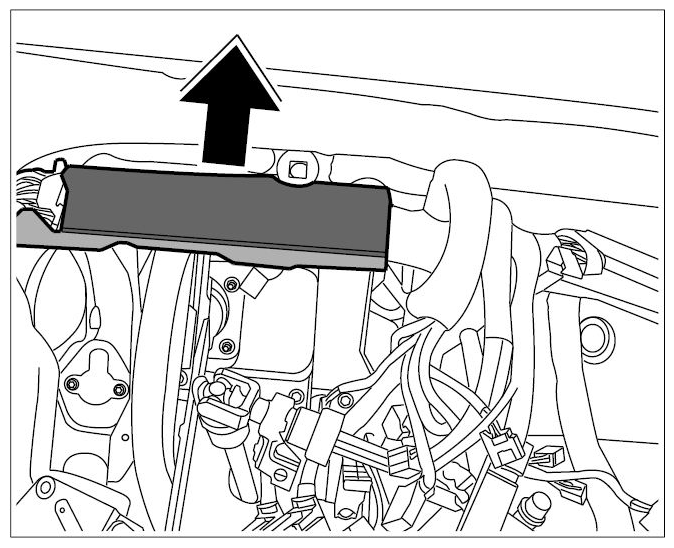

Fig 2: Removing Cable Duct Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

When cutting the front wire harness, make sure there is enough length of cable left to join to the new lines.

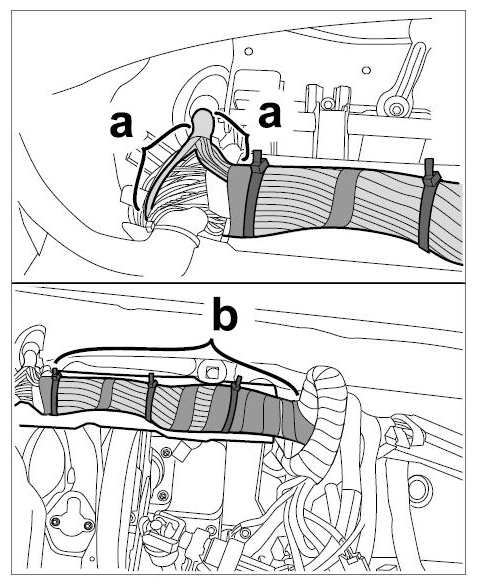

Cut off front left wire harness in areas -a- (top left, next to the pedals).

Fig 3: Cutting Off And Exposing Front Left Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove fabric tape and tie-wraps in area -b- and expose the remaining lines.
Remove left firewall.

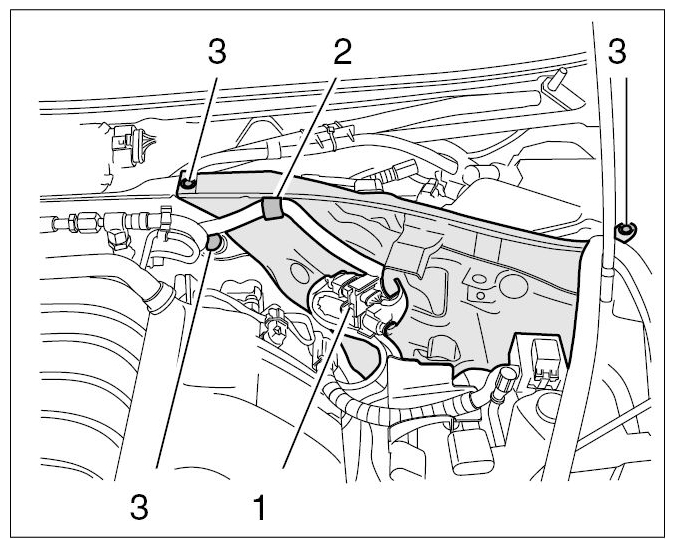

Fig 4: Removing Firewall
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Remove oxygen sensor connector -1- from the support at the firewall and disconnect it. → Removing Oxygen Sensor Ahead Of Catalytic Converter → Removing Oxygen Sensor Behind Catalytic Converter
2. 4.2. Unclip wire harness at the retaining clip -2- .
3. 4.3. Loosen PDCC reservoir at the firewall and set it aside.
4. 4.4. Unscrew fastening screws -3- on the firewall.
5. 4.5. Lift the firewall and seal up and off.
Release connector on airbag sensor at the left -1- and pull it off. → Removing Airbag Sensor
Pull off connectors -2 and 3- on fan.

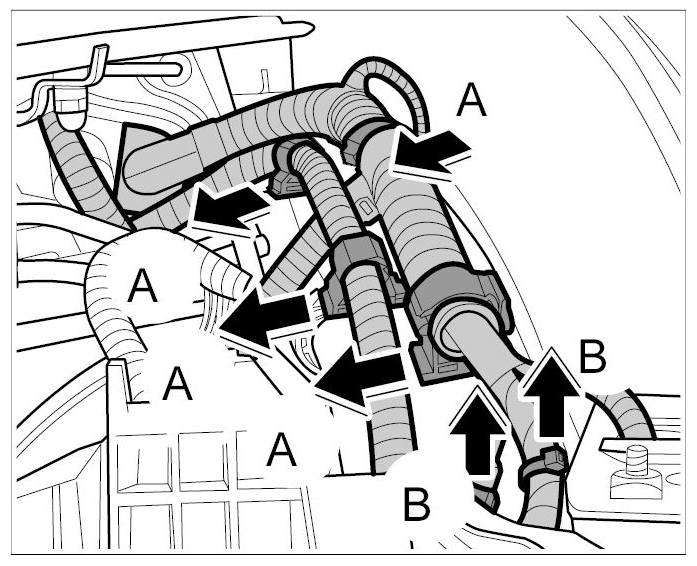

1. 6.1. Unclip wire harness at the retaining clips -arrows A- .
2. 6.2. Release connectors on fan -arrows B- and pull them off -arrows C- .
3. 6.3. Screw off fastening nut and pull the ground straps together with the twist lock off the threaded bolt -arrow D- .

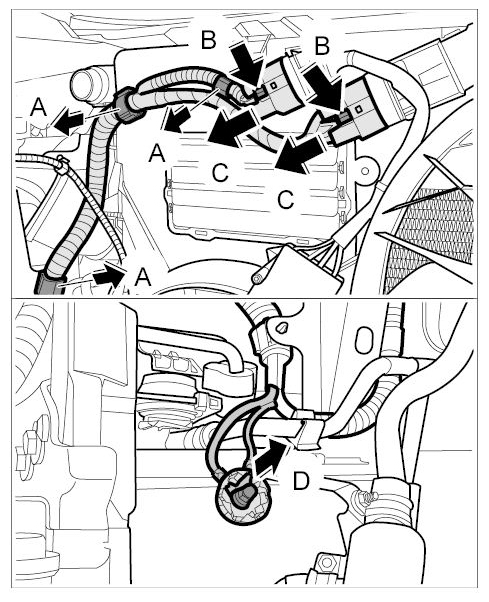

  Fig 5: Pulling Off Fan Connectors
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull off plug connection for front left wire harness -4- and loosen ground strap for front left cross member -5- .

Fig 6: Disconnecting Plug Connection For Front Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

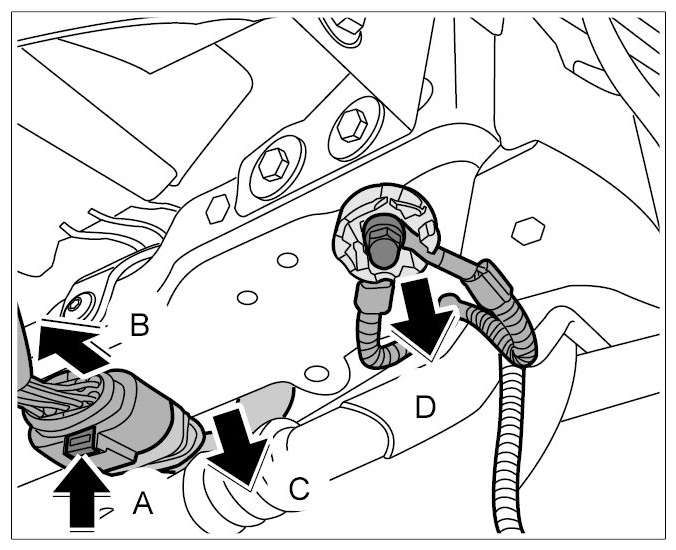

1. 7.1. Release plug connection for front wire harness on the front left cross member -arrow A- and pull off connector -arrow B- .
2. 7.2. Unclip connector socket -arrow C- .
3. 7.3. Screw off fastening nut and pull the ground straps together with the twist lock off the threaded bolt -arrow D- .
Unclip wire harness at the retaining clips close to the mounting for the left headlight -arrows- .

Fig 7: Unclipping Wire Harness Close To Mounting For Left Headlight
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release connector on TPM transmitter (trigger) -8- and pull it off. → Removing Transmitter (Trigger) For Tyre Pressure Monitoring (TPM)
Pull off connector on angle sensor for range adjustment at the left -9- .

Fig 8: Pulling Off Connector On Angle Sensor For Range Adjustment
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

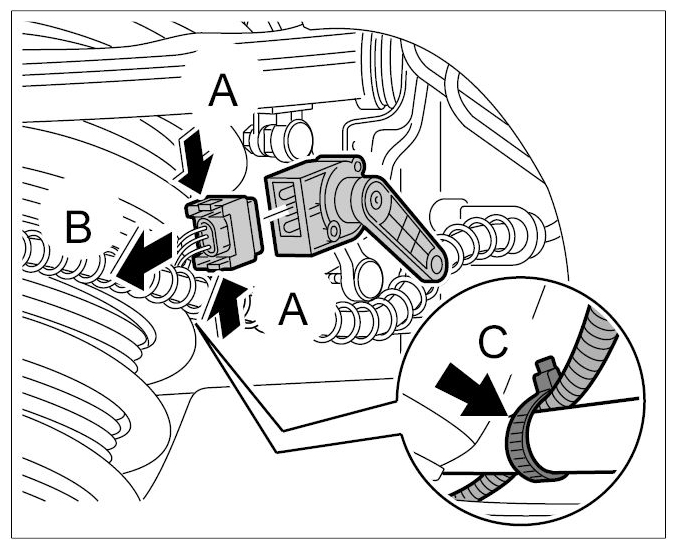

1. 10.1. Release connector on angle sensor for range adjustment at the left -arrows A- and pull it off -arrow B- .
2. 10.2. Remove tie-wrap used to fix the wire harness in place on the refrigerant line -arrow C- .
Pull off connector on servo valve -10- .

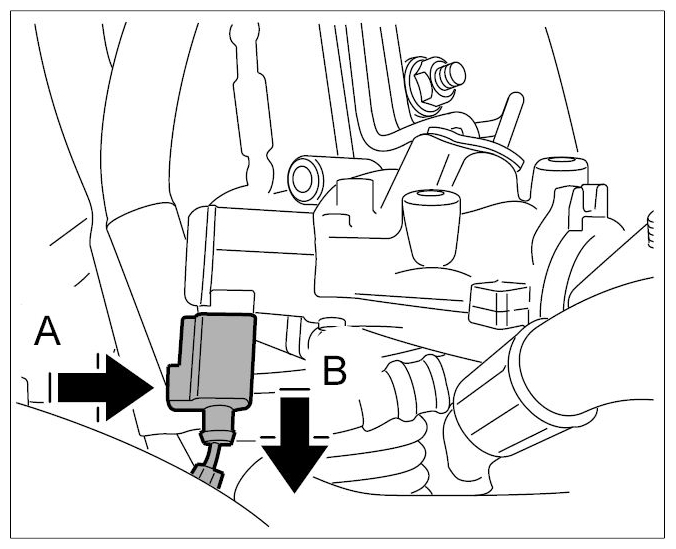

Fig 9: Pulling Off Connector On Servo Valve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 11.1. Release connector on servo valve -arrow A- and pull it off -arrow B- .
Release connector for additional heating -11- and pull it off. → Removing Complete Heater
Pull off plug connection for ABS sensor and brake pad wear indicator on the left -12- .

Fig 10: Pulling Off Plug Connection For ABS Sensor And Brake Pad Wear Indicator
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 13.1. Release plug connection for ABS sensor and brake pad wear indicator in the left wheel housing -arrow A- and pull it off -arrow B- .
2. 13.2. Unclip connector socket for ABS sensor and brake pad wear indicator -arrow C- .
3. 13.3. Unclip wire harness at the three retaining clips -arrow D- .
Pull off connector on left lateral acceleration sensor -14- and circulating pump connector -13- .

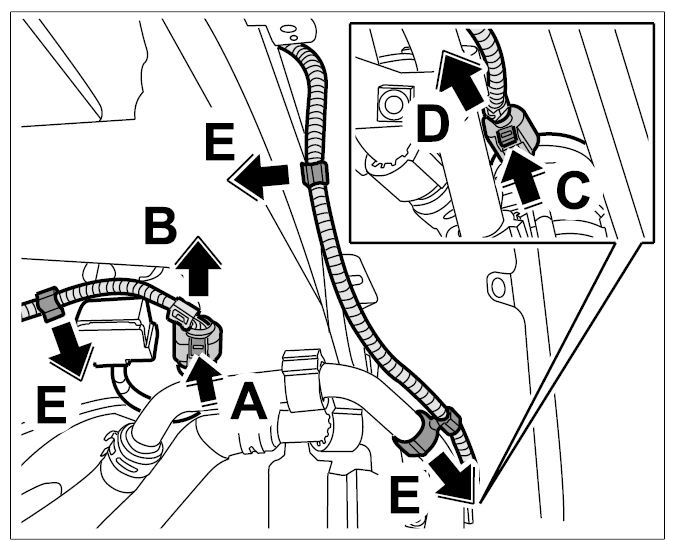

Fig 11: Pulling Off Connector On Lateral Acceleration Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

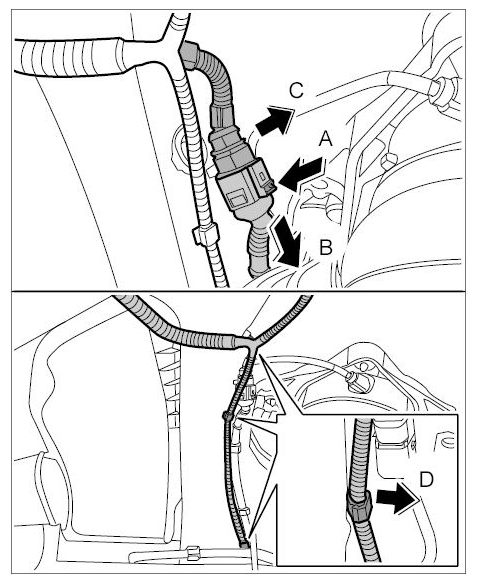

1. 14.1. Release connector on lateral acceleration sensor in the left wheel housing -arrow A- and pull it off -arrow B- .
2. 14.2. Release connector on circulating pump -arrow C- and pull it off -arrow D- .
3. 14.3. Unclip wire harness at the retaining clips -arrows E- .
Loosen wire harness on upper left side member.
1. 15.1. Pull wire harness on upper side member down out of the clips -arrows A- .
2. 15.2. Unclip wire harness at the retaining clips -arrows B- .

  Fig 12: Loosening Wire Harness On Upper Left Side Member
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove rubber sleeve from the bulkhead -arrow- .

Fig 13: Removing Rubber Sleeve From Bulkhead
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

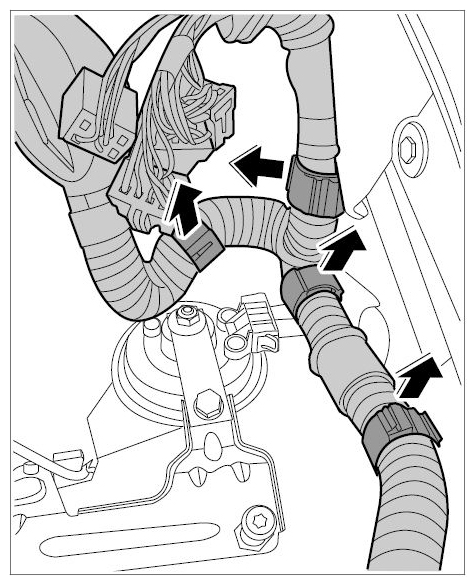

Unclip wire harness in plenum panel at the retaining clips -arrows- .

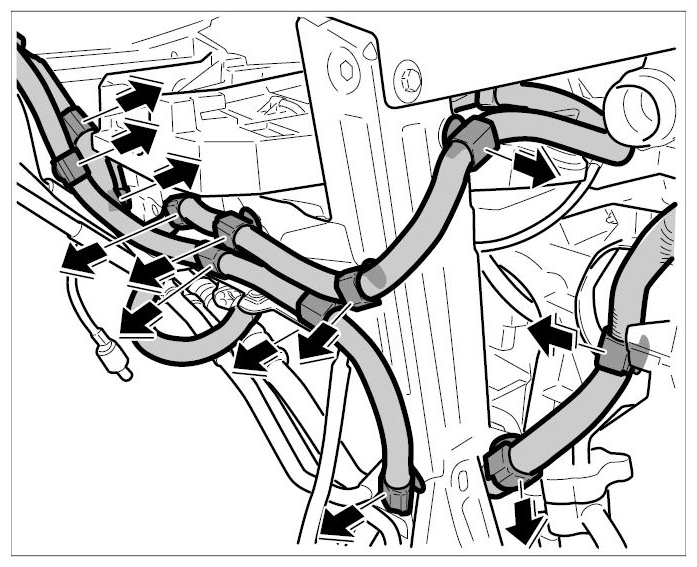

Fig 14: Unclipping Wire Harness In Plenum Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

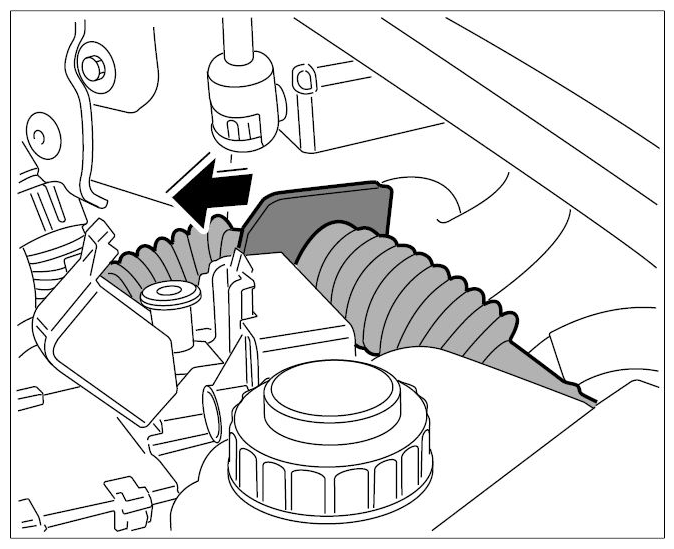

Remove rubber sleeve -19- on the left firewall.
1. 18.1. Remove rubber sleeve on the left firewall in direction of the engine compartment -arrow- and remove the front left wire harness.

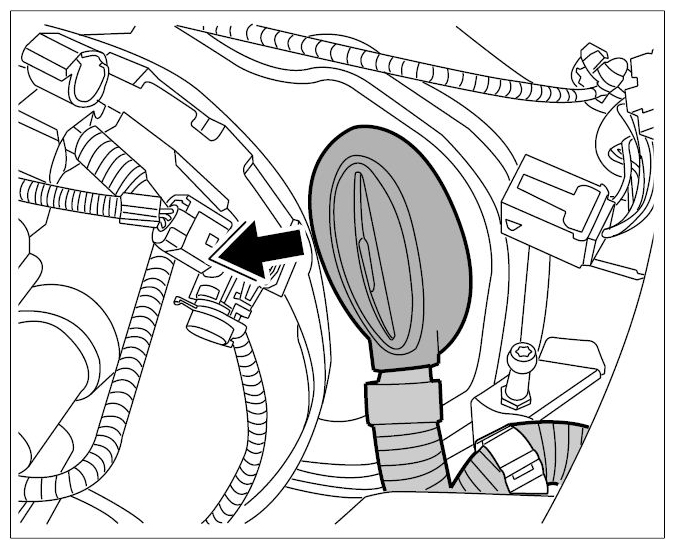

  Fig 15: Removing Rubber Sleeve On Left Firewall
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
