Removing Complete Heater

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

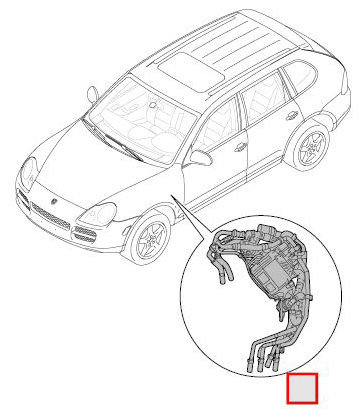

Fig 1: Overview Of Complete Heater

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

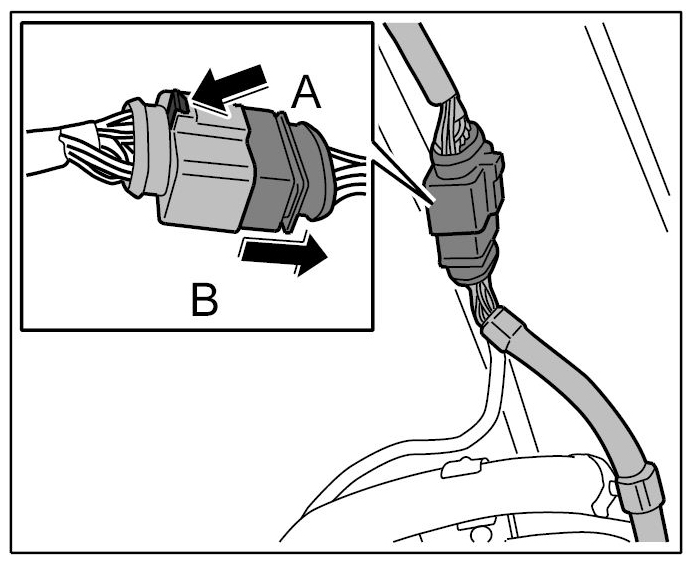

Unlock central plug -arrow A- and remove -arrow B- .

Fig 2: Pulling Off Central Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Before disconnecting the water lines, it is essential to observe the safety instructions in → WM 1001AW The most important working regulations and warning notes
Drain coolant. → 193817 DRAINING AND FILLING COOLANT (INCLUDES BLEEDING)

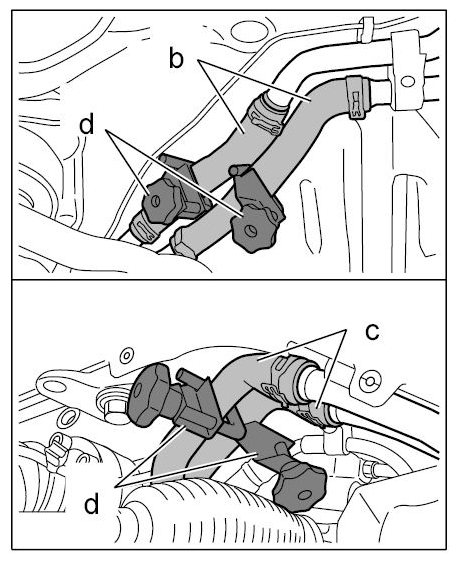

Clamp the two upper hoses -b- using a hose clamp 3094 -d- .

Fig 3: Disconnecting Upper And Lower Hoses
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clamp the two lower hoses -c- using a hose clamp 3094 -d- .

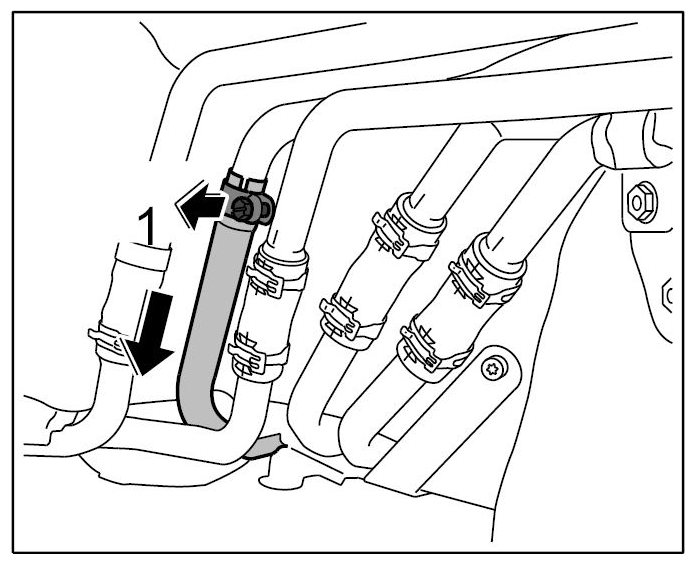

Undo the fastening screw -arrow 1- and push the clamp downwards -arrow- .

Fig 4: Loosening Lower Hose Clamps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

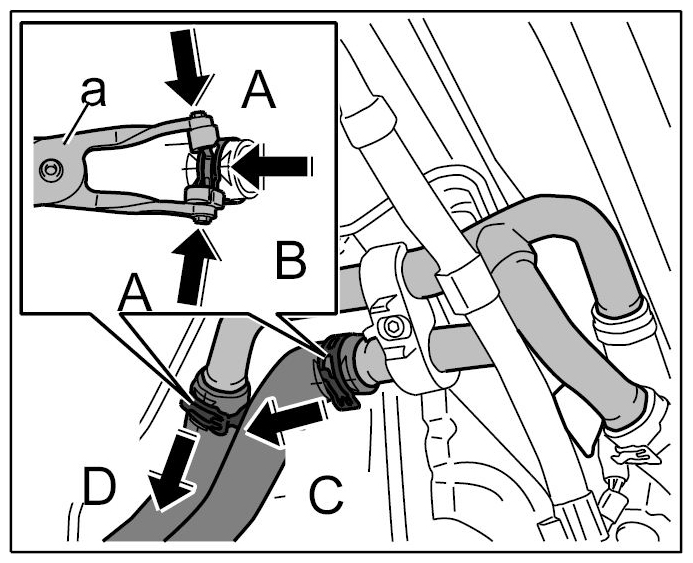

Release both spring band clamps using assembly pliers for spring band clamps, Cayenne hose connections Nr.72-1 -a- (-arrows A-) and slide them off the adapters -arrow B- .

Fig 5: Releasing Spring Band Clamps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull both hoses off the lines -arrow C and D- .

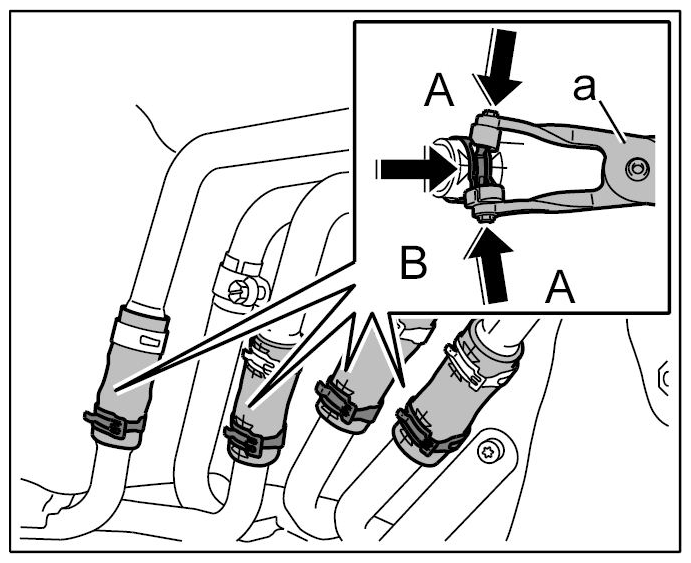

Loosen the spring band clamps using the assembly pliers for spring band clamps, Cayenne hose connections Nr.72-1 -a- (-arrows A-) and slide them off the adapters -arrow B- .

Fig 6: Releasing Spring Band Clamps From Adapters
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

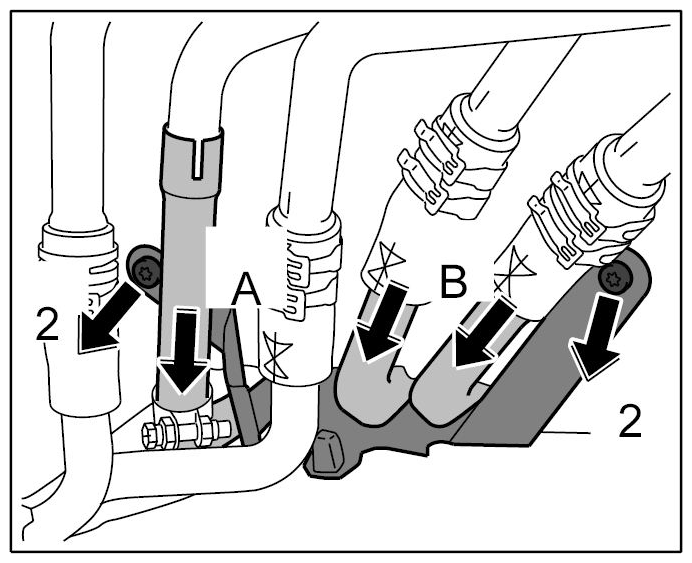

Pull out muffler downwards -arrow A- .

Fig 7: Pulling Out Muffler Downwards
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws -arrows 2- .
Pull out both lines together with the mount downward out of the hoses -arrows B- .

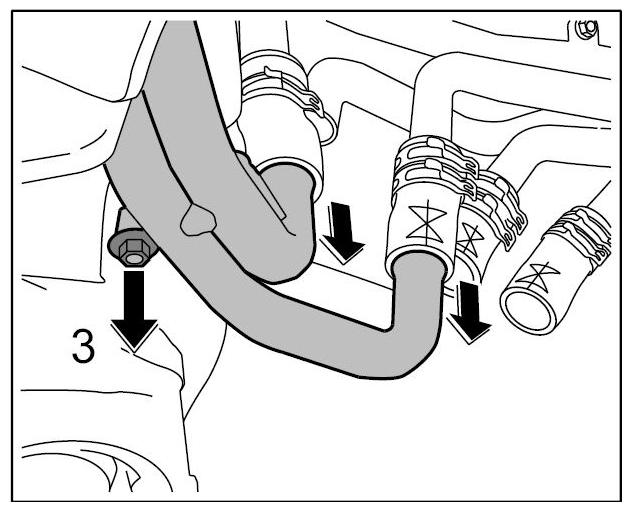

Unscrew fastening nut -arrow 3- .

Fig 8: Loosening Fastening Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull out both lines downward out of the hoses -arrows- .

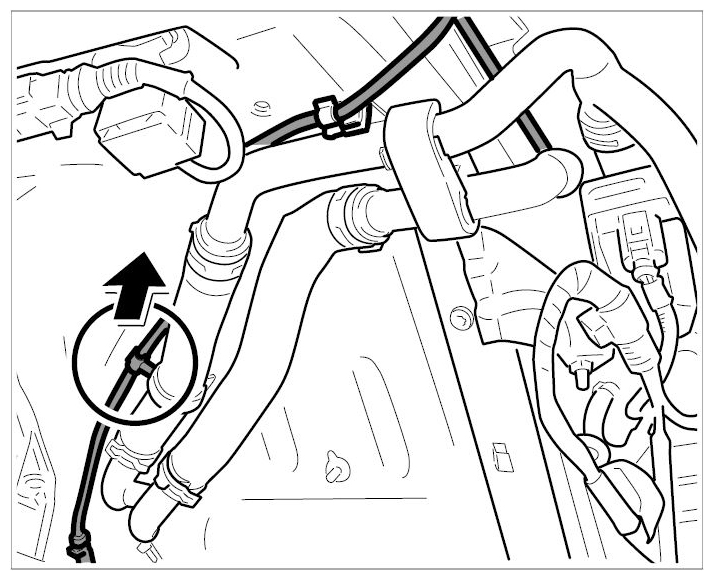

Unclip fuel line at the water tube -arrow- .

Fig 9: Unclipping Water Tube Fuel Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Before disconnecting the fuel line, it is essential to observe the safety instructions in → WM 1001AW The most important working regulations and warning notes

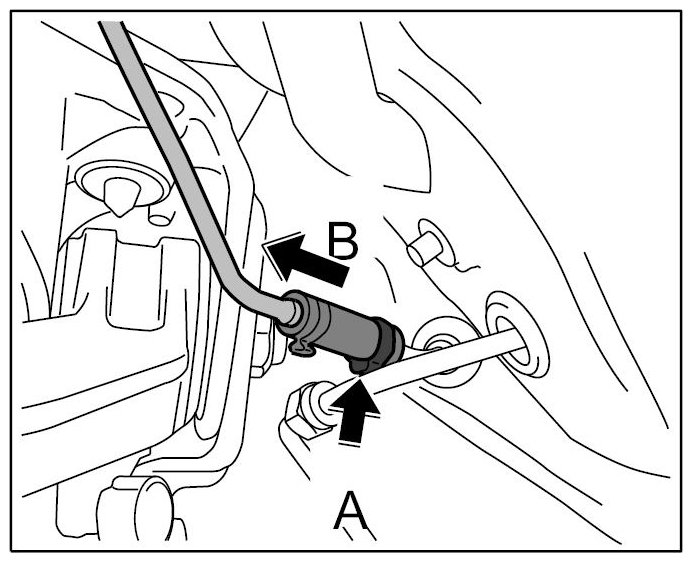

Loosen the clamp -arrow A- and take out the fuel line along with the connecting hose -arrow B- .

Fig 10: Pulling Out Fuel Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

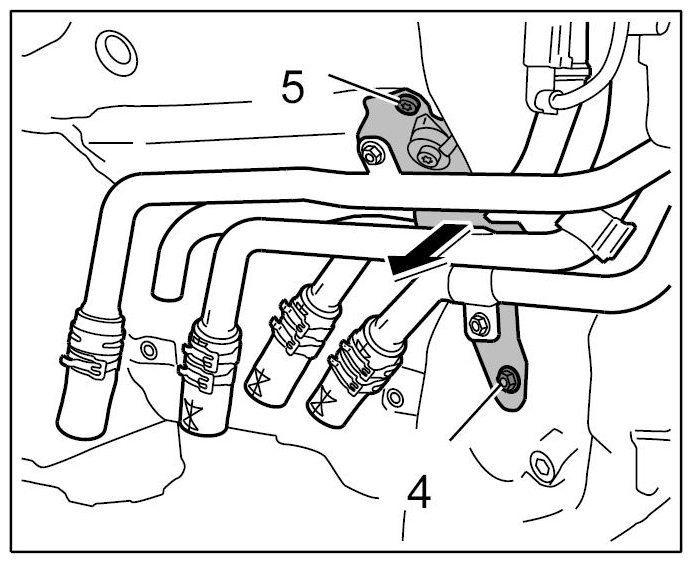

Unscrew the fastening nut -4- and the fastening screw -5- and undo the mount with the lines.

Fig 11: Disconnecting Holder And Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

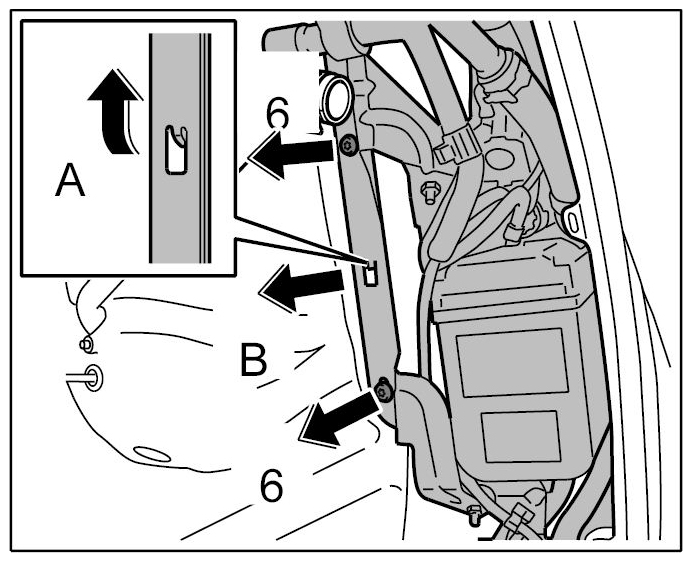

Unscrew the fastening screws -arrows 6- , disengage the holder -arrow A- and take out the complete heater -arrow B- .

Fig 12: Removing Heater And Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
