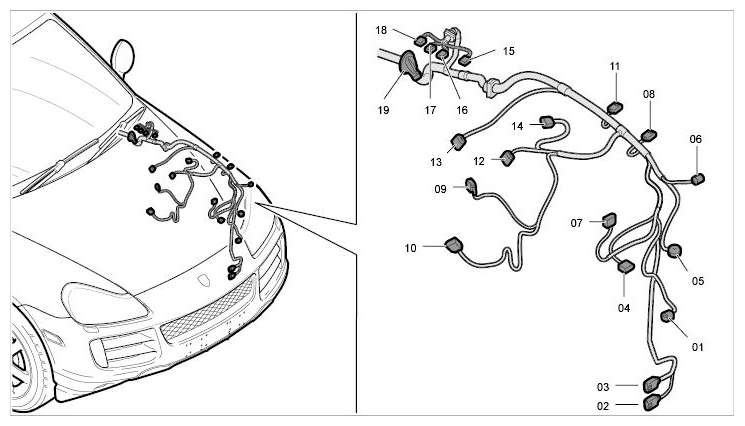

Sub-Part - Installing Wire Harness In Engine Compartment At The Front Left

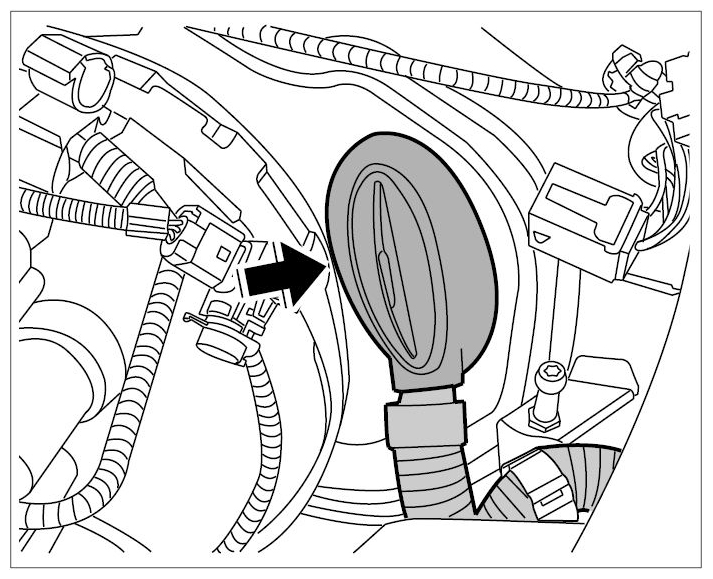

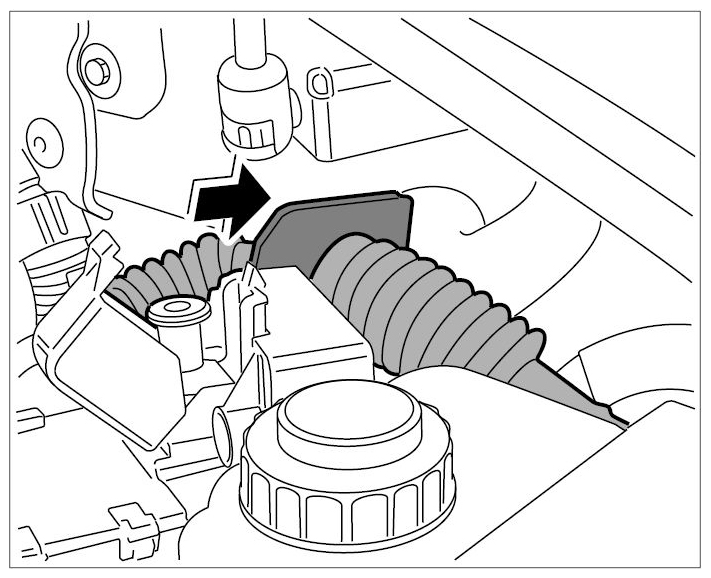

Fig 2: Fitting Rubber Sleeve On Left Firewall

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 1.1. Push front left wire harness through from the engine compartment towards the interior and fit rubber sleeve on the left firewall.

1. 4.1. Route wire harness and clip it in at the retaining clips -arrows A-  .
2. 4.2. Push wire harness on upper side member onto the clips -arrows B-  .

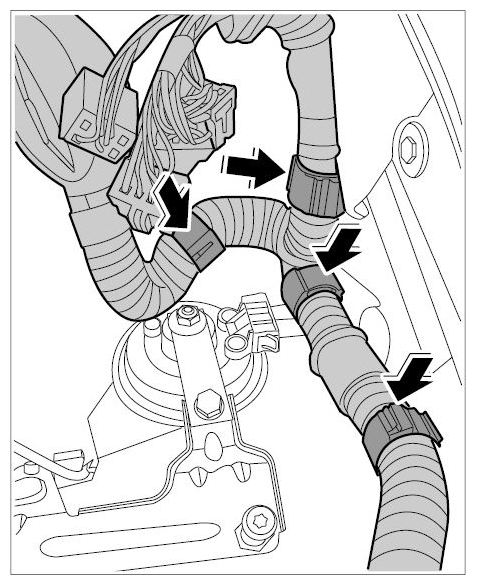

   Fig 5: Securing Wire Harness On Upper Left Side Member

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

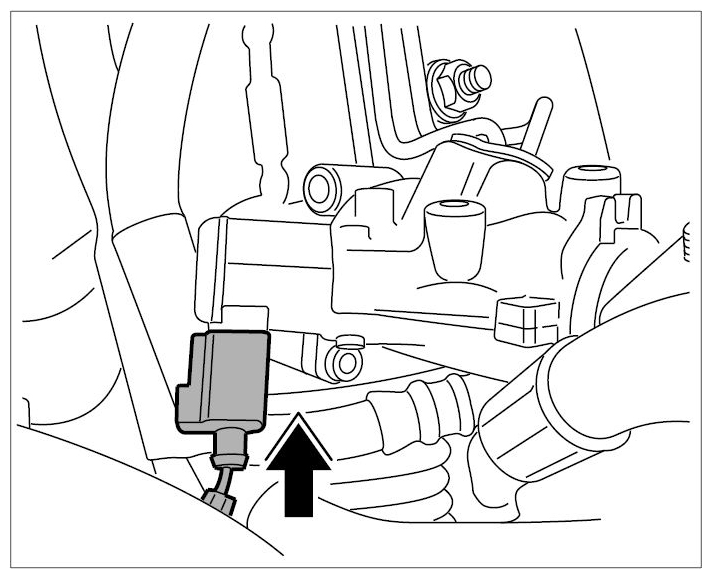

Fig 6: Plugging In Connector On Left Lateral Acceleration Sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

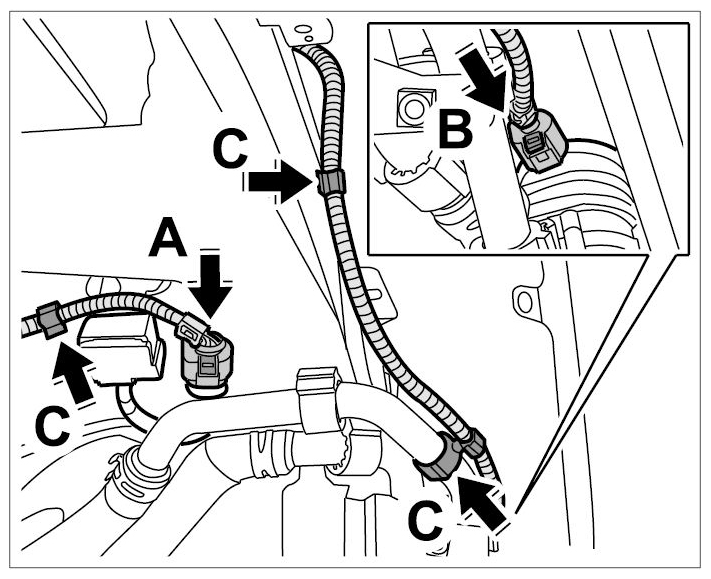

1. 5.1. Plug in connector on lateral acceleration sensor in left wheel housing -arrow A-  until the connector engages securely.
2. 5.2. Plug in connector on circulating pump -arrow B-  until the connector engages securely.
3. 5.3. Route wire harness and clip it in on the left wheel housing with the three retaining clips -arrows C-  .

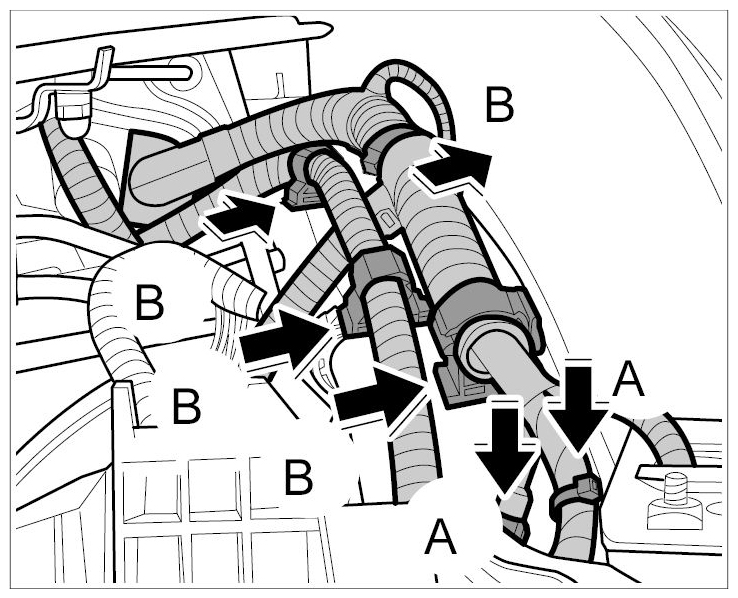

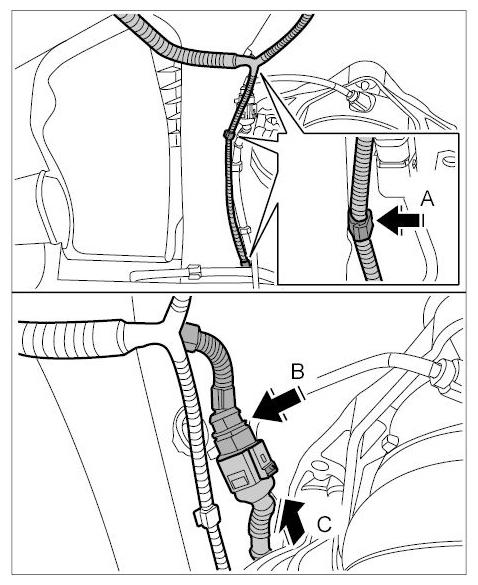

Fig 7: Connecting Plug Connection For ABS Sensor And Brake Pad Wear Indicator

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 6.1. Route wire harness and clip it in at the left wheel housing with the retaining clips -arrow A-  .
2. 6.2. Clip in connector socket for ABS sensor and brake pad wear indicator -arrow B-  .
3. 6.3. Connect plug connection for ABS sensor and brake pad wear indicator -arrow C-  until the plug connection engages securely.

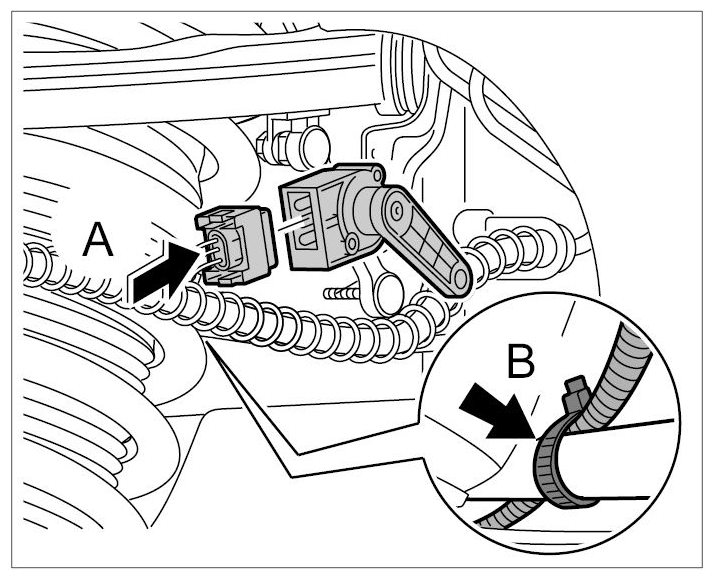

Fig 9: Plugging In Connector On Angle Sensor For Range Adjustment

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 9.1. Plug in connectors on angle sensor for range adjustment at the left -arrow A-  until the connectors engage securely.
2. 9.2. Secure wire harness on the refrigerant line with a new tie-wrap -arrow B-  .

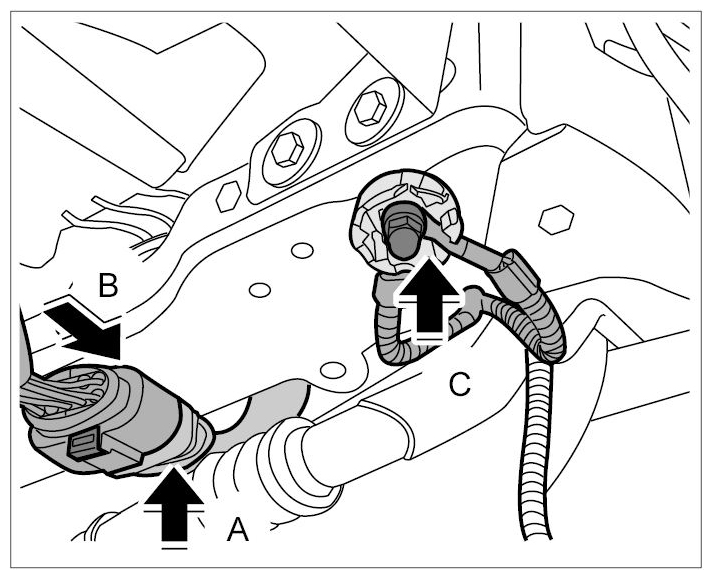

Fig 11: Connecting Plug Connection For Front Wire Harness

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 12.1. Clip connector socket for front wire harness in at the front of the left cross member -arrow A-  .
2. 12.2. Plug in connector -arrow B-  until it engages securely.
3. 12.3. Connect ground straps together with the twist lock to the threaded bolt -arrow C-  and screw on the fastening nut. → Tightening torque: 9 Nm (6.5 ftlb.)

1. 13.1. Plug in connectors on fan -arrows A-  until they engage securely.
2. 13.2. Clip in wire harness at the retaining clips -arrows B-  .
3. 13.3. Connect ground straps together with the twist lock to the threaded bolt -arrow C-  and screw on the fastening nut. → Tightening torque: 9 Nm (6.5 ftlb.)

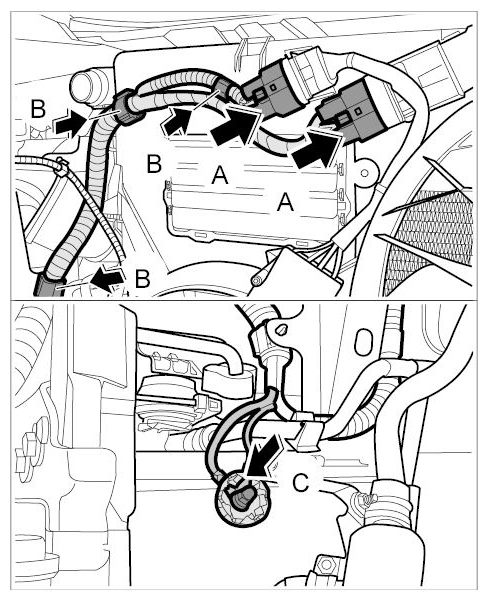

   Fig 12: Plugging In Connectors On Fan

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

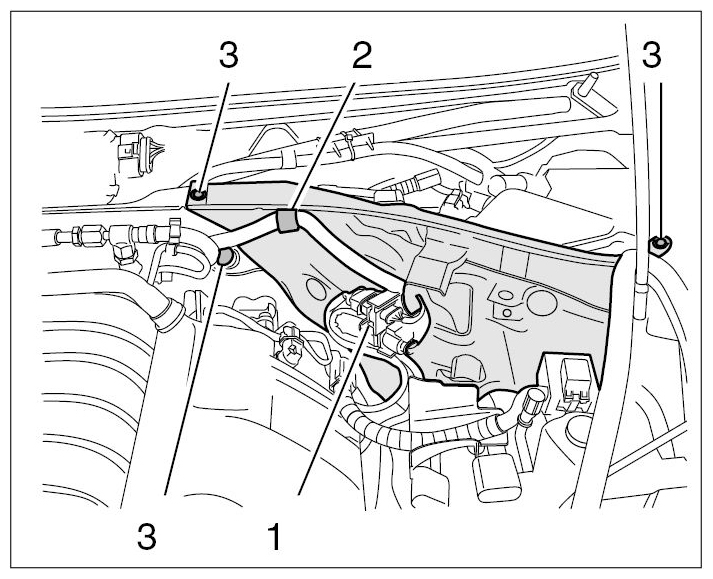

Fig 13: Installing Firewall

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 15.1. Fit seal on the body and spray with silicon spray.
2. 15.2. Fit firewall and position it correctly.
3. 15.3. Screw in fastening screws -3-  . → Tightening torque: 9 Nm (6.5 ftlb.)
4. 15.4. Clip in wire harness with the retaining clip -2-  .
5. 15.5. Connect oxygen sensor connectors -1-  until they engage securely and clip oxygen sensor connectors into the support -1-  . → Installing Oxygen Sensor Ahead Of Catalytic Converter → Installing Oxygen Sensor Behind Catalytic Converter
6. 15.6. Secure PDCC reservoir on the plenum panel.

Information

Select a place for the joint where there is enough space to join all the lines present.

Do not cut the lines too short in case they have to be laid in a different position if there is insufficient space in the area of the joint.

Information

The electric lines are located in the plenum panel and are thus exposed to the highest demands.

The greatest care must be used in the individual work steps for stripping insulation from, crimping, and shrinking/insulating the electric lines.

The procedure for stripping insulation from, crimping, and shrinking/insulating the electric lines must be complied with and observed. The procedures are described in detail in the Repair kit for Cayenne harnesses NR.155-2  .

Crimping samples are to be prepared before beginning work.

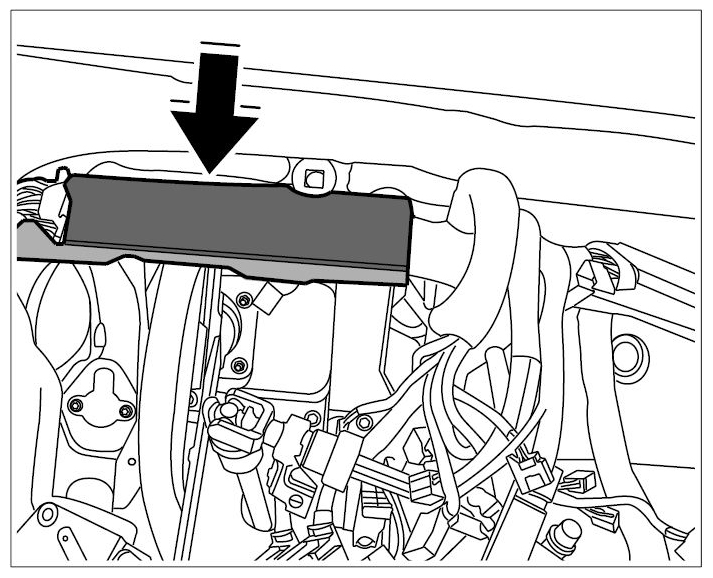

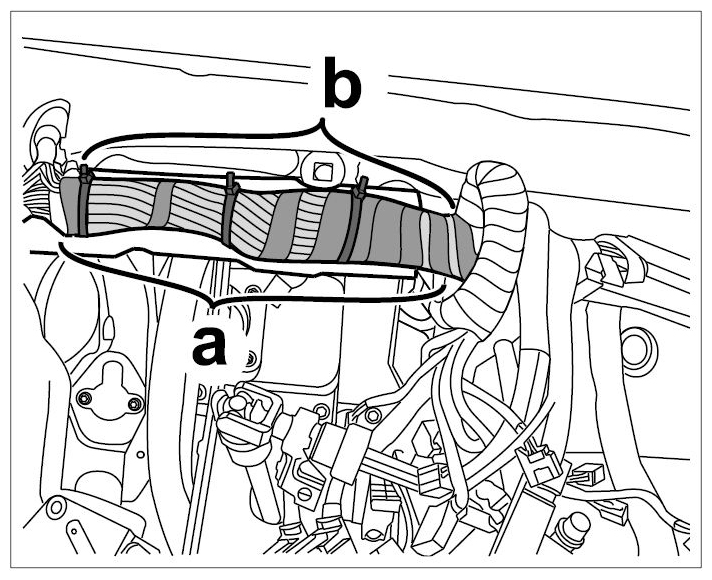

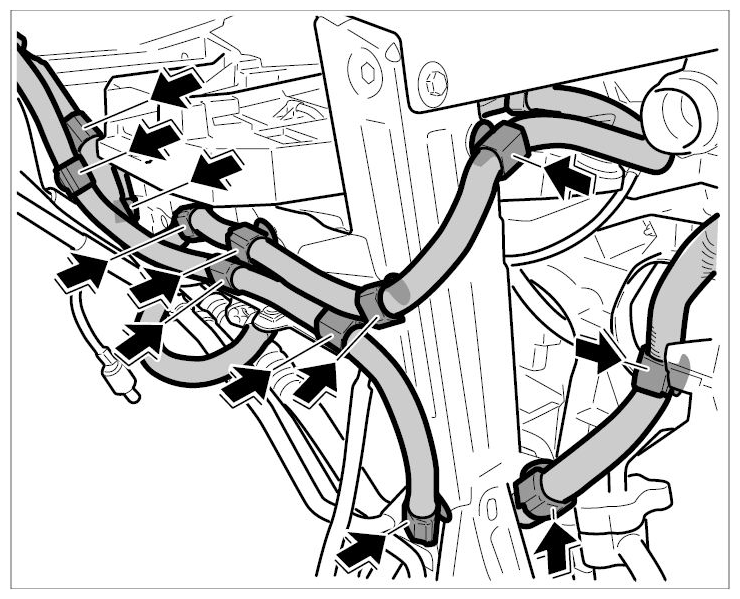

Fig 14: Connecting And Routing Front Left Wire Harness

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 16.1. Cut off lines in different lengths (due to shrink-fit connections).
2. 16.2. Slide shrink-fit hoses onto the lines.
3. 16.3. Strip 10 mm of insulation off the lines.
4. 16.4. Crimp the lines using crimping sleeves and the hand crimping pliers  from the repair kit for wiring harnesses Nr.155-1  .
5. 16.5. Slide the shrink-fit hoses over the crimp connections and carefully shrink them using the hot-air blower with special nozzle  (recommended accessories for the repair kit for wire harnesses) so that they are watertight.
6. 16.6. Wrap commercially available PVC tape all around the area of the connection points.
7. 16.7. Secure the repaired area -b-  to the main wire harness with tie-wraps.
