Installing Main Wiring Harness - Centre Console

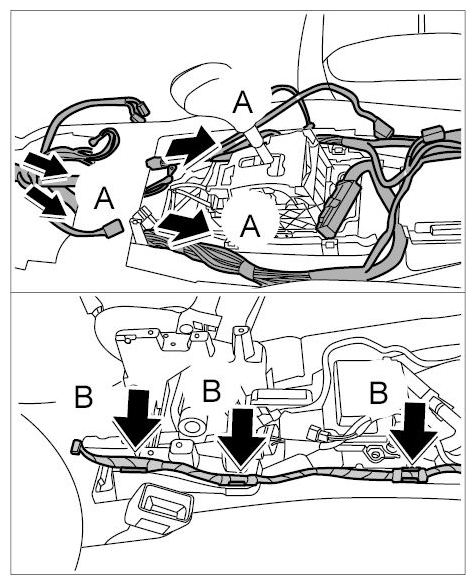

1. Pass the wire harness through and under the floor carpeting -Arrows A-  and position in the wiring ducts.
   Fig 1: Pressing Wire Harness With Wiring Duct Into Pedal Block

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Clip in the line -Arrows B-  .

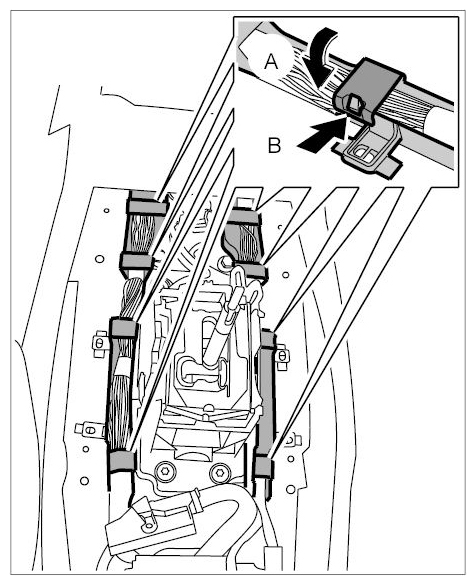

3. Close wiring ducts -Arrow A-  until locking tabs are felt to engage -B-  .
   Fig 2: Closing Wiring Ducts

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

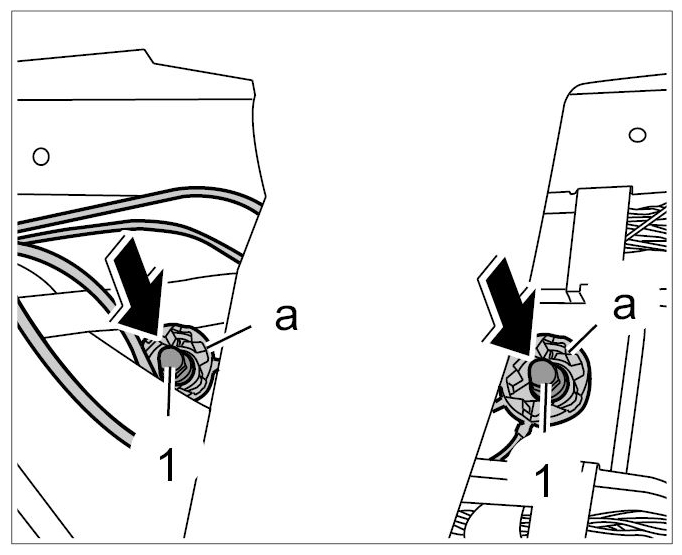

4. Place lines with twist locks -a-  on the threaded bolts -arrows-  and tighten with fastening nuts -1-  → Tightening torque: 6.5 ftlb.  .
   Fig 3: Locating Twist Locks And Fastening Nuts

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

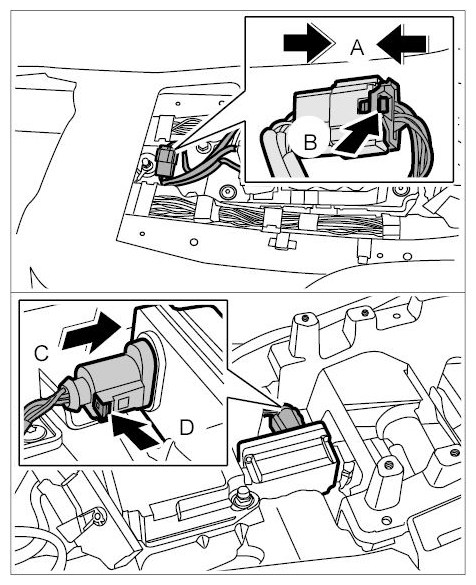

5. Push together plug connection -Arrows A-  until the locking tabs -B-  are felt to engage.
   Fig 4: Pushing Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Push connector onto ESP multiple sensor -Arrow C-  until locking tab -D-  is felt to engage.

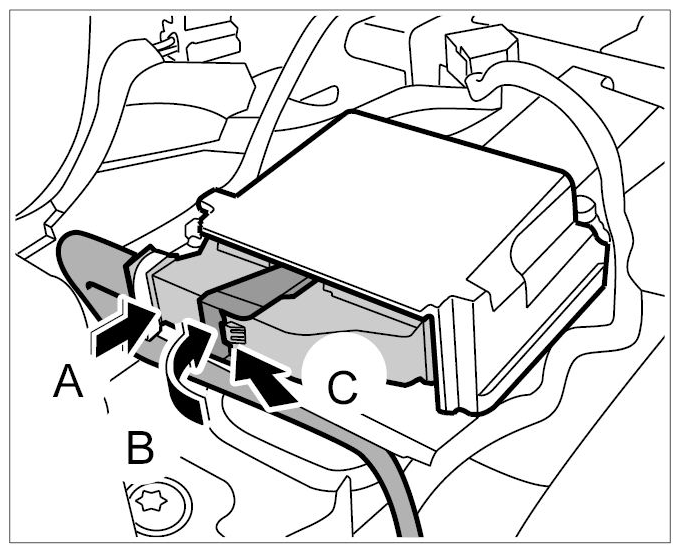

7. Push connector onto airbag triggering unit -Arrow A-  .
   Fig 5: Pushing Connector Onto Airbag Triggering Unit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Close securing clip -Arrow B-  until the locking tab -C-  is felt to engage.

Install main wiring harness - roof area. Install fuse element for auxiliary battery → Installing Fuse Element For Auxiliary Battery  .

Install main wire harness - floor area and left-hand side → Installing Main Wiring Harness - Floor Area And Left-Hand Side  .

Install main wire harness - floor area and right-hand side → Installing Main Wiring Harness - Floor Area And Right-Hand Side  .

Install main wire harness - engine compartment → Installing Main Wiring Harness - Engine Compartment  .

Install dashboard bracket → Installing bracket for the dashboard .

Install heater/air-conditioning unit → Installing Heater/Air-Conditioning Unit .

Install centre console → Installing Centre Console .

Connect the battery → WM 9000IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY (ALL MODELS) .
