Preliminary Work

Information

• The engine does not have to be removed in order to remove and install the hydraulic pump.
• The hydraulic pump in the V6 engine is accessible from beneath.

Information

• Before removing the cover of the air cleaner box, the intake manifold must be disengaged from the air cleaner housing.
• Loosen the pulley of the hydraulic pump before removing the drive belt.

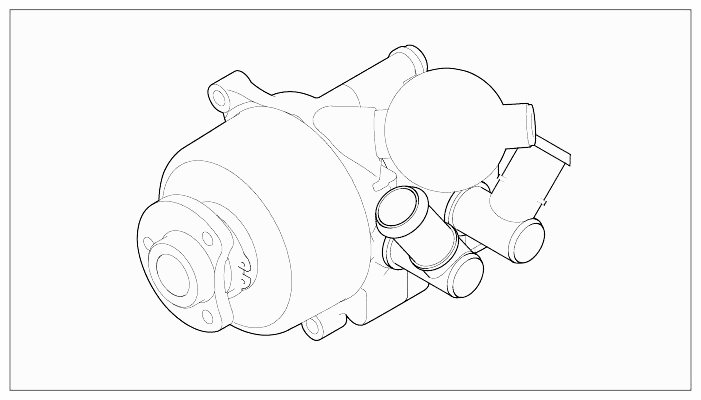

  Fig 1: Identifying Hydraulic Pump PDCC/V6

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Remove the left engine compartment cover. → Removing front trim (engine compartment)
2. Disconnect intake manifold on air cleaner cover. To do this, turn the -pins 180°-  and pull them out. Then set the intake manifold aside.

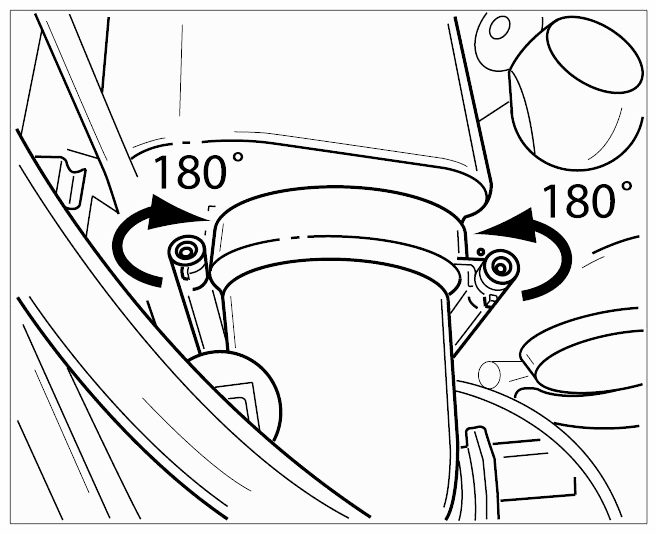

   Fig 2: Turning Intake Manifolds Pins 180

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Remove air cleaner. → Removing and installing air-cleaner element .
4. Remove front left wheel housing liner. → WM 505619 REMOVING AND INSTALLING FRONT WHEEL HOUSING LINER
