Installing The Steering Column

Information

• Observe the tightening sequence of steering column at mounting bracket.
• Once the battery is disconnected, perform the work required for full restoration of normal driving. →  WM 9000IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY (ALL MODELS)  .
• Calibrate steering-angle sensor. →  Calibrating steering-angle sensor
• The electronic steering column lock (ELV) must be taught using the Porsche System Tester by selecting the menu items >> Kessy >> Learning functions >> Teach ELV <<. You can get the necessary immobiliser code from IPAS or from your importer by specifying the vehicle identification number.
• The electrically adjustable steering column must be adapted in the vehicle →  WM 729319 REMOVING AND INSTALLING CONTROL UNIT FOR MEMORY SEAT ADJUSTMENT  .
• Always replace the fastening screw for the universal joint of the steering column.

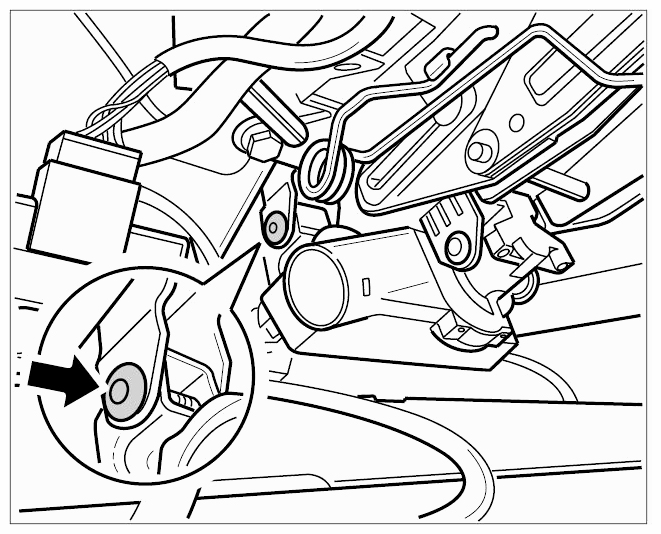

  Fig 1: Locating Fastening Screw For Universal Joint

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
• Replace locking screws and nuts.
• Visually inspect all parts.
• Observe correct tightening. →  WM 4800TW TIGHTENING TORQUES FOR STEERING (ALL MODELS)   .

The steering column must only be replaced as a complete unit. Individual components cannot be disassembled and replaced.

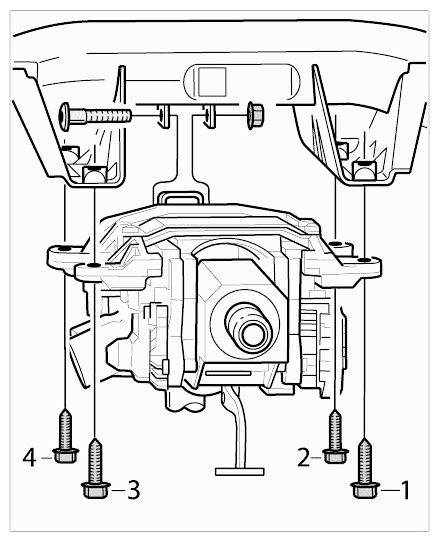

1. Insert the steering column and the fastening screws in the order indicated -1, 2, 3, 4-  on the assembly cross member.
   Fig 2: Identifying Steering Column Fastening Screws Order

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

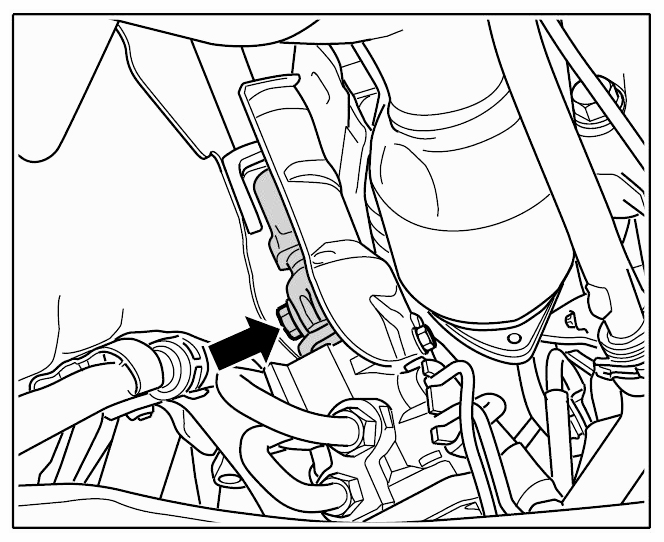

2. Fit fastening screw to mounting bracket (mount of upper universal joint), cardanic, free of warping (movable in every direction).
   Fig 3: Locating Upper Universal Joint Mount

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

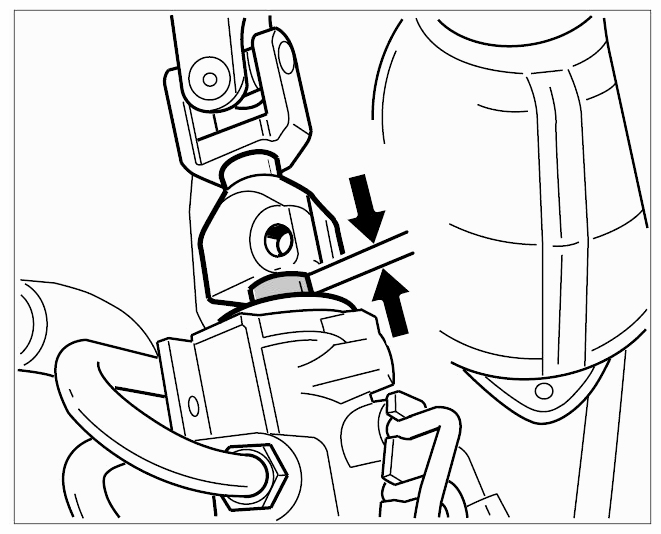

3. Slide the steering shaft (universal joint) to correct position, steering gear in centre position, as far as it will go. When fitted correctly and tension-free, the universal joint must be at a maximum distance of 4 mm from the outermost edge of steering gear dust boot.
   Fig 4: Identifying Max. Distance Of Universal Joint From Steering

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Fit heat shield and primary catalytic converter → Installing primary catalytic converter .
5. Install main catalytic converter → Installing (main) catalytic converter
6. Fit steering-column switch → Installing steering-column switch .
7. Fit steering wheel → Installing steering wheel  .
8. Install airbag unit → Installing driver's airbag unit .

   Information

• Observe the tightening sequence of steering column at mounting bracket.
• Once the battery is disconnected, perform the work required for full restoration of normal driving. →  WM 9000IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY (ALL MODELS)
• →  WM 456005 INITIALISING AND CALIBRATING STEERING-ANGLE SENSOR  .
• The electronic steering column lock (ELV) must be taught using the Porsche System Tester by selecting the menu items >> Kessy >> Learning functions >> Teach ELV <<. You can get the necessary immobiliser code from IPAS or from your importer by specifying the vehicle identification number.
• The electrically adjustable steering column must be adapted in the vehicle →  WM 729319 REMOVING AND INSTALLING CONTROL UNIT FOR MEMORY SEAT ADJUSTMENT  .
• Always replace the fastening screw for the universal joint of the steering column.

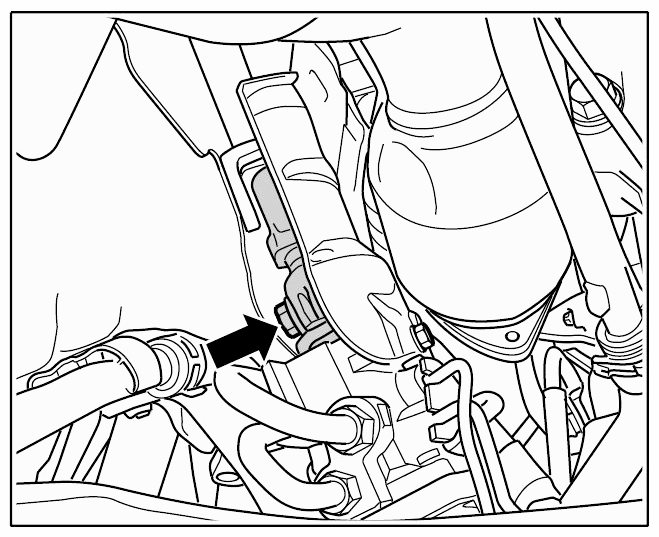

  Fig 5: Locating Fastening Screw For Universal Joint

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
• Replace locking screws and nuts.
• Visually inspect all parts.
• Observe correct tightening torques →  WM 4800TW TIGHTENING TORQUES FOR STEERING (ALL MODELS)

The steering column must only be replaced as a complete unit. Individual components cannot be disassembled and replaced.

1. Insert the steering column and the fastening screws in the order indicated -1, 2, 3, 4-  on the assembly cross member.
   Fig 6: Identifying Steering Column Fastening Screws Order

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Fit fastening screw to mounting bracket (mount of upper universal joint), cardanic, free of warping (movable in every direction).
   Fig 7: Locating Upper Universal Joint Mount

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

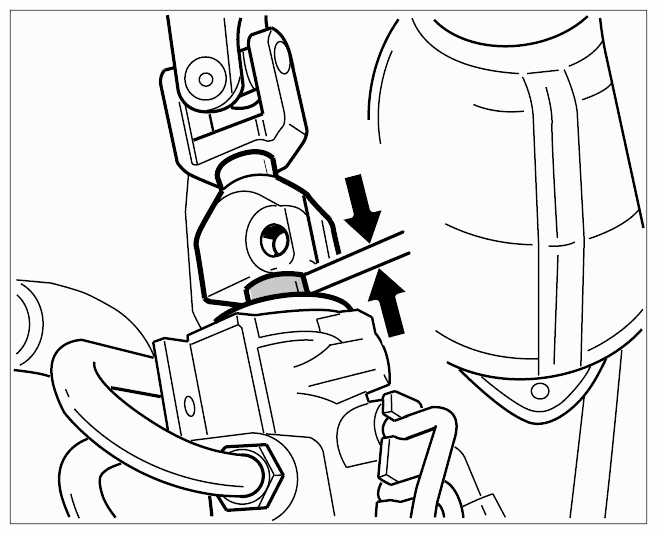

3. Slide the steering shaft (universal joint) to correct position, steering gear in centre position, as far as it will go. When fitted correctly and tension-free, the universal joint must be at a maximum distance of 4 mm from the outermost edge of steering gear dust boot.
   Fig 8: Identifying Max. Distance Of Universal Joint From Steering

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Fit steering-column switch Installing steering-column switch .
5. Fit steering wheel → Installing steering wheel  .
6. Install airbag unit Installing driver's airbag unit .
