Subsequent Work

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

When installing the pneumatic spring for the rear window, make sure that the oil pressure lines -1- from the actuating cylinder are routed over the pneumatic spring -2- .

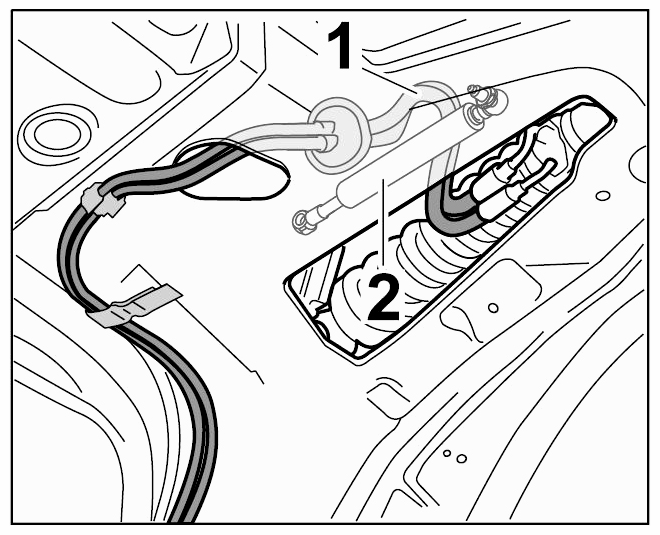

Fig 1: Identifying Oil Pressure Line Routing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Install pneumatic spring for rear window. → Installing Pneumatic Spring For Rear Window
Install hydraulic unit for rear lid. → Installing Hydraulic Unit For Rear Lid
