Installing Hydraulic Unit For Rear Lid

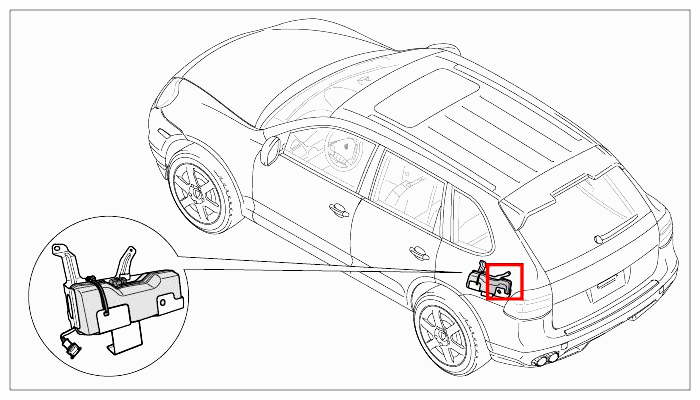

Fig 1: Identifying Installation Position Of Hydraulic Unit For Rear Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Two people are needed for steps 1 to  5.

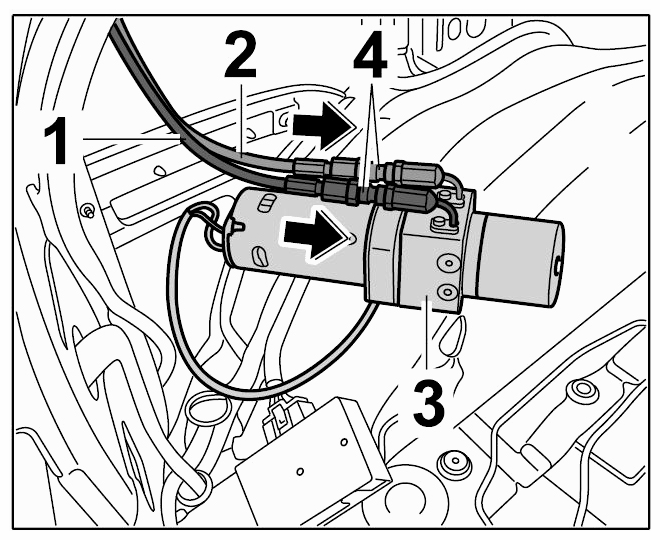

1. Connect oil pressure lines -1 and 2-  onto the hydraulic unit -3- (-arrows-)  until the plug-in couplings -4-  engage securely.
   Fig 2: Connecting Oil Pressure Lines

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

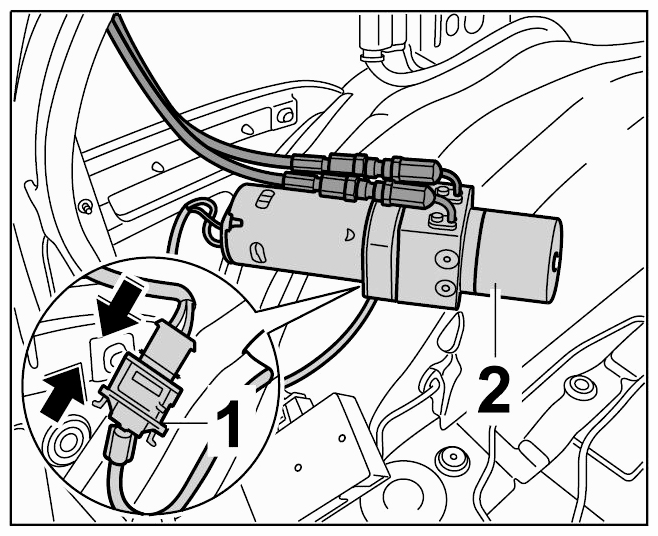

2. Push plug connection together -1-  at the hydraulic unit -2- (-arrows-)  until the plug connection -1-  engages securely.
   Fig 3: Connecting Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Bleed the hydraulic system.
   1. 3.1. Hold the hydraulic unit horizontally while bleeding it.
   2. 3.2. Lower transmission jack slightly and push to the side.
   3. 3.3. Open and close the rear lid 2-3 times automatically.

      The system has a self-bleeding feature. Several operations will bleed the system. After bleeding check the hydraulic oil level in the hydraulic unit's reservoir, correct if necessary. → General Information On The Hydraulic Unit

4. Open the rear lid.

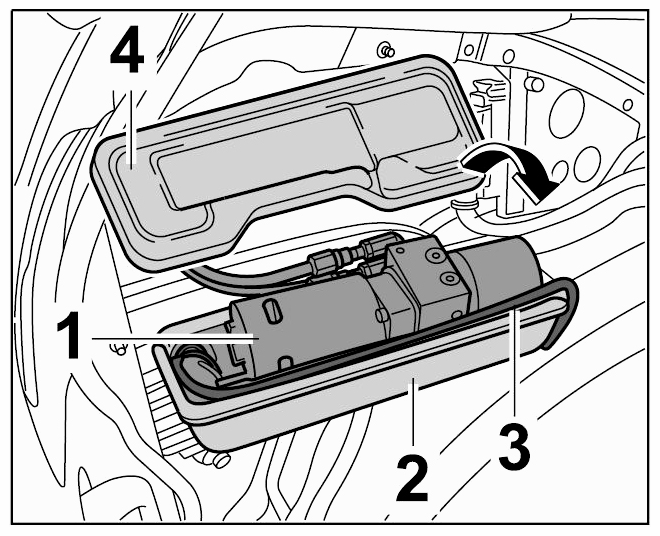

5. Place hydraulic unit -1-  into the lower part of the sound capsule -2-  , route wire harness -3-  and position upper part of sound capsule -4- (-arrow-).
   Fig 4: Installing Hydraulic Unit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   In order to prevent noises, the catch of the tie-wrap must be located on top of the sound capsule.

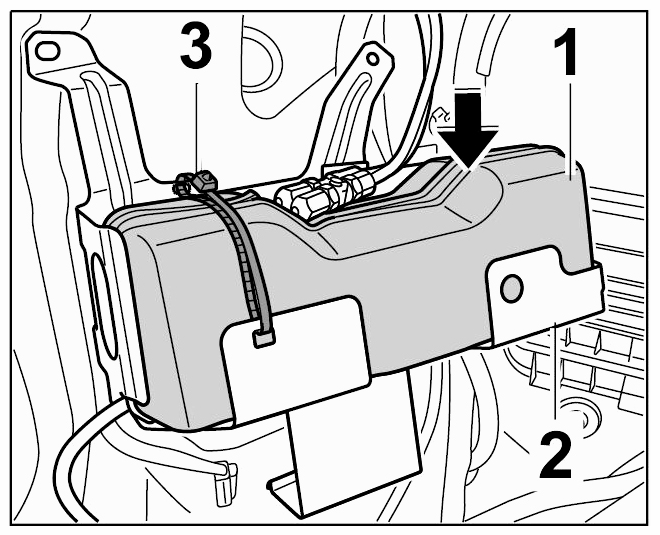

6. Insert sound capsule -1-  with the hydraulic unit into the holder -2- (-arrow-)  and secure loosely with a tie-wrap -3-  so that the sound capsule is pressed together slightly.
   Fig 5: Installing Hydraulic Unit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Position holder -1-  with the hydraulic unit on the body -arrow-  and screw down using the fastening nuts -2-  . → Tightening torque: 9.7 Nm (7.0 ft lbs.)

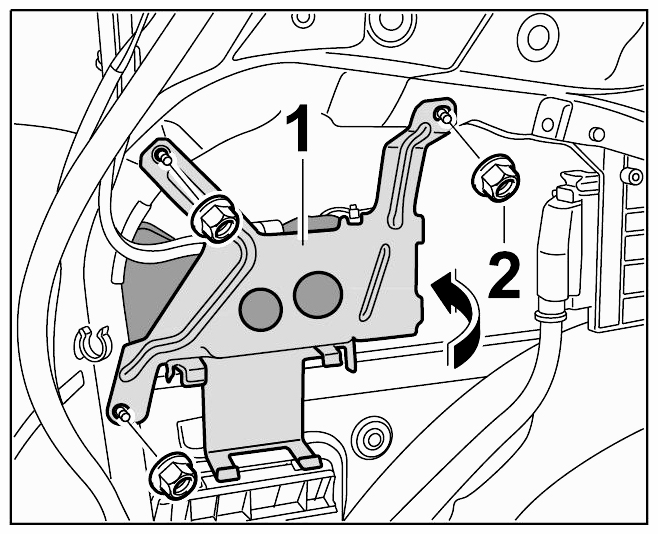

   Fig 6: Installing Holder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

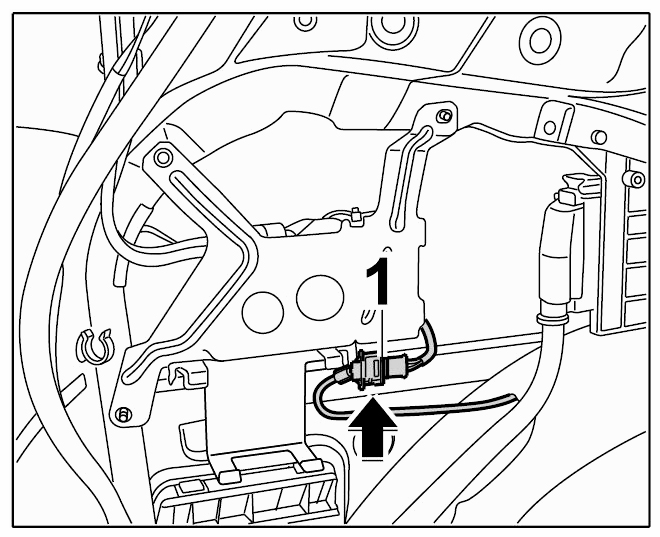

8. Clip plug connection -1-  into the retaining clip -arrow-  .
   Fig 7: Clipping In Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   When routing the oil pressure lines, ensure that the oil pressure lines lie against the edge in the area of the piping -6-  or rubber strips -7-  .

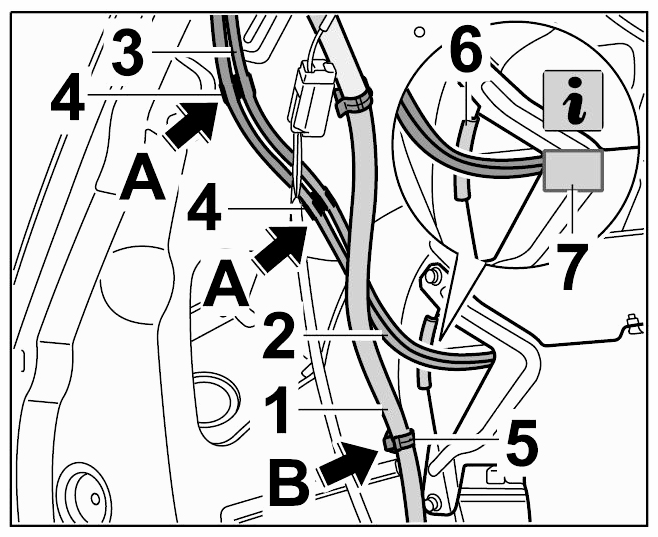

9. Secure lines.
   Fig 8: Securing Oil Pressure Lines

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 9.1. Clip oil pressure lines -2 and 3-  flush (colour marking) into the holders -4- (-arrows A-)  .
   2. 9.2. Clip water drain hose -1-  into the holder -5- (-arrow B-).

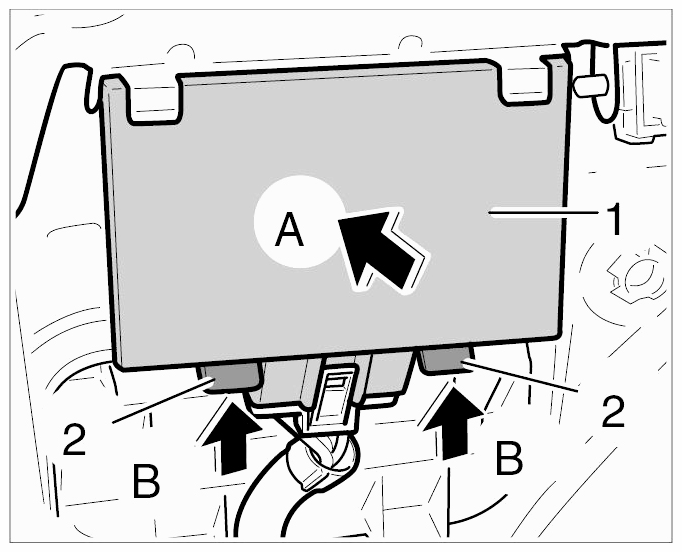

10. Insert rear lid control unit -1-  into the holder -2-  from below and press in -arrow A- until the two clips engage securely -arrows B-  .
    Fig 9: Installing Rear Lid Control Unit

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• Only for vehicles without auxiliary air conditioner.

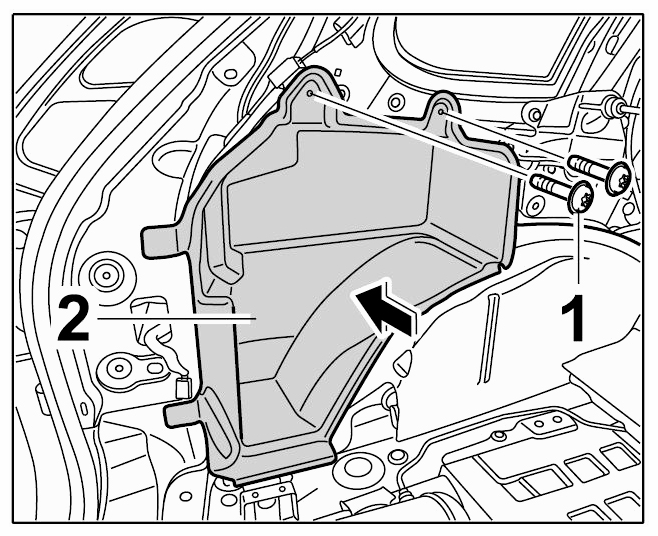

Position package box -2-  on the body -arrow-  and secure with the fastening screws -1-  .
