Installing Front Lid

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

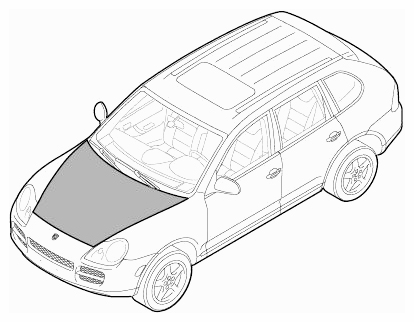

Fig 1: Identifying Front Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Install front lid.
1. 1.1. Position -1- front lid -Arrow A- .
2. 1.2. Screw fastening nuts -2- onto studs and position carefully -Arrow B- .

  Fig 2: Installing Front Lid
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

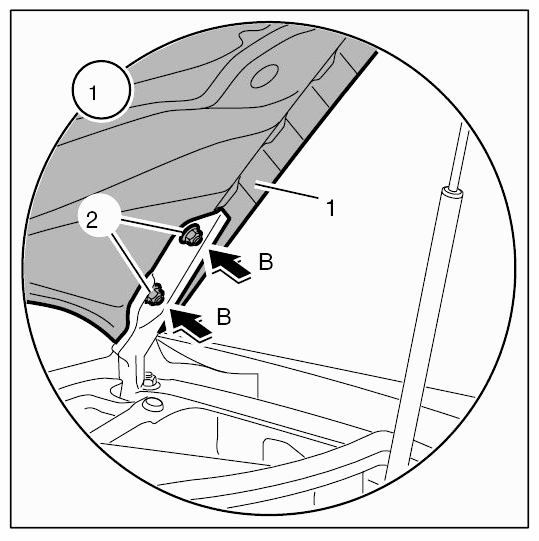

  Fig 3: Installing Fastening Nuts And Studs
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install pneumatic spring on front lid → Installing Front Pneumatic Spring
Adjust front lid → 552215 ADJUSTING FRONT LID .
Tighten fastening nuts -2- → Tightening torque: 15 ft lbs.+/-2 ft lbs..
Install wire harness on front lid → Installing wire harness for bonnet
Install insulation for front lid
Closing front lid
