Installing Wire Harness For Bonnet

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

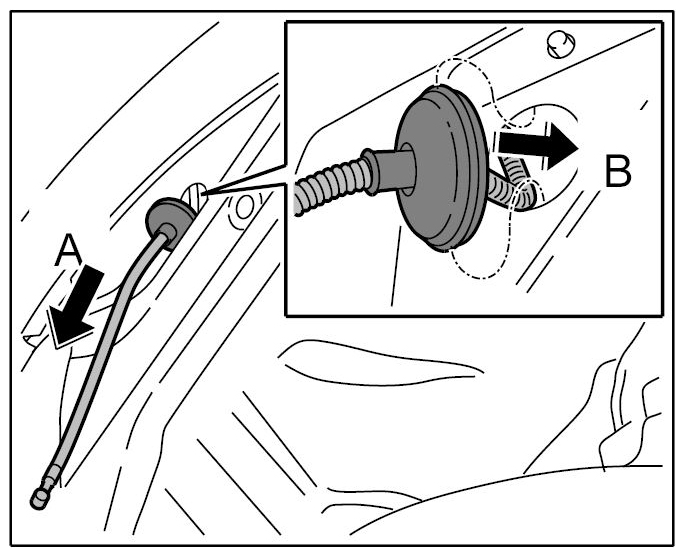

Push the water line of the windscreen washer system together with the rubber sleeve from the engine compartment side outwards through the spring strut mount -arrow A- .

Fig 1: Installing Rubber Sleeve On Spring Strut Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install rubber sleeve from the wheel housing side on the spring strut mount -arrow B- .
Information
- During removal, replace damaged clips with repair clips.

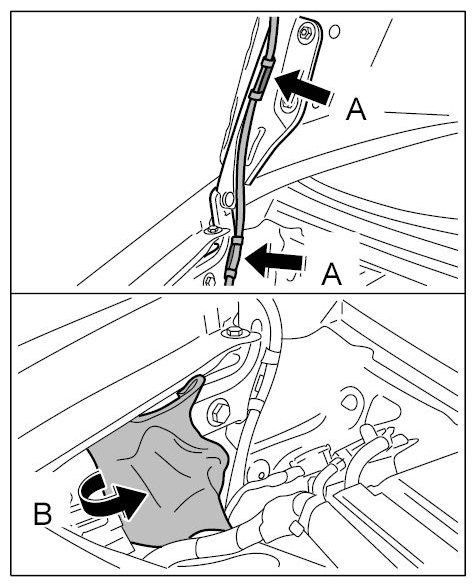

Clip wiring harness to bonnet hinge -arrows A- and fold the insulating mat back into its original position -arrow B- .

Fig 2: Clipping In Wiring Harness And Folding Back Insulating Mat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

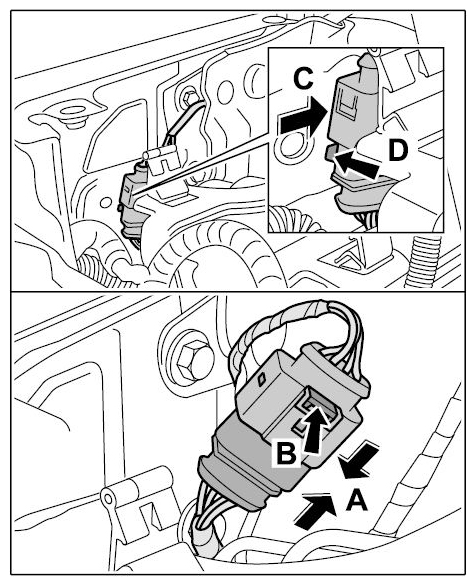

Push plug connection together -arrows A- until the locking lug -arrow B- is felt to engage.

Fig 3: Connecting Plug Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push plug connection into clip -arrow C- until the locking lug -arrow D- is felt to engage.

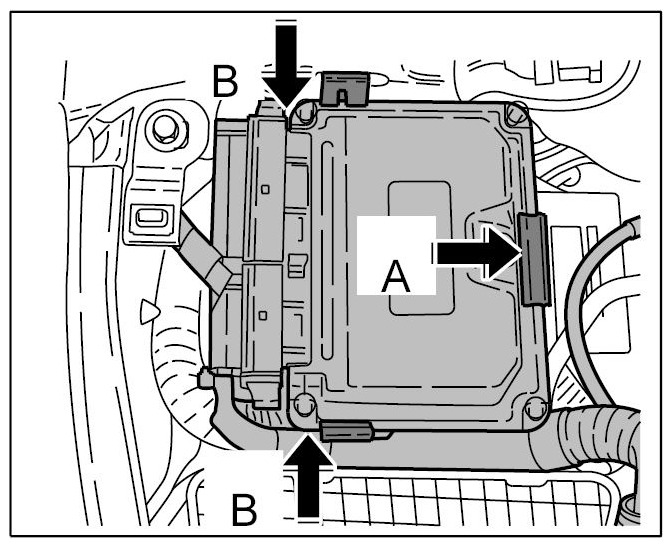

Push DME control module into the holder -arrow A- and press downwards on the side of the plug until the control unit is felt to engage in the lock -arrows B- .

Fig 4: Installing DME Control Module
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- During removal, replace damaged clips with repair clips.

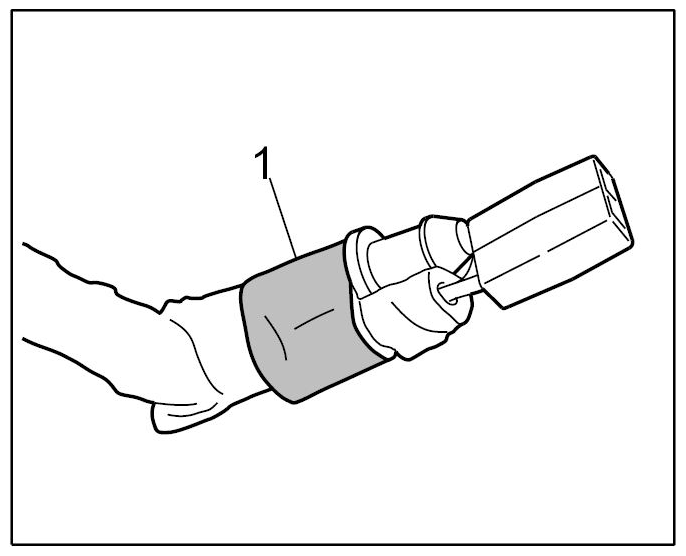

- Fasten the plugs of the heatable washer nozzle to the water line with adhesive tape -1- to make it easier to push through to the windscreen washer nozzles. After pushing through, remove the adhesive tape again.

  Fig 5: Fastening Plugs To Water Line Using Adhesive Tape
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

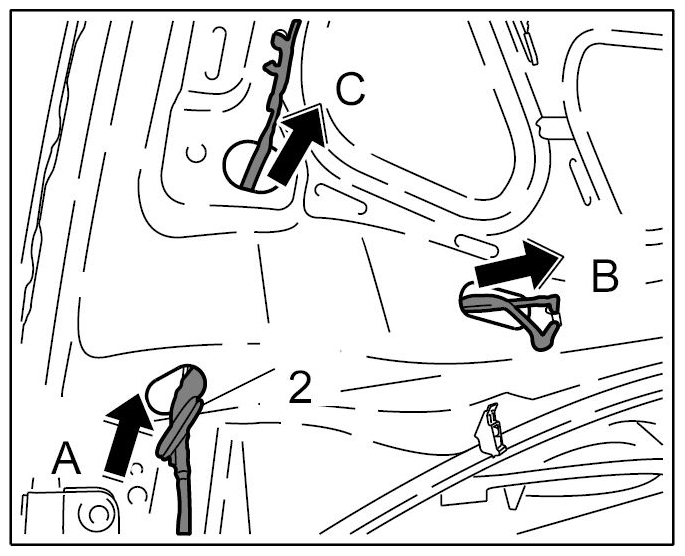

Push wiring harness into the bonnet reinforcement -arrow A- .

Fig 6: Pushing In Wiring Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push water line, together with the electrical wire, through to the windscreen washer nozzles and pull out at the openings -arrow B- .
Pull the wiring harness to the engine compartment light out of the bonnet reinforcement -arrow C- .
Fit rubber sleeve -2- .

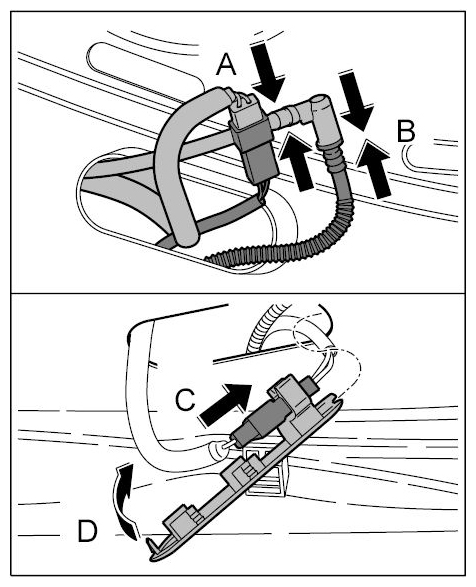

Push together the cable for the washer nozzle heating and the water line -arrows A and B- .

Fig 7: Pushing Cable And Water Line Together
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push the plug connection into the cover -arrow C- .
Engage cover in the bonnet and fold it upwards -arrow D- until the cover is felt to engage.
Information
- During removal, replace damaged clips with repair clips.

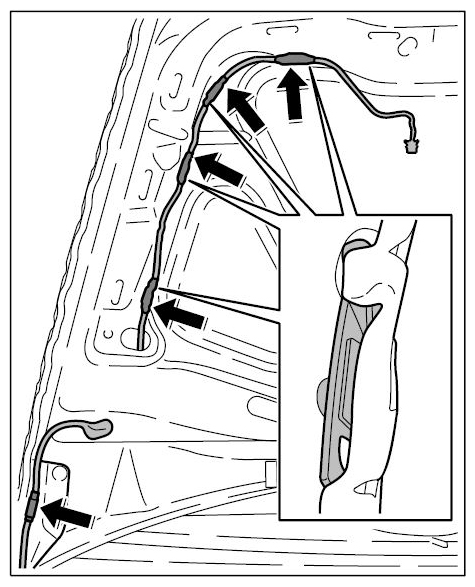

Clip the wiring harness for the engine compartment light into the bonnet -arrows- .

Fig 8: Wiring Harness Fastening Points
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

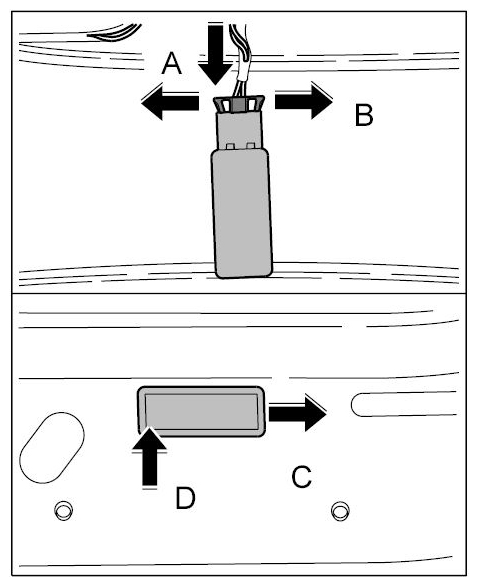

Connect plug to engine compartment light -arrow A- until the lock is felt to engage -arrows B- .

Fig 9: Installing Engine Compartment Light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert engine compartment light into the bonnet -arrow C- and press it in -arrow D- until it is felt to engage.
