Adjusting Front Lid Adjusting Lid

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

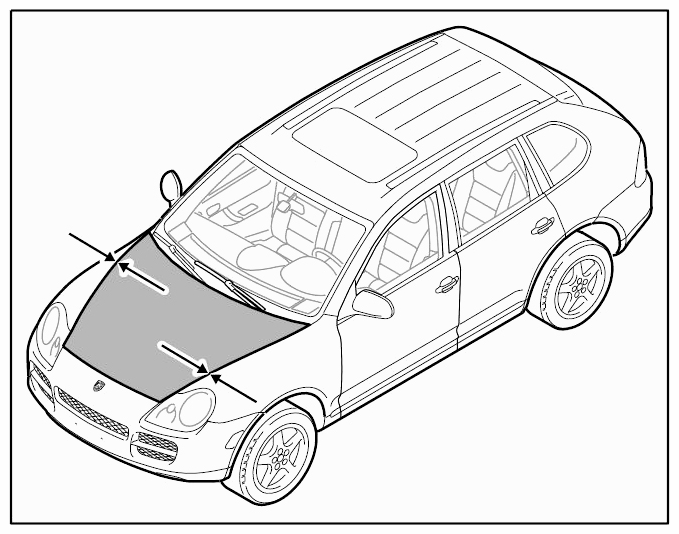

Fig 1: Identifying Lid Adjusting Section

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

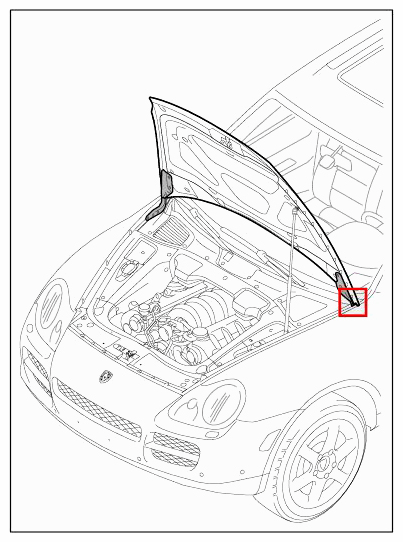

Fig 2: Identifying Front Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Check adjustment. → Test and adjustment value: 3.5 mm+/-0.8 mm → Test and adjustment value: 4 mm+1 mm → Test and adjustment value: 1 mm → Test and adjustment value: 3.5 mm+/-0.8 mm
Adjusting lid in X and Y direction
Undo fastening nuts on front lid.
1. 2.1. Undo fastening nuts -2- on both sides on front cover -1- .

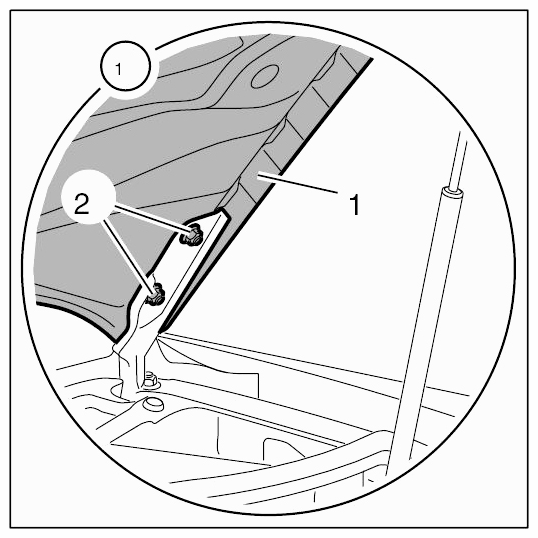

  Fig 3: Identifying Fastening Nuts
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjusting lid in Z direction
Remove cowl panel cover → Removing cowl panel cover .
Undo fastening screws on front lid hinge.
1. 4.1. Undo fastening screws -4- on both front lid hinges -3- .

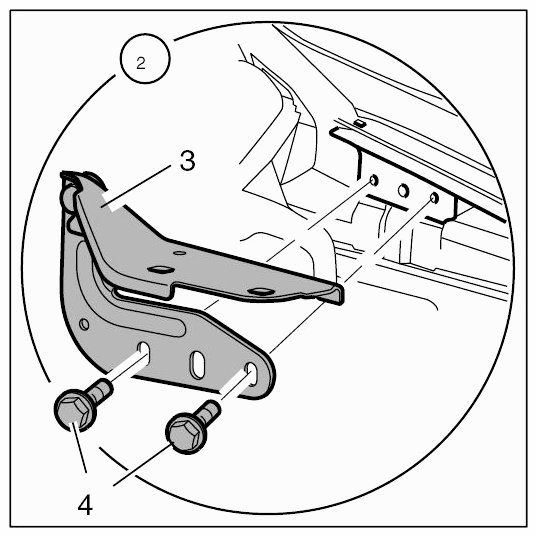

  Fig 4: Identifying Fastening Screws And Front Lid Hinges
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjust front lid.
1. 5.1. By moving the front lid -1- at the hinges -3- , adjust the contours according to the wings, main headlights and front spoiler.
2. 5.2. Tighten fastening nuts -2- and fastening screws -4- to specified tightening torque → Tightening torque: 15 ft lbs.+/-2 ft lbs. → Tightening torque: 15 ft lbs.+/-2 ft lbs..

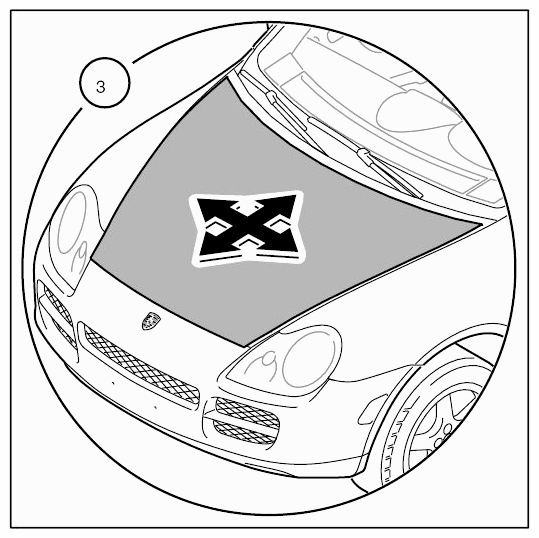

  Fig 5: Adjusting Front Lid
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit cowl panel cover → Installing cowl panel cover .
