Install Front Lock Lower Part

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

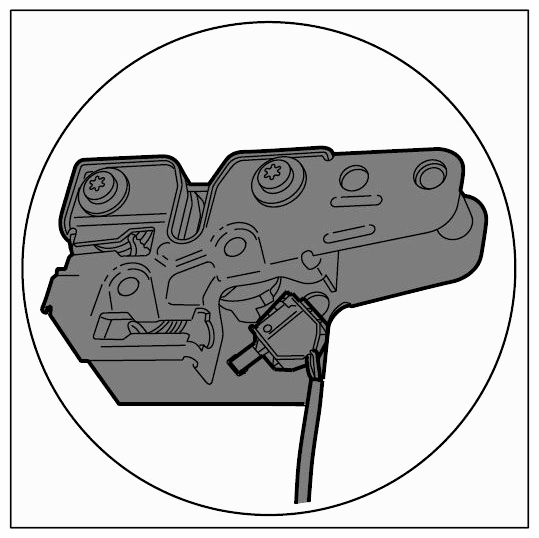

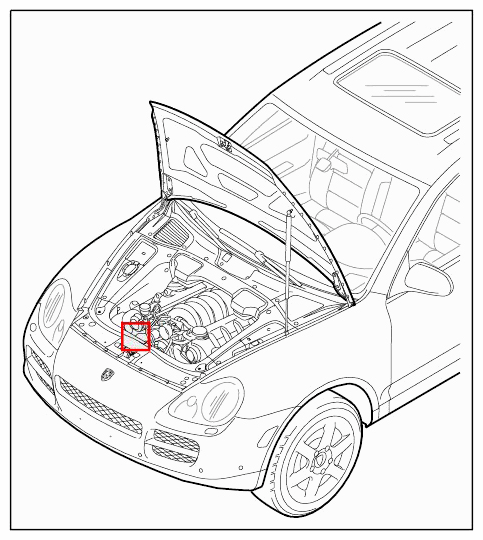

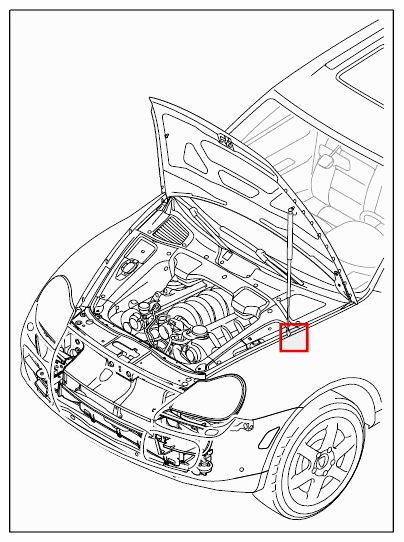

Fig 1: Identifying Front Lock Lower Part

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 2: Identifying Front Lock Lower Part

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Install lower part of lock.

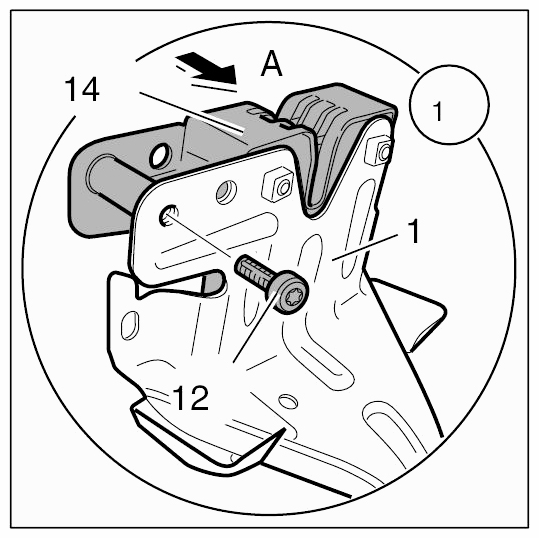

1. 1.1. Insert lower part of lock -14- into lock support -1- (-arrow A-).

  Fig 3: Inserting Lower Part Of Lock
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Information

  The holes in the lower part of the lock -14- and the thread in the lock support -1- must be aligned in centre position.

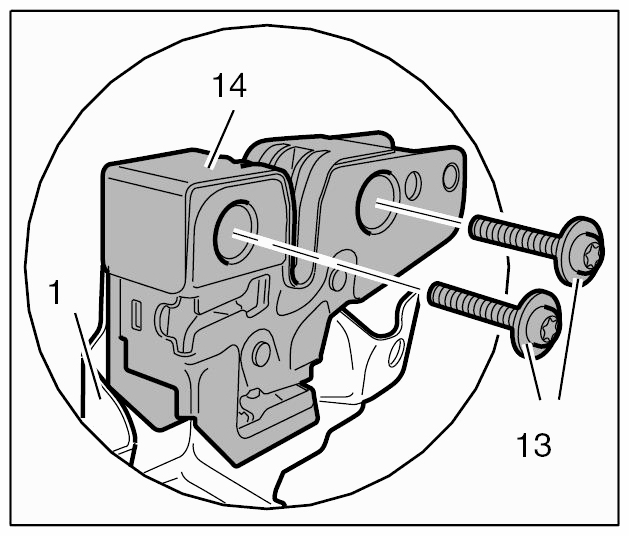

2. 1.2. Screw in fastening screws -12- and -13- and tighten to the specified tightening torque. → Tightening torque: 9 Nm (6.5 ft lbs.)+/-1 Nm (+/-0.5 ft lbs.)

  Fig 4: Installing Lower Part Of Lock Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 5: Identifying Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install contact switch for engine compartment light → Installing Contact Switch For Engine Compartment Light .
Install emergency release cable and front section of cable for front lid lock → Removing Rear Section Of Cable, Emergency Release Cable, And Front Section Of Cable
Install lock support.

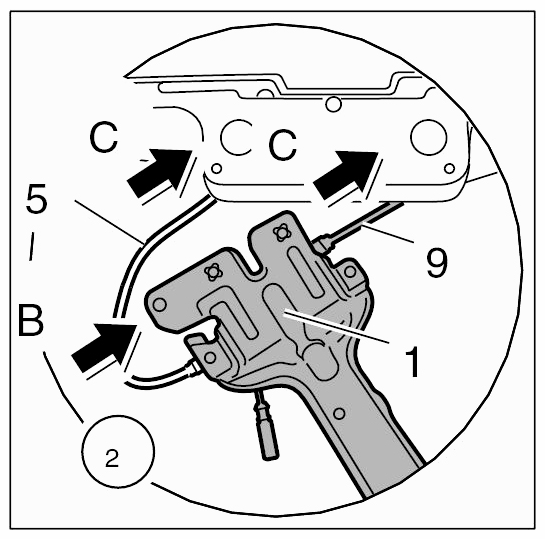

1. 4.1. Insert lock support -1- (-arrow B-) and push emergency release cable -5- and front section of cable for front lid lock -9- into the lock mount at the same time (-arrows C-).

  Fig 6: Installing Lock Support
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

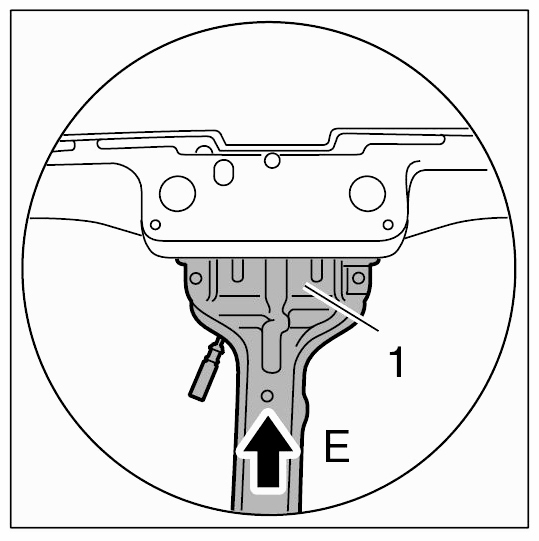

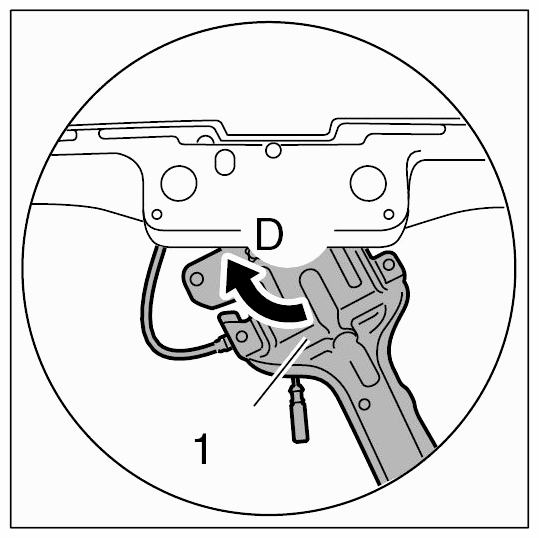

2. 4.2. Swivel lock support -1- upwards (-arrow D-) and move it up (-arrow E-).

  Fig 7: Installing Lock Support
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 8: Installing Lock Support
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 9: Removing Mounting Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fasten lock support.

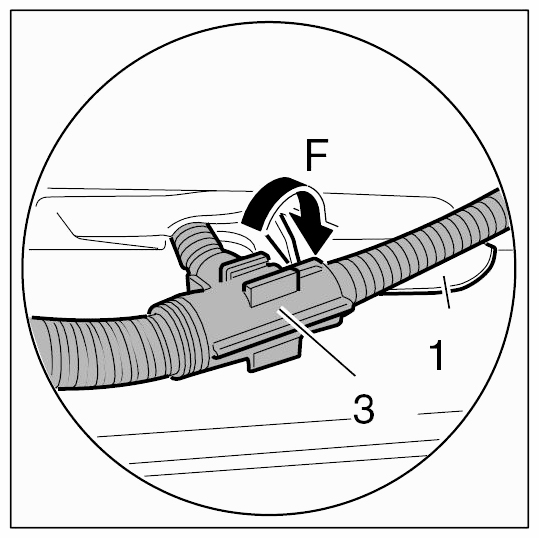

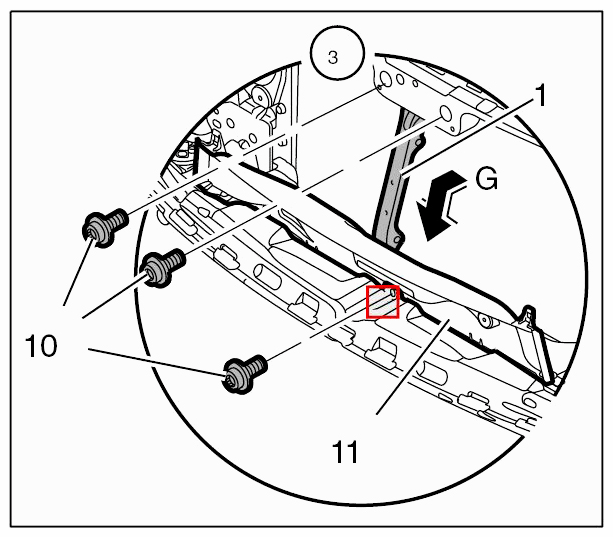

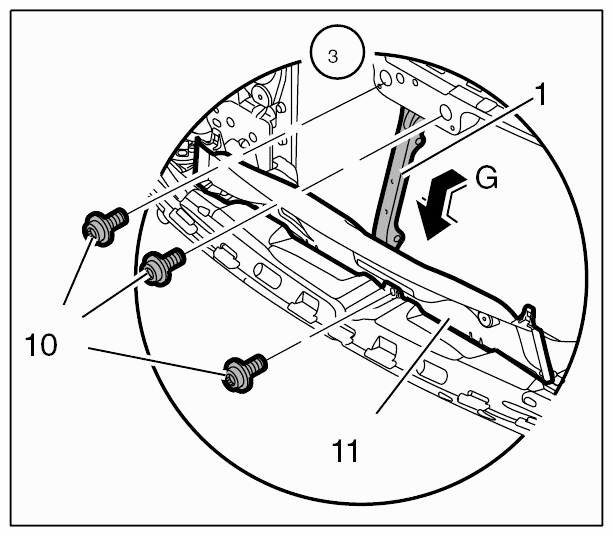

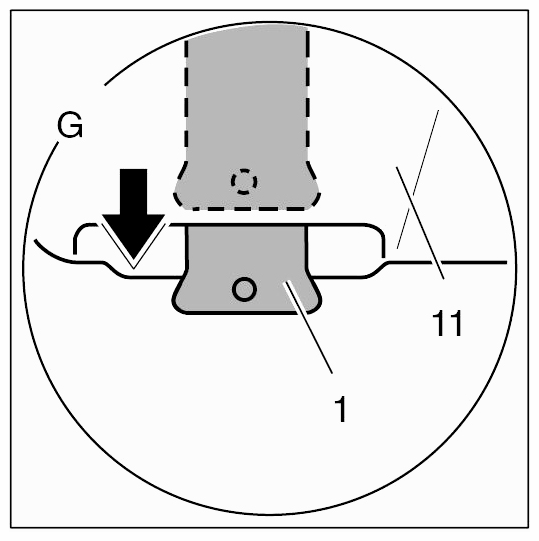

1. 5.1. Push wire harness -3- over the lock support -1- (-arrow F-), then hold lock support -1- and insert it down into the air guide -11- (-arrows G-) .

  Fig 10: Pushing Wire Harness
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 11: Inserting Air Guide
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 5.2. Screw in fastening screws -10- and tighten hand-tight.

  Fig 12: Removing Mounting Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 13: Identifying Front Lid Lock Cable
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect cable for front lid lock.

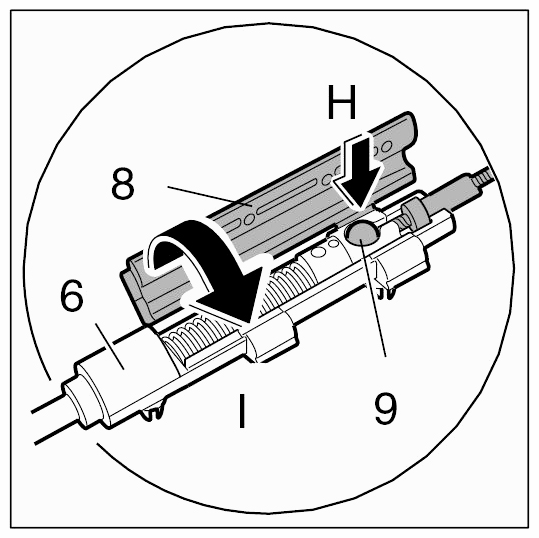

1. 6.1. Engage front section of cable for front lid lock -9- (-arrow H-) and close lid -8- at connection piece -6- (-arrow I-) until the locking lugs -7- engage audibly.

  Fig 14: Connecting Cable For Front Lid Lock
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

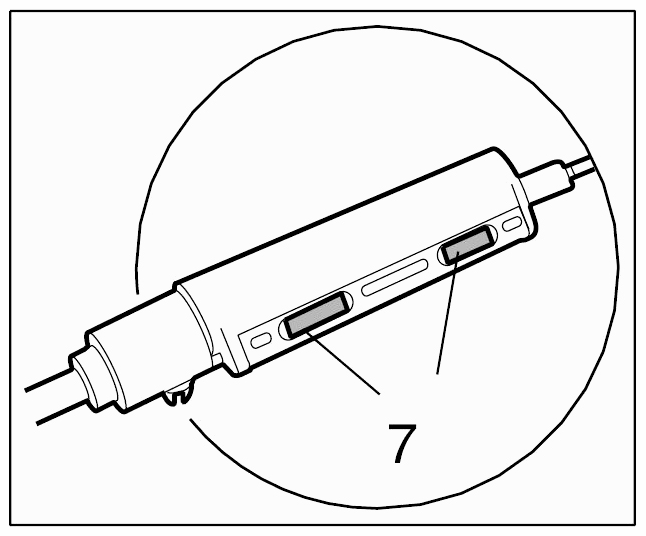

  Fig 15: Identifying Locking Lugs
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

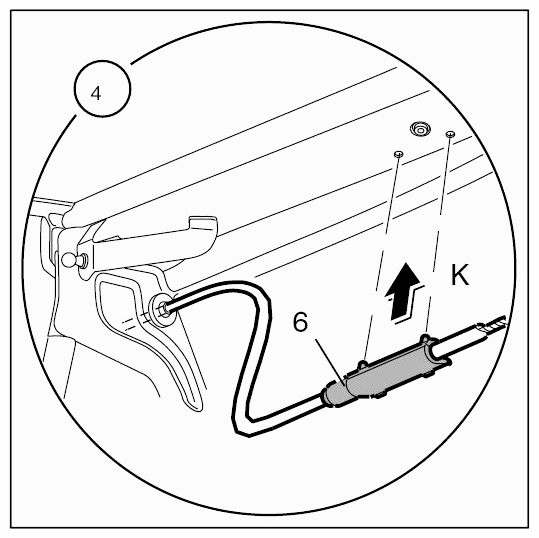

2. 6.2. Clip the connection piece -6- to the body (-arrow K-).

  Fig 16: Installing Clip Of Connection Piece
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip in emergency release cable.

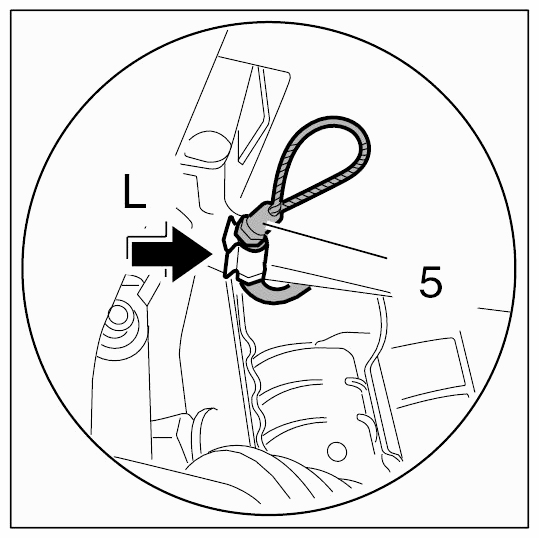

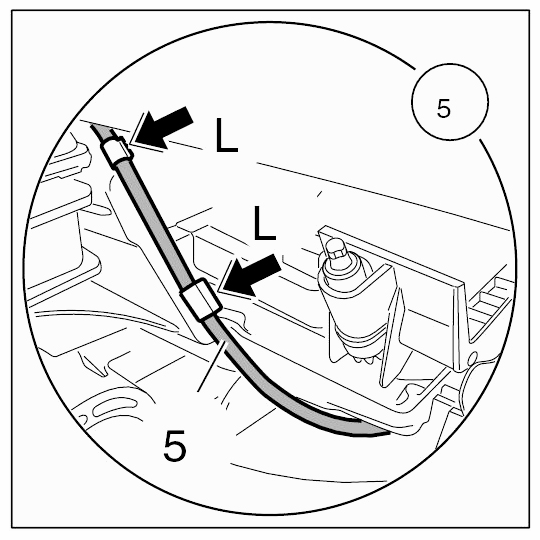

1. 7.1. Clip in emergency release cable -5- (-arrows L-) .

  Fig 17: Installing Clip Of Emergency Cable
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 18: Installing Clip Of Emergency Cable
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

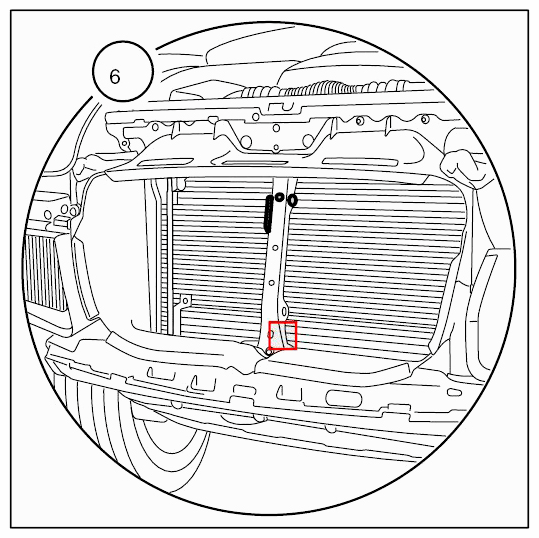

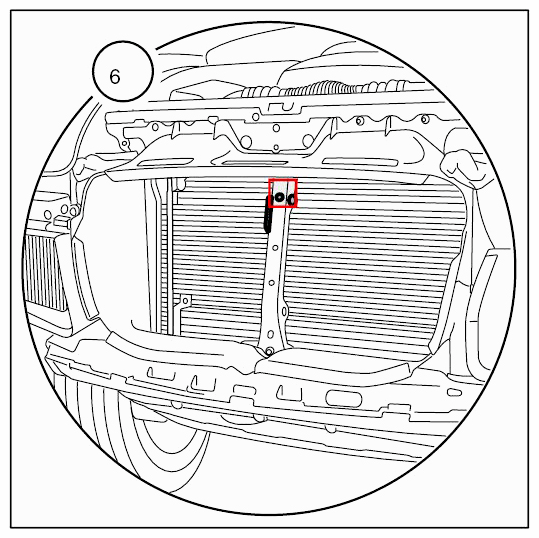

  Fig 19: Identifying Radiator Bracket Screw (Upper)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 20: Identifying Radiator Bracket Screw (Lower)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure wiring harness.

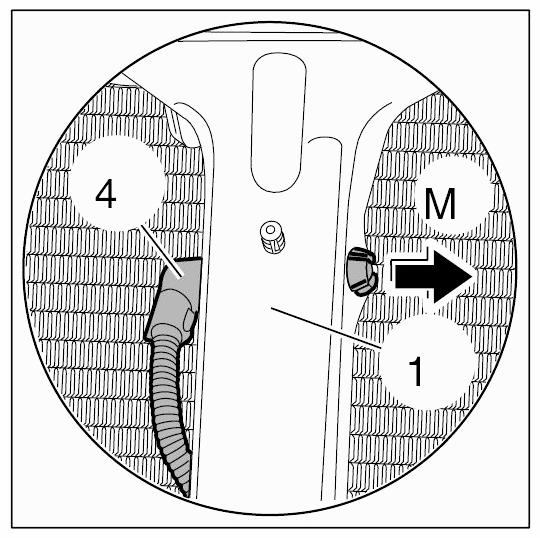

1. 8.1. Press temperature sensor -4- into the lock support -1- (-arrow M-) .

  Fig 21: Pressing Temperature Sensor Of Lock Support
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 8.2. Clip in wire -3- (-arrows N-) .

  Fig 22: Installing Clip Wire
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

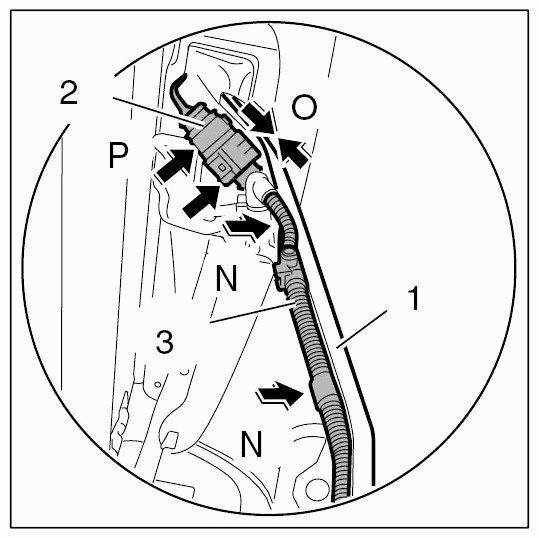

3. 8.3. Connect plug connection -2- until the locking lug (-arrow-) engages audibly (-arrows O-) and clip it onto the lock support -1- (-arrow P-) .

  Fig 23: Connecting Plug Connection
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjust lock support.
1. 9.1. Close front lid and check that the upper part of the lock engages correctly into the lower part of the lock. Adjust the position of the lock support -1- if necessary by moving it as required.
2. 9.2. Tighten fastening screws -10- to the specified tightening torque → Tightening torque: 9 Nm (6.5 ft lbs.)+/-1 Nm (+/-0.5 ft lbs.).

  Fig 24: Removing Fastening Screws With Specified Torque
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install front apron → Installing front apron .
Install front and side covers in engine compartment → Installing front trim (engine compartment) .
