Replacing Bulb

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Observe the installation instructions and bulb table. → Bulb table and installation instructions

Remove the rear light. → Removing Rear Light
Unscrew fastening screws -1- and fold over contact plate -2- in -direction of arrow- .

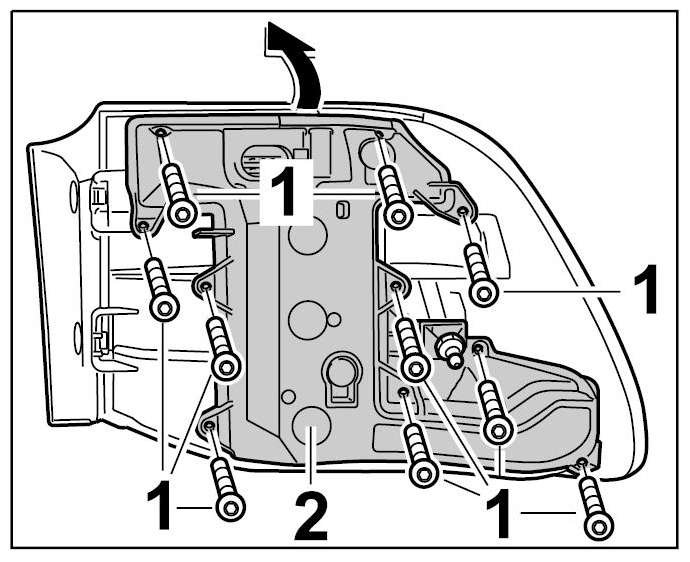

Fig 1: Releasing Contact Plate
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press damaged bulb into holder, turn and remove it.
1. Rear fog light. P 21 W
2. Direction indicator light. P 21 W
3. Reverse light. P 21 W

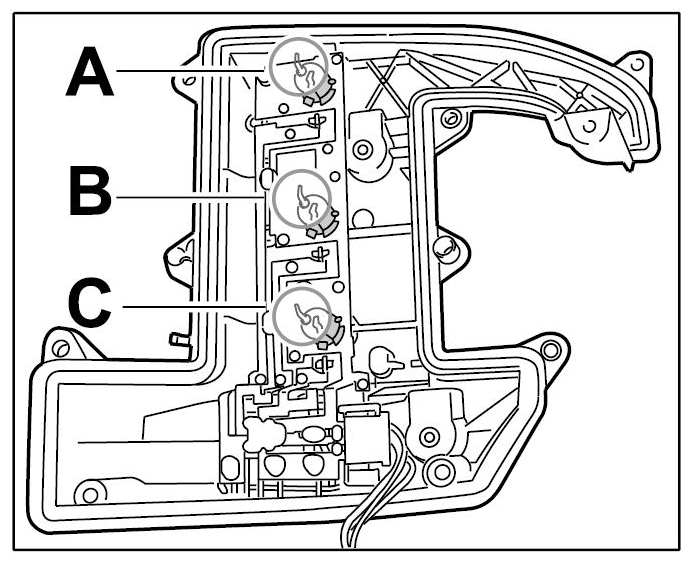

  Fig 2: Identifying Rear-Light Bulbs
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert new bulb, press into holder and turn it. Check that bulb is seated correctly.
Fold over contact plate -2- in -direction of arrow- and use the fastening screws -1- to secure it to the rear light.

Fig 3: Securing Contact Plate
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install rear light. → Installing Rear Light
