Removing Rear Light

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

Open rear lid.
Remove rear light.
1. 2.1. Unclip both caps -1- using a small screwdriver -Arrow- .
2. 2.2. Unscrew the two fastening screws -2- .

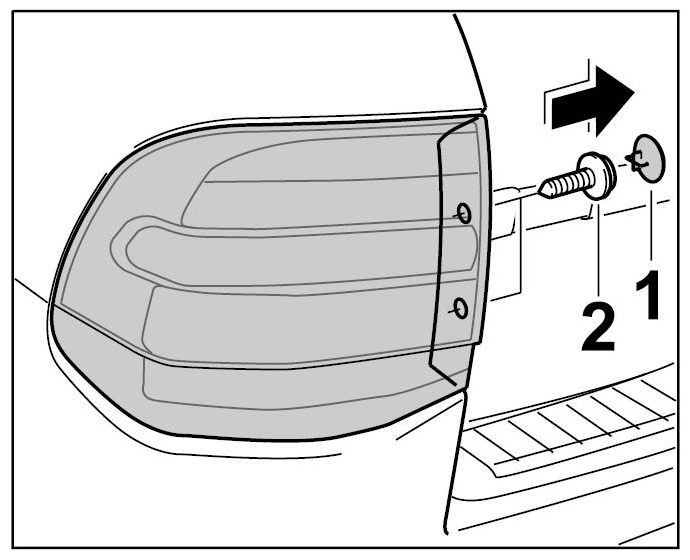

  Fig 1: Unscrewing Fastening Screws For Rear Light
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the rear light.
1. 3.1. Remove tail light -1- to the back in -arrowrichtung- using the ball joint -2- from the clip nut -3- .
2. 3.2. Release connector -4- (-Arrow A- ) and pull it off the tail light -1- (-Arrow B- ).
3. 3.3. Remove tail light -1- .

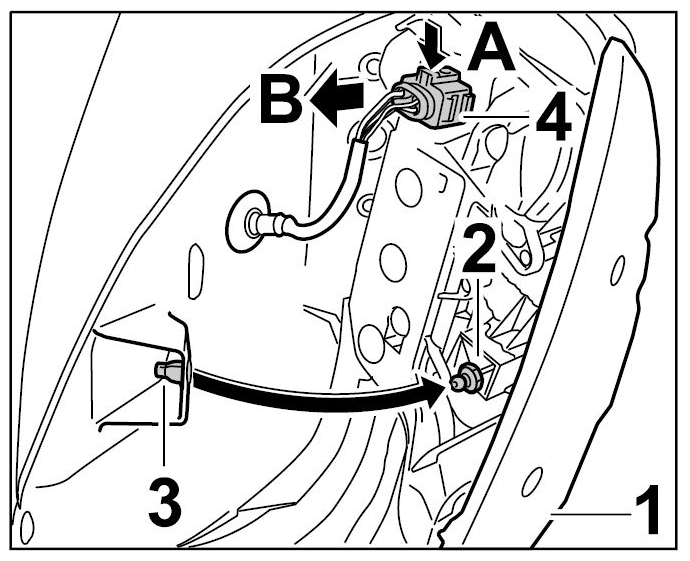

  Fig 2: Removing Connector For Rear Light
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
