Installing Headlight Mounting

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

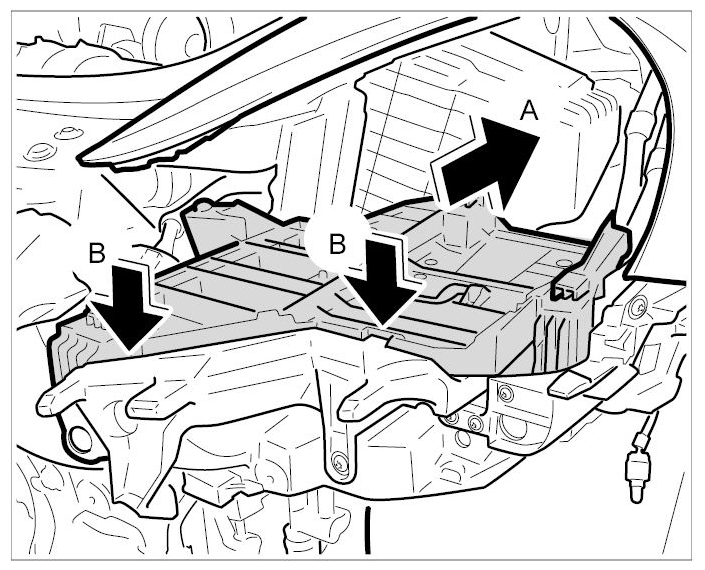

Insert the headlight mounting -Arrow A- and press it into the front guide rail -Arrows B- .

Fig 1: Inserting Headlight Mounting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
NOTE:
Fastening screw for main headlight mounting loose
- The main headlight shakes
- Rattling noises in the body front section
→ Replace fastening screws for the main headlight mounting following removal.

→ Exception: To set the gap dimensions, loosen the new fastening screws and then re-tighten them to the specified tightening torque within 24 hours.
NOTE:
Fastening screw for main headlight mounting loose
- The main headlight shakes
- Rattling noises in the body front section
→ Replace fastening screws for the main headlight mounting following removal.

→ Exception: To set the gap dimensions, loosen the new fastening screws and then re-tighten them to the specified tightening torque within 24 hours.

Information
- The fastening screws have a hexagon at the top and can therefore be unscrewed from the front.
- It is therefore important to turn the screws in the opposite direction when screwing the rear fastening screws in and out!

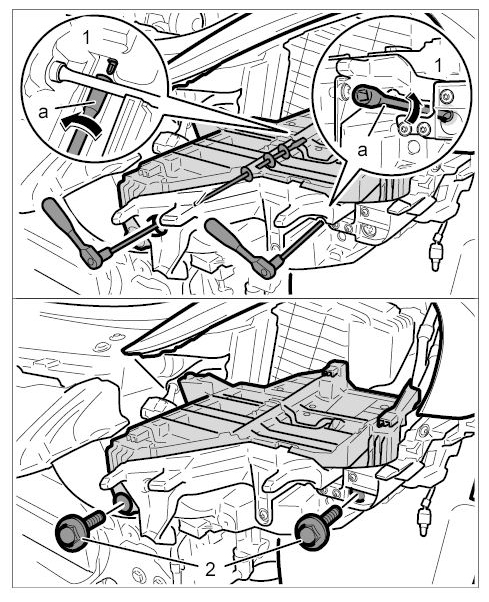

  Fig 2: Fastening Points For Headlight Mounting
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in the fastening screws at the back -1- , but do not tighten them.

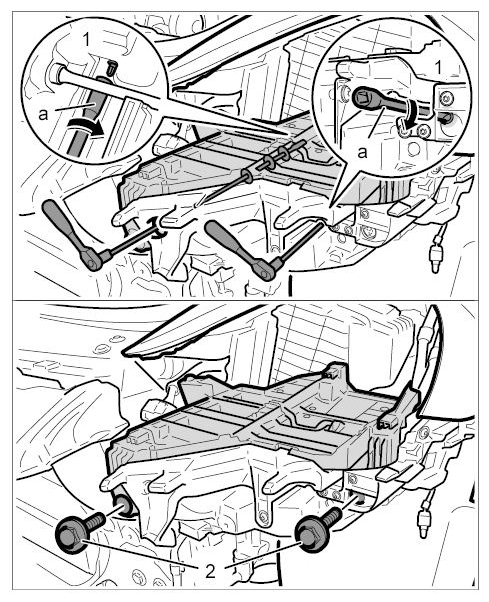

Fig 3: Fastening Points For Headlight Mounting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in the fastening screws at the front -2- , but do not tighten them.
Install main headlight. → Installing Main Headlights
