Installing Main Headlights

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

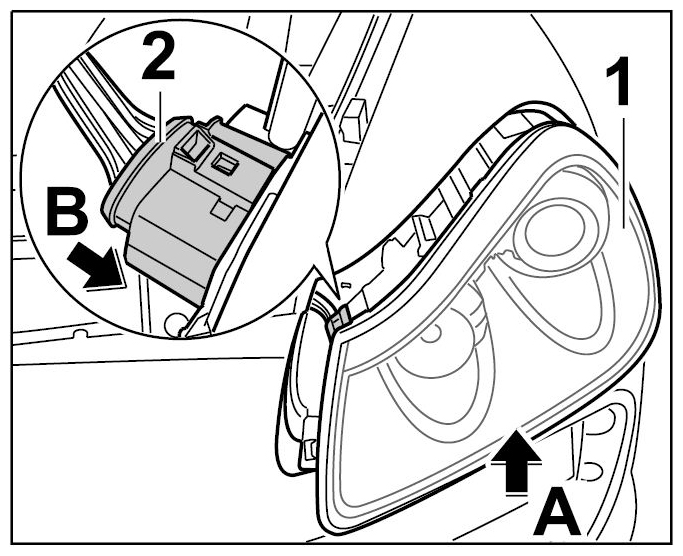

Insert main headlight -1- into the guide rails and push into the wing -Arrow A- until the connector -2- can be plugged in -Arrow B- .

Fig 1: Installing Main Headlight
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Push main headlight -1- all the way back into the wing -Arrow A- .

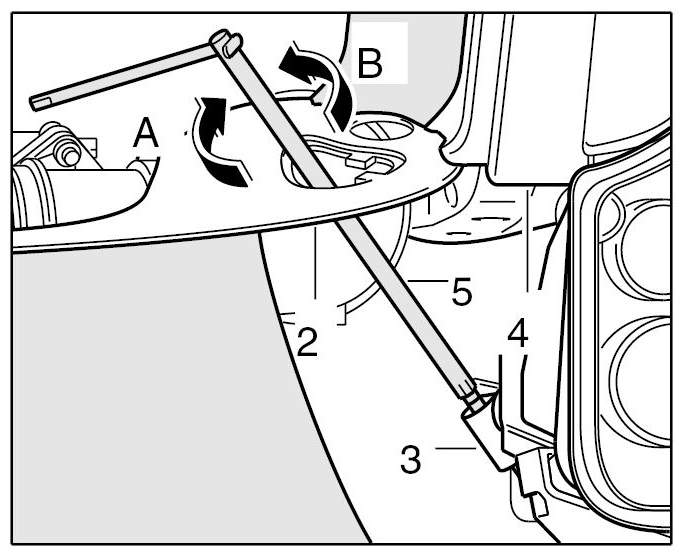

Press the main headlight to the rear and, at the same time, turn the socket wrench -5- in direction of arrow -arrow A- or -arrow B- . In the process, the headlight lock -3- must engage with an audible and perceptible click.
1. Direction of rotation for left main headlight
2. Direction of rotation for right main headlight
1. 2 - Cover
2. 3 - Locking mechanism for main headlight
3. 4 - Wing

  Fig 2: Locking Main Headlight
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check that the main headlights are seated securely.

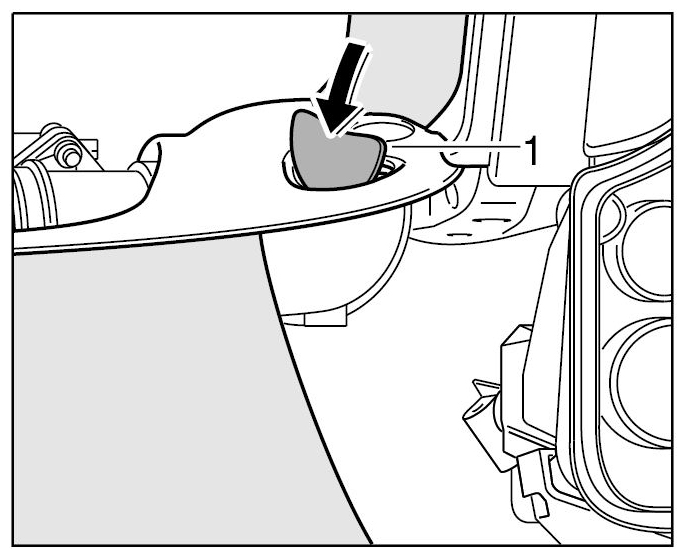

Insert cover -1- and fold over -Arrow- .

Fig 3: Fitting Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
