Removing Tiptronic Control Unit

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

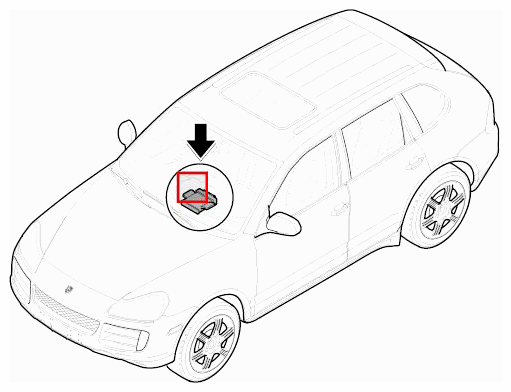

Fig 1: Locating Installation Position Of Tiptronic Control Unit

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The control unit is located under the right front seat.

The ignition key must be removed before pulling the connector off the control unit.
Move right front seat all the way back and up.
If the Tiptronic control unit is replaced, observe the points under coding the control unit. → Coding Tiptronic Control Unit
Unclip right front seat trim and remove drawer.

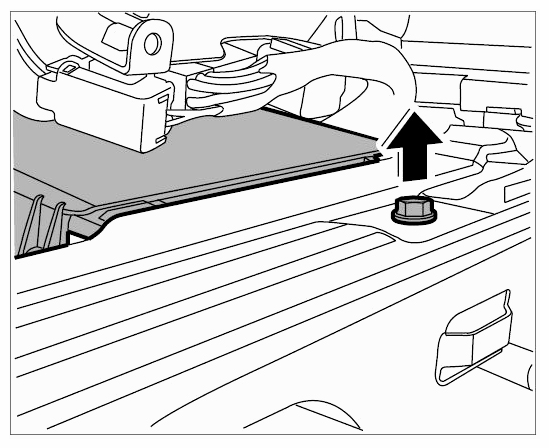

Unscrew the fastening screw for the holder.

Fig 2: Removing Fastening Screw Form Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Move the seat all the way forward.
Release the two connectors -A- and pull them off -B- .

Fig 3: Removing Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

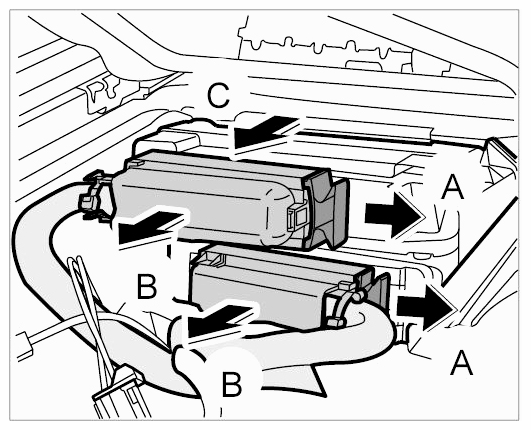

Remove the holder with the two control units -C- .

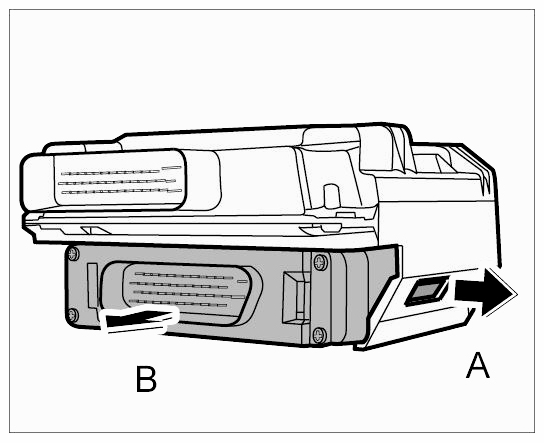

Release the locking lugs on both sides -A- and pull out the control unit -B- .

Fig 4: Removing Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
