Installing Tiptronic Control Unit

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

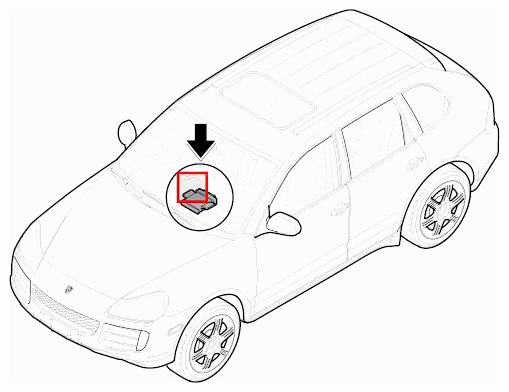

Fig 1: Locating Installation Position Of Tiptronic Control Unit

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Insert the control unit into the holder -A- until the locking lugs -B- engage securely.

Fig 2: Inserting Control Unit Into Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

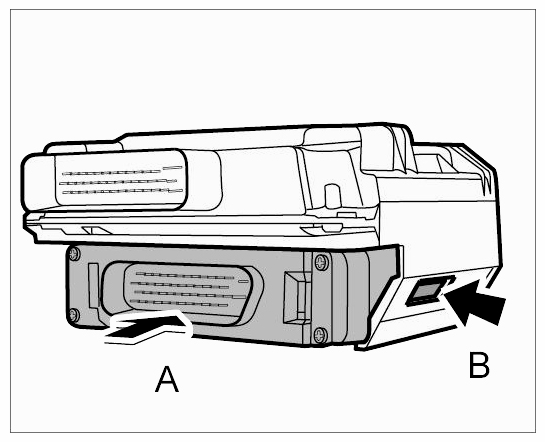

Connect the two connectors -A- and slide in the locking mechanism -B- until it engages securely.

Fig 3: Connecting/Locking Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

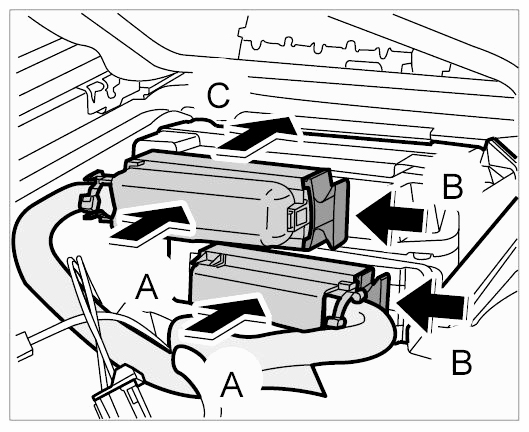

Place the holder with the two control units in installation position -C- .

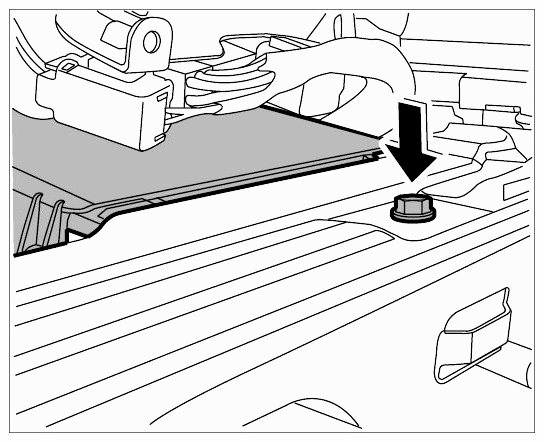

Move the seat all the way back and screw in and tighten fastening screw to → Tightening torque: +8 Nm (+6 ft lbs.).

Fig 4: Locating Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip in right front seat trim and install drawer.
If the Tiptronic control unit is replaced, observe the points under coding the control unit. → Coding Tiptronic Control Unit
