Topping Up ATF

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove engine guard. → Removing engine guard
Information
- Secure vehicle to prevent it rolling away.
- Vehicle must be horizontal in order to check ATF.
Start engine, move selector lever to position N and continue at idle speed.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.

Information
- Note the test conditions → Test conditions with cooler lines closed→ Test conditions after opening cooler lines for the following steps.
Information

Undo oil inspection plug only when temperature reaches 40 °C.
Unscrew oil inspection plug -2- .

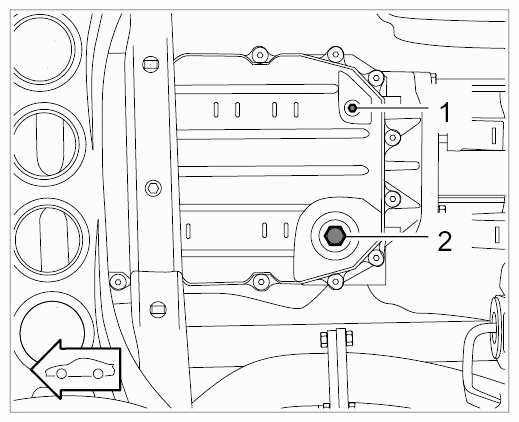

Fig 1: Identifying Oil Drain And Inspection Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fill with ATF using material 00000 until oil emerges at the lifting pipe.
Screw in oil inspection plug -2- . → Tightening torque: 70 Nm (52 ft lbs.)

Fig 2: Identifying Oil Drain Plug And Oil Inspection Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Move selector lever to position P and switch off engine.
Fit engine guard. → Installing engine guard
