Removing Centre Rear Three-Point Belt

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

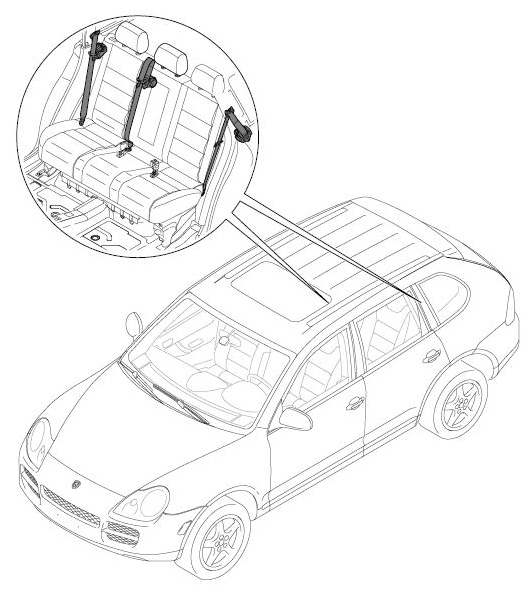

Fig 1: Identifying Centre Rear Three-Point Belt

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove backrest. → Removing Rear Backrest
Remove headrest. → Removing Headrest
Remove padding for rear backrest. → Removing Padding For 1/3-Split Folding Rear Backrest

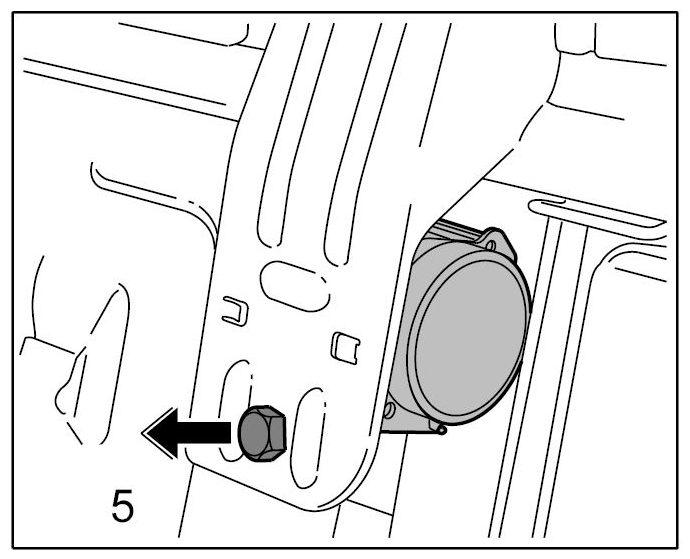

Unscrew fastening screw -5- and remove the belt reel downwards.

Fig 2: Removing Belt Reel Fastening Screw (Downwards)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

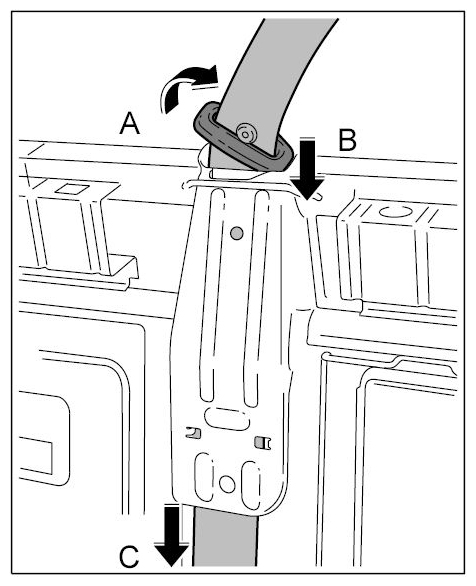

Turn seat-belt buckle -arrow A- and push it into the belt guide -arrow B- .

Fig 3: Turning Seat-Belt Buckle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove three-point belt in a downward direction -arrow C- .

Fig 4: Removing Three-Point Belt In Downward Direction
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
