Preliminary Work

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove transmission.
    1. 1.1. For vehicles with manual transmission, see: → Removing Transmission
    2. 1.1.1. Remove flywheel. → Removing Flywheel (Dual-Mass Flywheel)
    3. 1.2. For vehicles with automatic transmission, see: → Removing Transmission
    4. 1.2.1. Remove drive plate for torque converter. → Removing Drive Plate For Torque Converter On DFI Engines

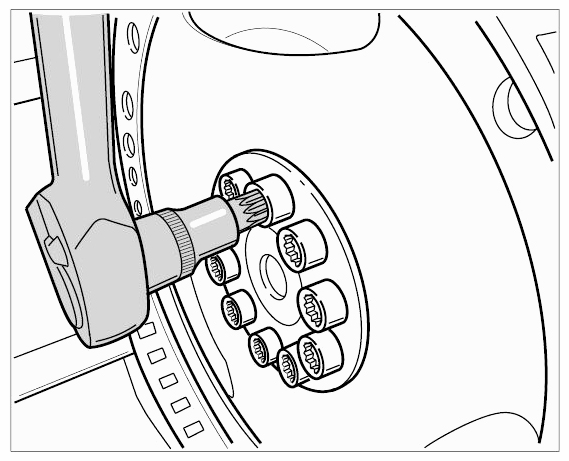

      Fig 1: Tightening Torque Converter Drive Plate Bolts
      G09409030Courtesy of PORSCHE CARS NORTH AMERICA, INC.
