Installing Trim Strip For Windscreen

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

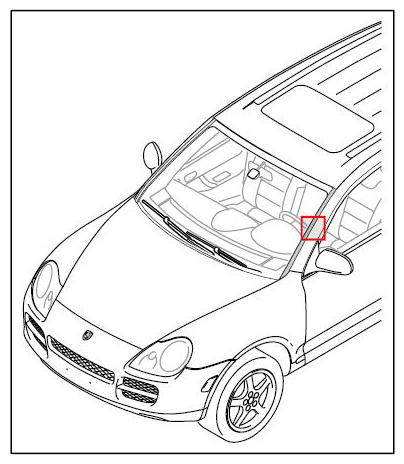

Fig 1: Identifying Trim Strip For Windscreen

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Check retaining clips.
1. 1.1. Check retaining clips -4- for deformation and replace if necessary. → Replacing Damaged Retaining Clips

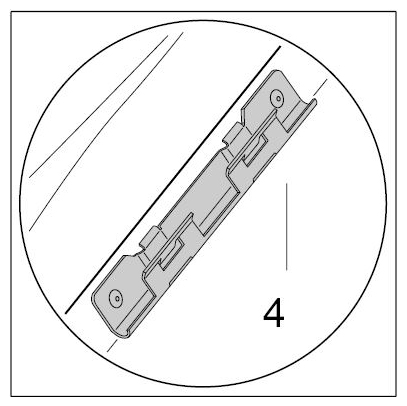

  Fig 2: Identifying Retaining Clips
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip in trim strip
1. 2.1. Starting from the top, engage trim strip -3- in the retaining clips -4- on the A-pillar.

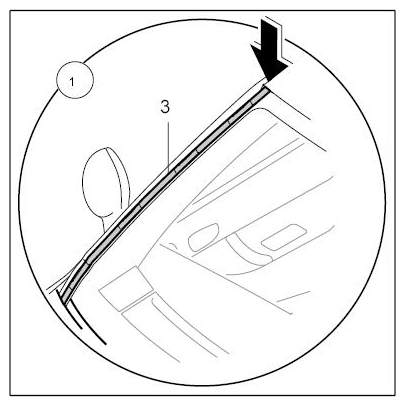

  Fig 3: Locating Trim Strip
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 4: Identifying Retaining Clips
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check sheetmetal clips.
1. 3.1. Check sheetmetal clips -2- for deformation; replace if necessary.

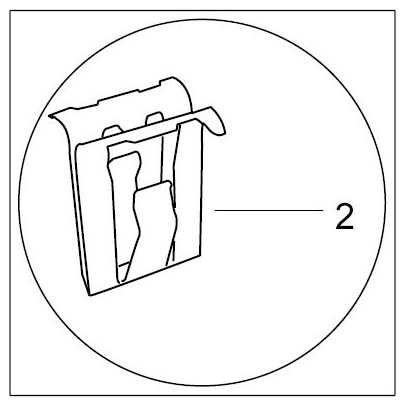

  Fig 5: Identifying Sheetmetal Clips
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install side cover.
1. 4.1. Clip side cover -1- into the sheetmetal clip -2- of the A-pillar.

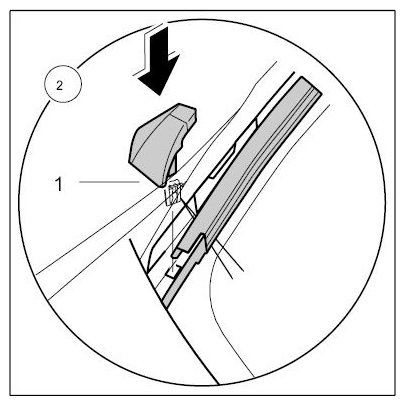

  Fig 6: Installing Side Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

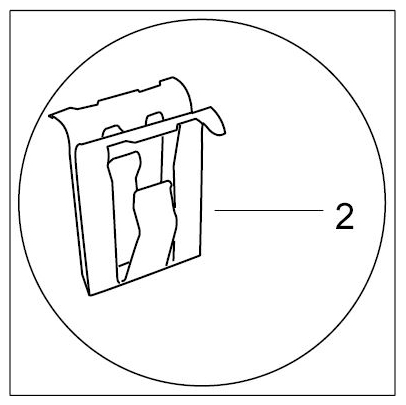

  Fig 7: Identifying Sheetmetal Clip
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
