Replacing Damaged Retaining Clips

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

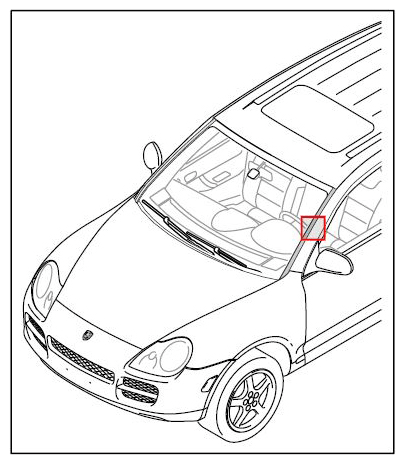

Fig 1: Identifying Damaged Retaining Clips Area

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove windscreen. → Removing Windscreen
Remove damaged retaining clips.
1. 2.1. Mask windscreen with adhesive tape -A- to protect it against damage in the area of the retaining clips.

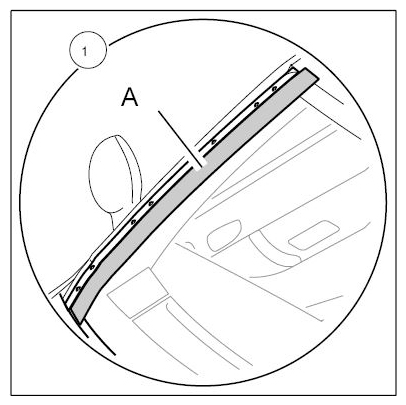

  Fig 2: Identifying Adhesive Tape
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Drill off rivet heads of the retaining clips with a drill ø 3.2.

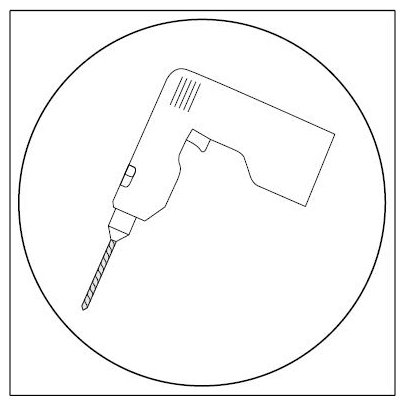

  Fig 3: Identifying Drill Off Rivet Heads
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 2.3. Remove retaining clips -4- .

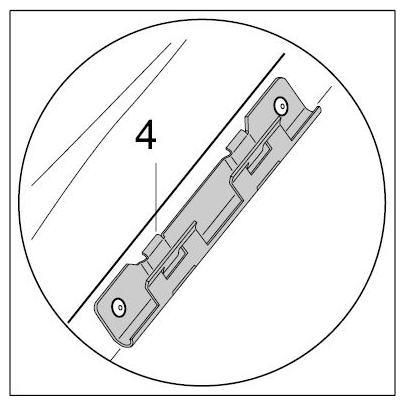

  Fig 4: Identifying Retaining Clips
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 2.4. Touch up paint damage.
Information
- Damaged retaining clips can only be riveted in when the windscreen has been removed.
Install retaining clips.
1. 3.1. Position retaining clips -4- on the A-pillar at the existing holes and rivet on with blind rivets ø 3.2. Hand riveting tool for pop rivets Nr.124-1

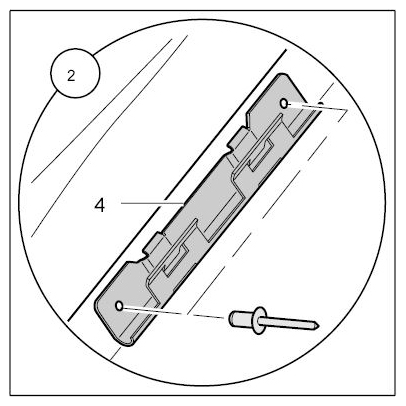

  Fig 5: Identifying Retaining Clips
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

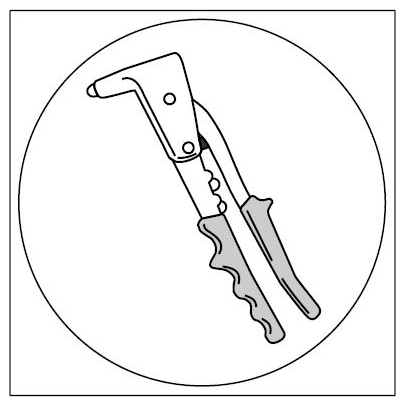

  Fig 6: Identifying Hand Riveting Tool
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install windscreen. → Installing Windscreen
Supplement cavity protection.
1. 5.1. To prevent corrosion, spray the body in the area of the A-pillar thoroughly with cavity preservation liquid.
