Assembling Front Roof Console

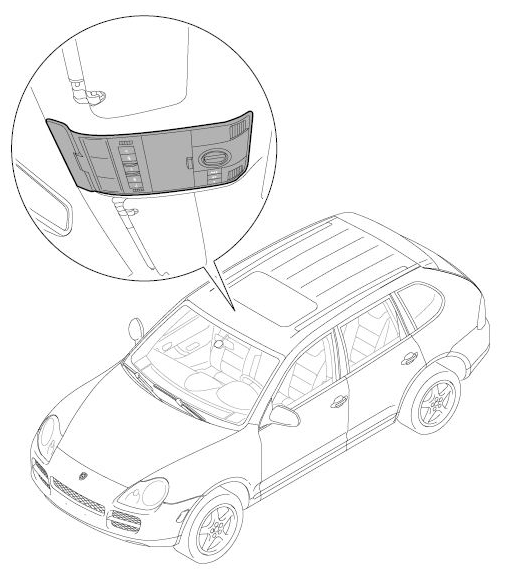

Fig 1: Overview Of Front Roof Console

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• The springs for the shelf are assigned to the right and left side. Given this, please make sure to observe the installation position of the springs.

1. Place the springs on the pivot axis -1-  and the retaining pivot -2-  (-arrows-  ).
   Fig 2: Placing Springs On Pivot Axis And Retaining Pivot

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

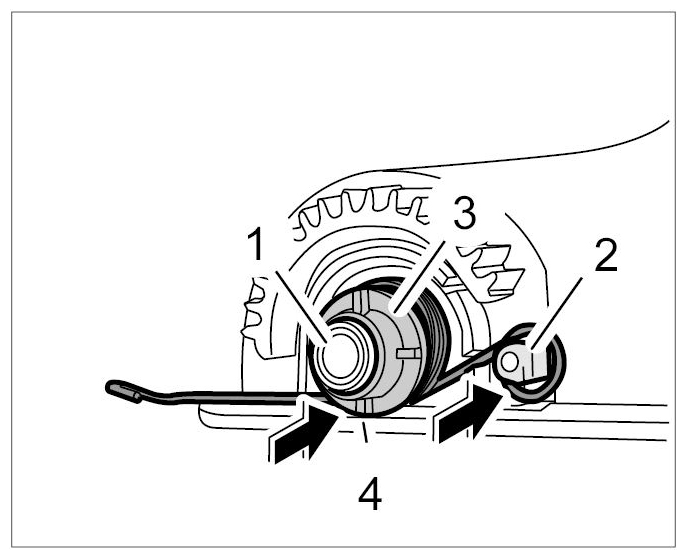

2. Connect the bearing sleeve with the contact surface -3-  pointing towards the spring at the pivot axis. Make sure that the flat edge -4-  of the contact surface is facing downwards.
   Fig 3: Connecting Bearing Sleeve With Contact Surface

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

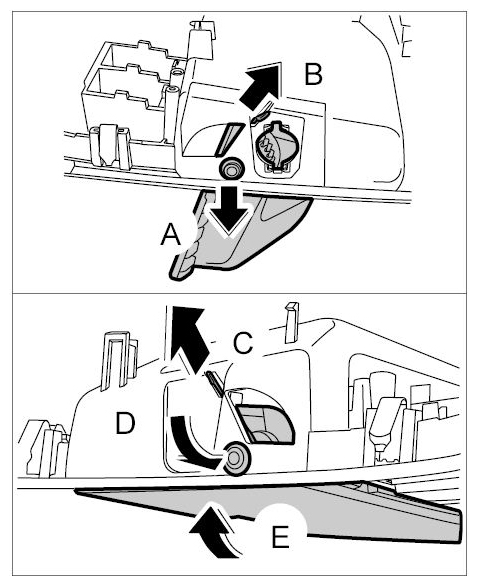

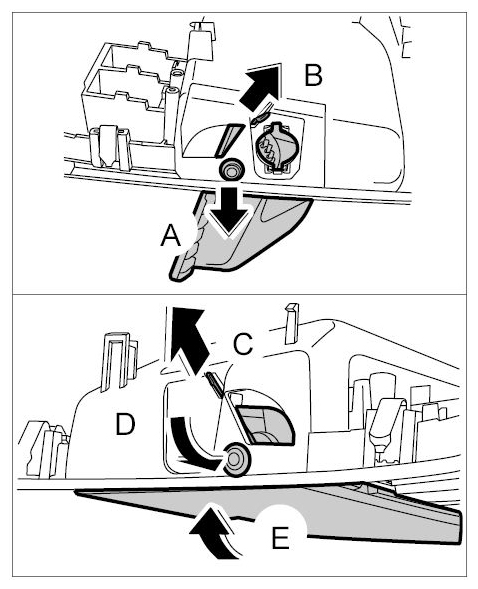

3. Insert the fully opened shelf at the left side -arrow A-  . Push the spring through the opening -arrow B-  .
   Fig 4: Inserting Fully Opened Shelf At Left Side

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Insert the spring at the right side through the opening -arrow C-  .
   Fig 5: Inserting Spring At Right Side Through Opening

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Press in the bearing pin at the underside -arrow D-  , then press the shelf into the roof console -arrow E-  until the bearing pin with the bearing sleeve engages securely.
   Fig 6: Pressing Bearing Pin

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

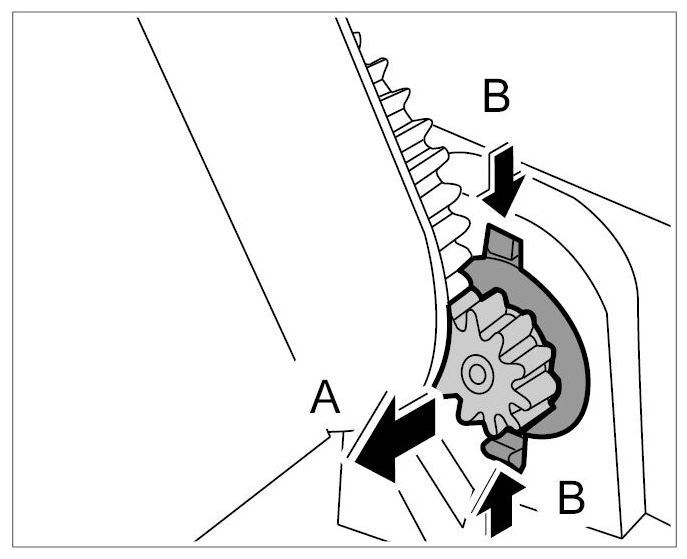

6. Press in the closing damper -arrow A-  until you feel the locking tabs -B-  engage.
   Fig 7: Pressing Closing Damper

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

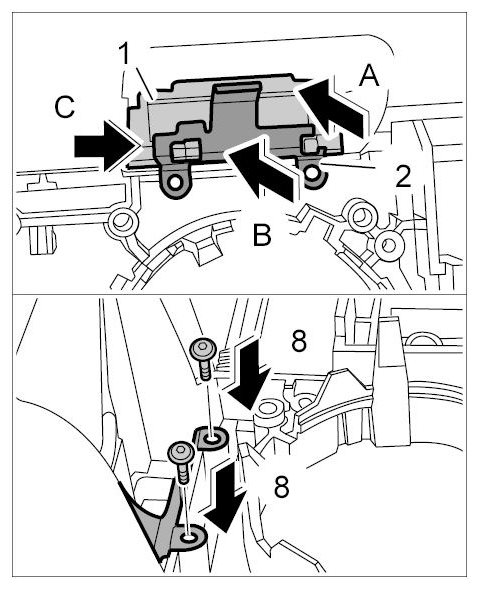

7. Place the push-button -1-  in installation position -arrow A-  .
   Fig 8: Placing Push-Button

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Insert the spring -2-  (-arrow B-  ), move it to the right -arrow C-  , and screw down using the two fastening screws -8-  .
   Fig 9: Inserting Spring

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • The switch trims can be installed in only one position.

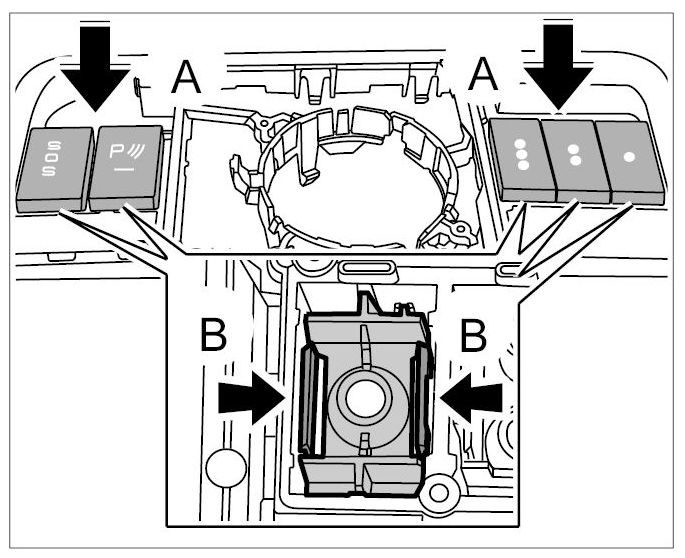

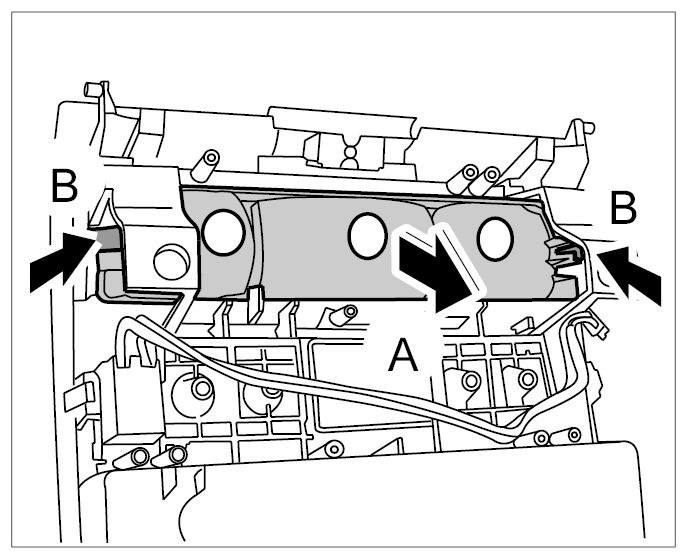

9. Press in the switch trims -arrow A-  until you feel the locking tabs -B-  engage.
   Fig 10: Pressing Switch Trims

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
10. Press the bracket carefully to the inside -arrow A-  .
    Fig 11: Pressing Bracket

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

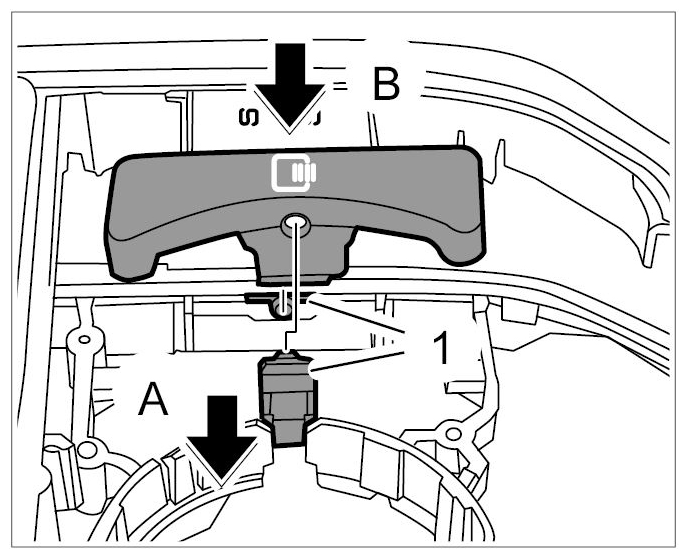

11. Place the switch trim in installation position and press it in -arrow B-  until it engages securely in the retaining pivot -1-  .
    Fig 12: Placing Switch Trim In Installation Position

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    • Position the cover in such a way that the sliding switch contacts are pointing towards the shelf.
12. Position the cover in installation position, but do not press down firmly.

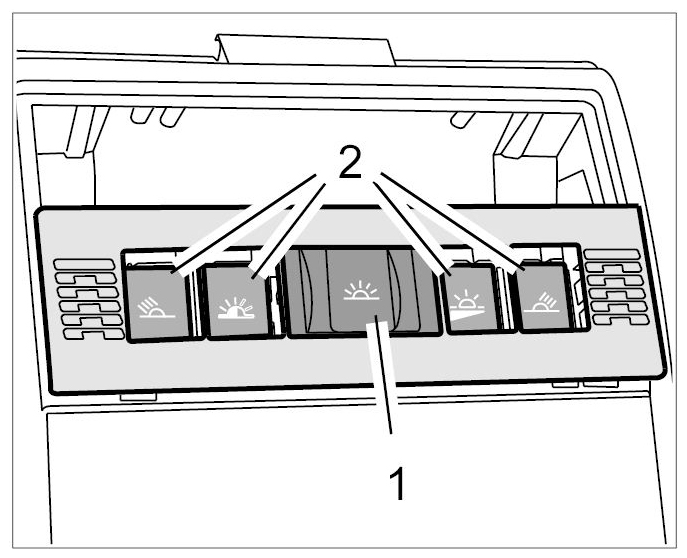

13. Position the sliding switch -1-  in the cover in such a way that the pictogram is aligned with that on the adjacent switch trims -2-  .
    Fig 13: Identifying Sliding Switch And Adjacent Switch Trims

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
14. Turn the cover with the sliding switch around.
15. Insert the holder -1-  through the sliding switch -2-  (-arrow A-  ) and press it carefully into the bracket -arrow B-  until the locking tabs are felt to engage -C-  .
    Fig 14: Inserting Holder Through Sliding Switch

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

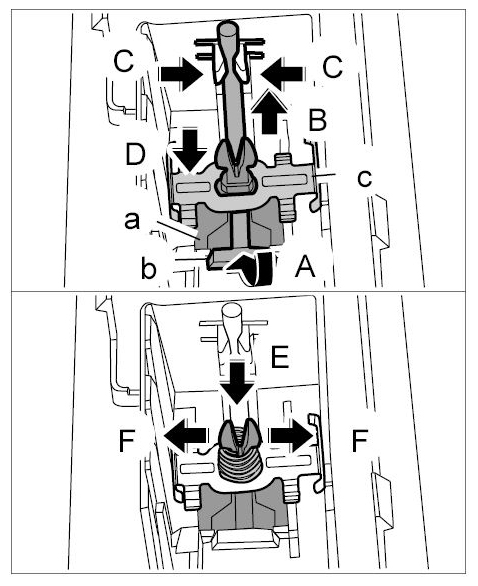

16. Connect the contact bridge -c-  to the switch -arrow D-  .
    Fig 15: Connecting Contact Bridge Switch

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
17. Connect the spring to the sliding switch -a-  (-arrow E-  ) until the locking tabs are felt to engage -arrows F-  .
    Fig 16: Connecting Spring To Sliding Switch

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

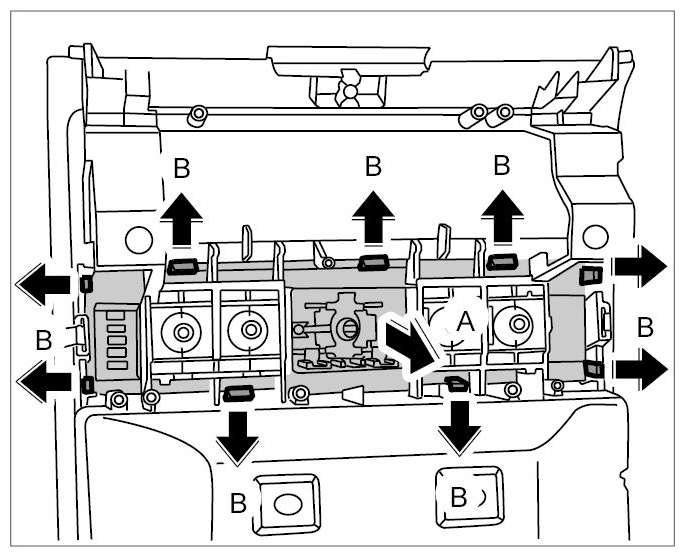

18. Place the switch trim in installation position and press it in -arrow A-  until the nine locking tabs engage securely -arrows B-  .
    Fig 17: Placing Switch Trim In Installation Position

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

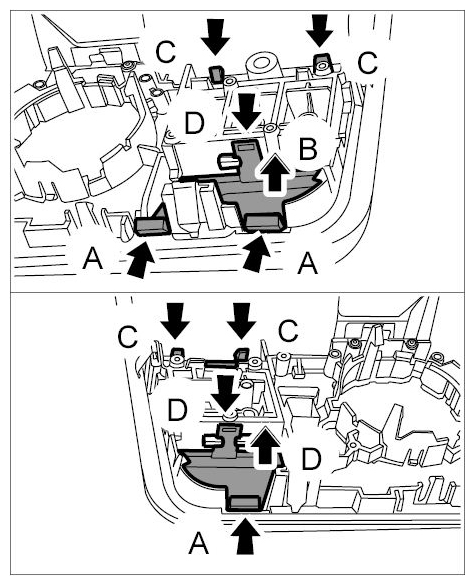

19. Engage the two covers at the back -A-  and press in at the front edge -arrow B-  until the locking tabs (three on each cover) are felt to engage -C-  . Make sure that the covers are positioned correctly at the frame of the switch trims -D-  .
    Fig 18: Engaging Covers

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

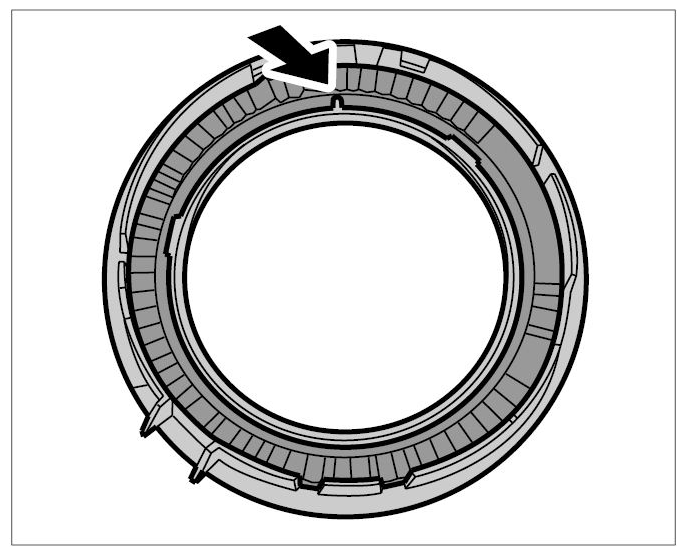

20. Insert the light ring into the cover and align the two markings -arrow-  .
    Fig 19: Inserting Light Ring Into Cover

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

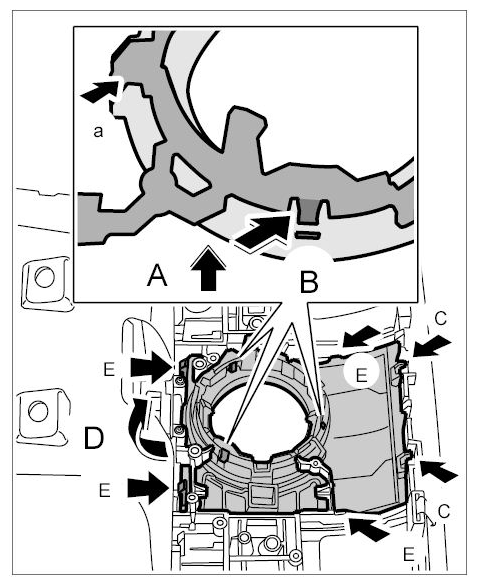

21. Align the lighting unit with the sun blind switch -1-  and press it in -arrow A-  until the locking tabs -B-  are felt to engage.
    Fig 20: Aligning Lighting Unit With Sun Blind Switch

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
22. Engage the cover at the roof console -C-  and press it in -arrow D-  until the four locking tabs -E-  are felt to engage.
    Fig 21: Engaging Cover At Roof Console

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

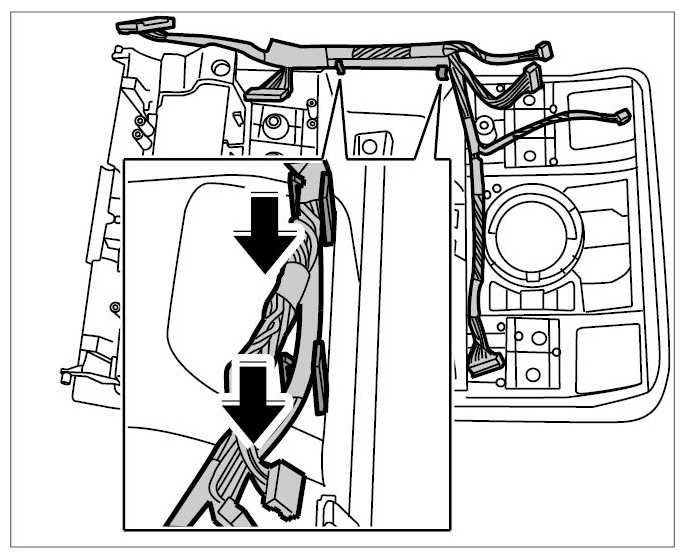

23. Insert the wiring harness into the brackets -arrow-  .
    Fig 22: Inserting Wiring Harness Into Brackets

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

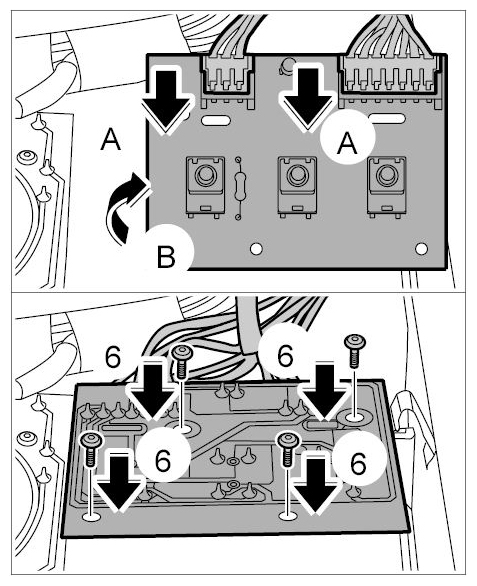

24. Connect the two connectors on the printed circuit board until they are felt to engage -arrows A-  .
    Fig 23: Connecting Connectors On Printed Circuit Board

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
25. Turn the printed circuit board around -arrow B-  and screw down with four fastening screws -6-  .
    Fig 24: Turning Printed Circuit Board

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

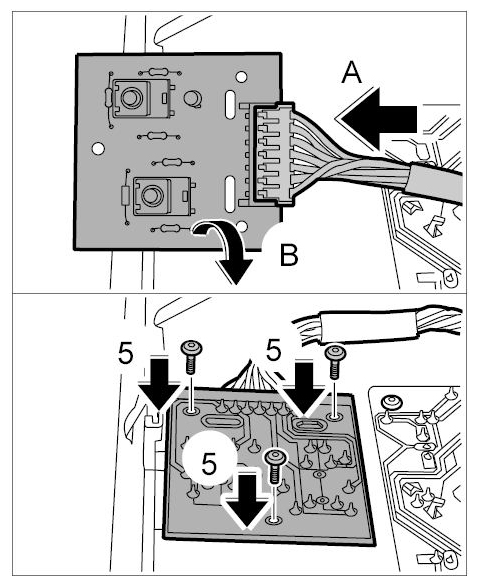

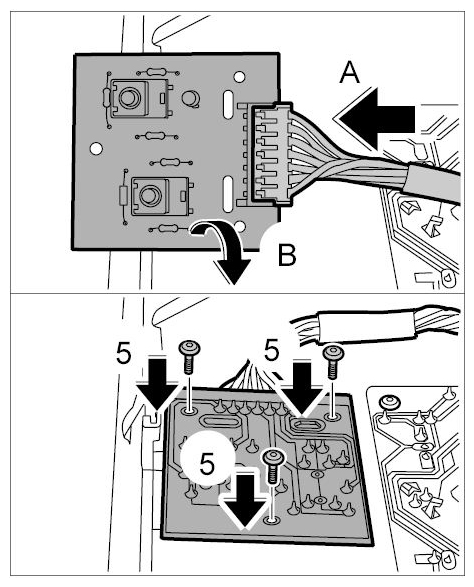

26. Connect the connector to the printed circuit board -arrow A-  until it engages securely.
    Fig 25: Connecting Connector To Printed Circuit Board

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
27. Turn the printed circuit board around -arrow B-  and screw down with three fastening screws -5-  .
    Fig 26: Turning Printed Circuit Board

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

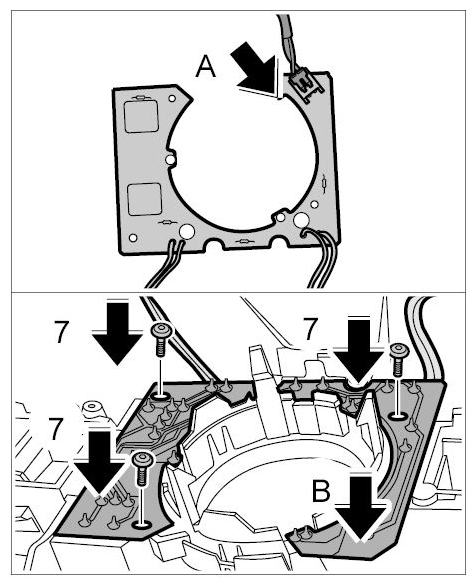

28. Connect the connector to the printed circuit board until they engage securely -arrow A-  .
    Fig 27: Connecting Connector To Printed Circuit Board

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
29. Place the printed circuit board in installation position -arrow B-  and screw down with three fastening screws -7-  .
    Fig 28: Placing Printed Circuit Board In Installation Position

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
30. Insert the microphone -arrow A-  until the two locking tabs -B-  are felt to engage.
    Fig 29: Inserting Microphone

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
31. Place the reading light in installation position and press it in -arrow A-  until the two clips -B-  engage securely.
    Fig 30: Placing Reading Light In Installation Position

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

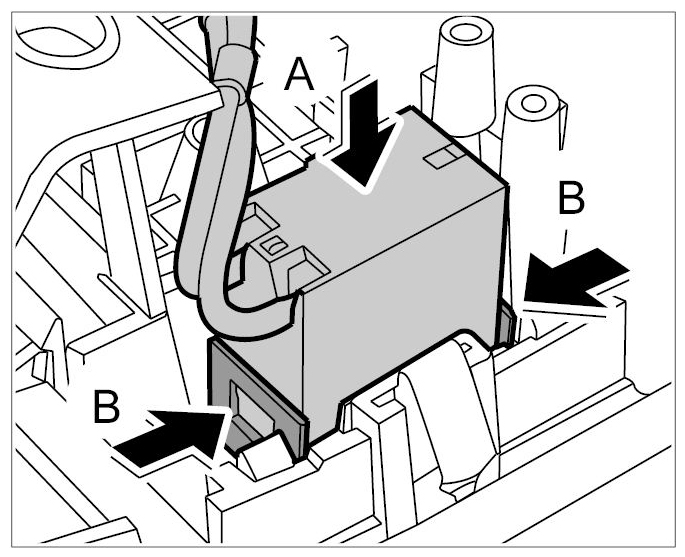

32. Place the switch in installation position and press it in carefully -arrow A-  . Make sure that all three locking hooks -B-  engage at the switch.
    Fig 31: Placing Switch In Installation Position

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

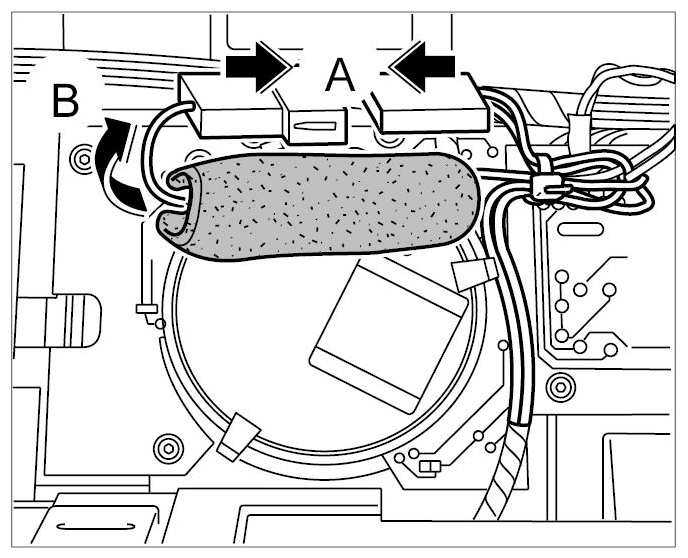

33. Connect the plug connection -arrows A-  and slide the piece of plastic foam over the plug connection -arrow B-  .
    Fig 32: Connecting Plug Connection

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
34. Insert the sensor into the roof console frame -A-  until the two locking hooks -B-  are felt to engage. Ensure it is seated properly.
    Fig 33: Inserting Sensor Into Roof Console Frame

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

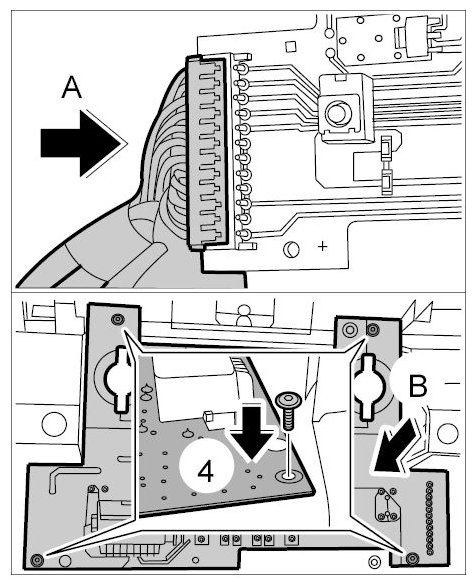

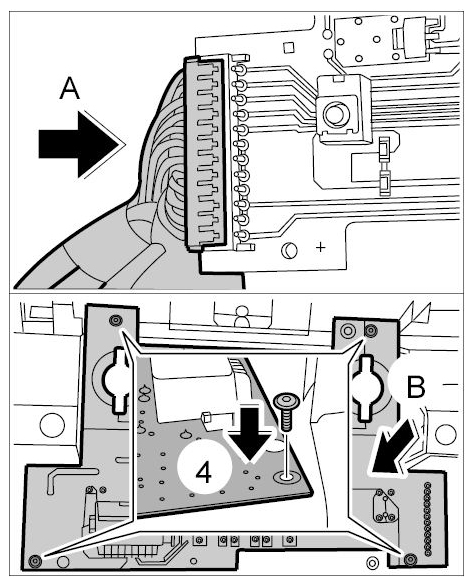

35. Attach the connector to the printed circuit board -arrow A-  until it engages securely.
    Fig 34: Attaching Connector To Printed Circuit Board

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
36. Place the printed circuit board in installation position -arrow B-  and screw down with four fastening screws -4-  .
    Fig 35: Placing Printed Circuit Board In Installation Position

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    • Only if replacing the printed circuit board

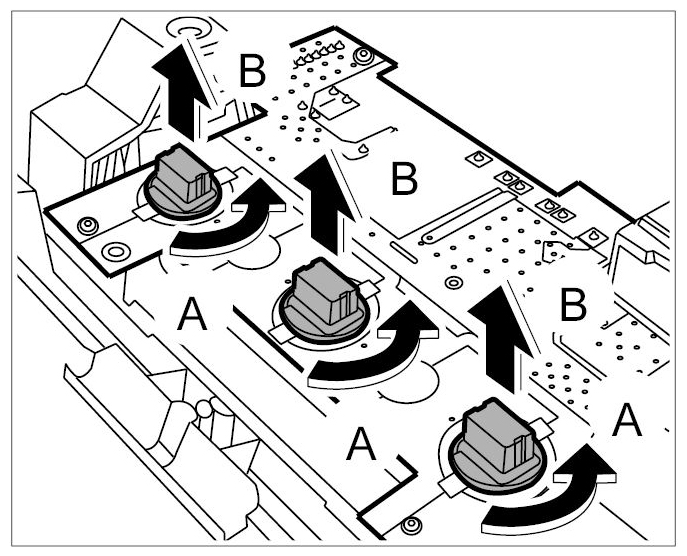

    Fig 36: Turning Sockets Of Bulbs

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

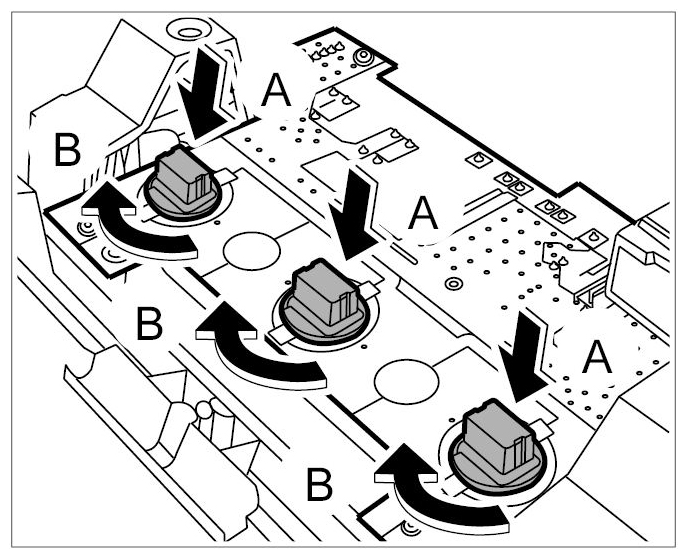

37. Insert bulbs into the printed circuit board -arrow A-  and tighten -arrow B-  .
    Fig 37: Inserting Bulbs Into Printed Circuit Board

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

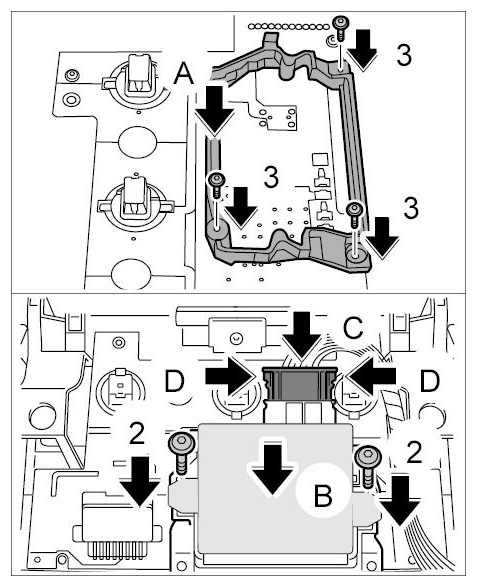

38. Place the holder in installation position -arrows A-  and screw down with three fastening screws -3-  .
    Fig 38: Placing Holder In Installation Position

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
39. Place the control unit on the holder -arrow B-  and screw down with both fastening screws -2-  .
    Fig 39: Placing Control Unit On Holder

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
40. Push in connector -arrow C-  until the locking tabs -D-  are felt to engage.
    Fig 40: Pushing Connector

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

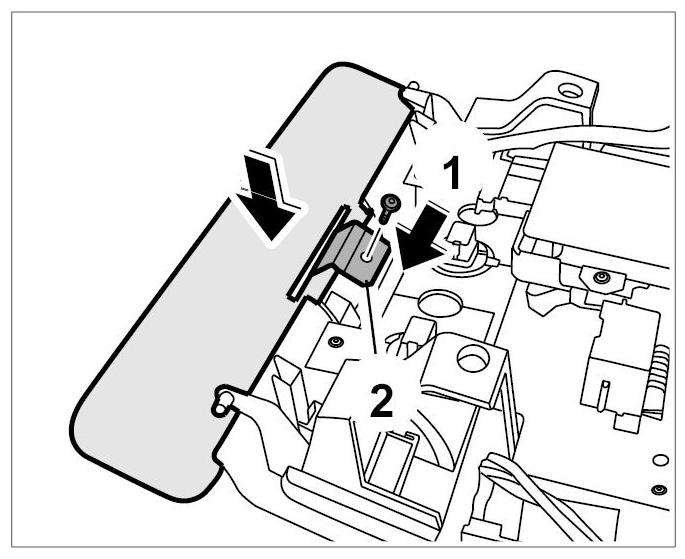

41. Insert the sun visor and holder -2-  (-arrow-  ) and secure with the fastening screw -1-  .
    Fig 41: Inserting Sun Visor And Holder

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
42. Install front roof console. → Installing Switch For Sliding Roof
