Installing Switch For Sliding Roof

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Join the plug connection, fold the wires, and secure them with a tie-wrap.

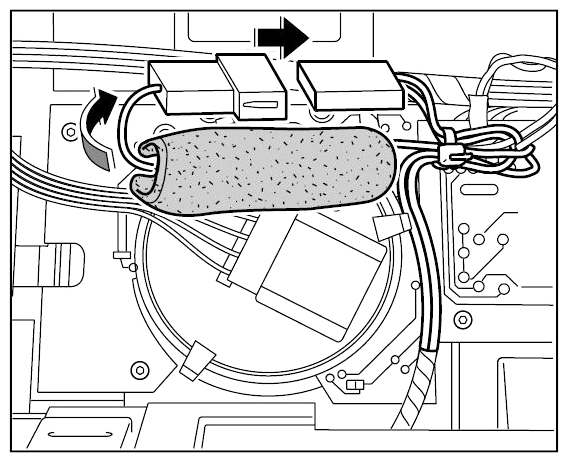

Fig 1: Securing Tie-Wrap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull the foam over the plug connection.
Position the switch in the roof console and carefully press it down. Make sure that the retaining stops engage on the switch.

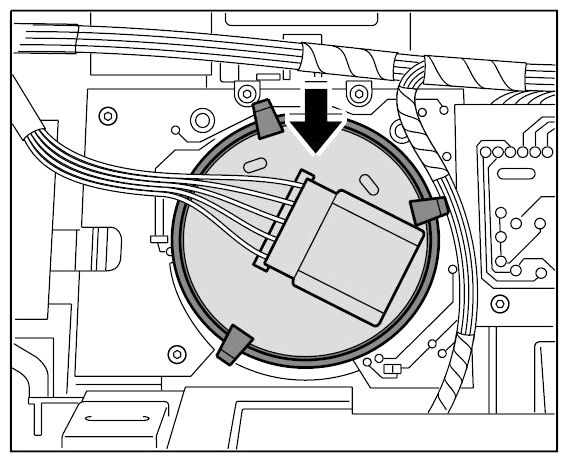

Fig 2: Connecting Electrical Plug Connection On Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Plug in the electrical plug connection on the switch.
Information
- Observe the line routing, danger of pinching!
Carefully bend the six clips around the perimeter of the roof console up and slightly outwards -in direction of arrow- to increase the preload of the clips.

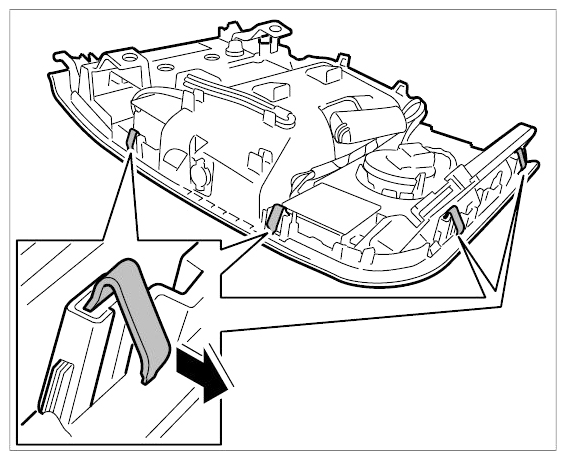

Fig 3: Bending Clips Up And Outwards On Perimeter Of Roof Console
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Engage the roof console on the roof liner and plug in all electrical plug connections -1, 2, 3, 4, 5- until the plugs audibly click into place.

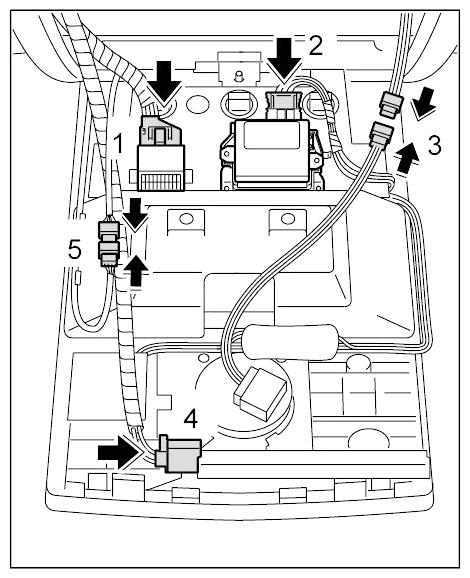

Fig 4: Locating Electrical Plug Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fold up roof console, clip it in the roof liner and screw down using the four fastening screws. Close the glasses compartment and clip in the light unit cover.

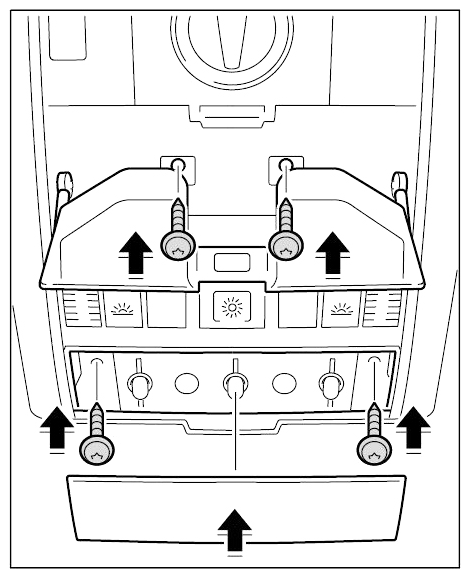

Fig 5: Folding Up Roof Console, Clip Roof Liner And Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Switch on ignition and check the proper function of the sliding roof switch.
