Installing Front Side Section Trim Panel

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

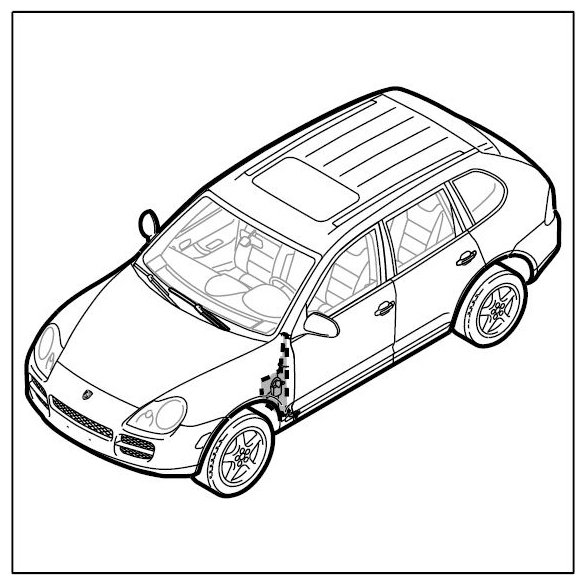

Fig 1: Identifying Front Side Section Trim Panel (1 Of 2)
G09413217Courtesy of PORSCHE CARS NORTH AMERICA, INC.

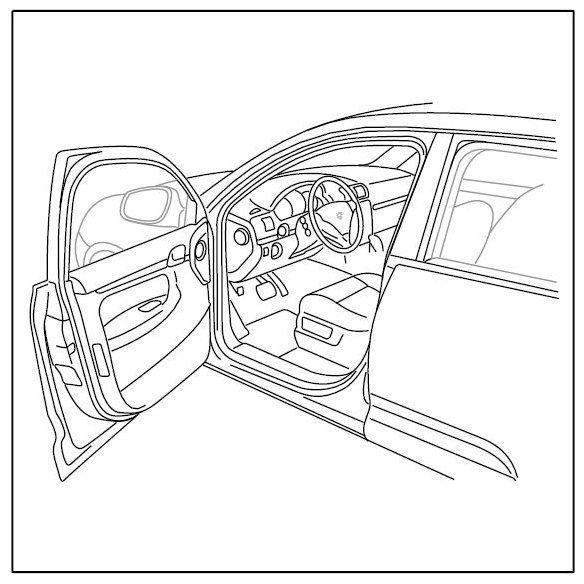

Fig 2: Identifying Front Side Section Trim Panel (2 Of 2)
G09413218Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Check fastening clips -8 -  and -9-  for correct installation and deformation; replace if necessary.
    Fig 3: Installing Lower Trim Into Mounting Points On A-Pillar
    G09413219Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Clip lower trim -7-  into the mounting points on the A-pillar from behind -arrow A-  .
    Fig 4: Clipping Centre Trim Into Mounting Points Of A-Pillar Trim
    G09413220Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Starting from behind, clip centre trim -5-  into the mounting points of the A-pillar trim -6-  , into the lower trim -7-  and into the fastening clip -8-  on the A-pillar -arrow B-  .

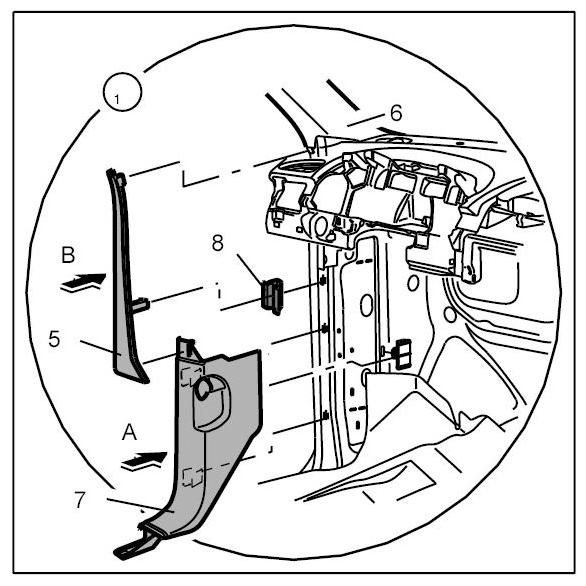

    Fig 5: Identifying Clip
    G09413221Courtesy of PORSCHE CARS NORTH AMERICA, INC.

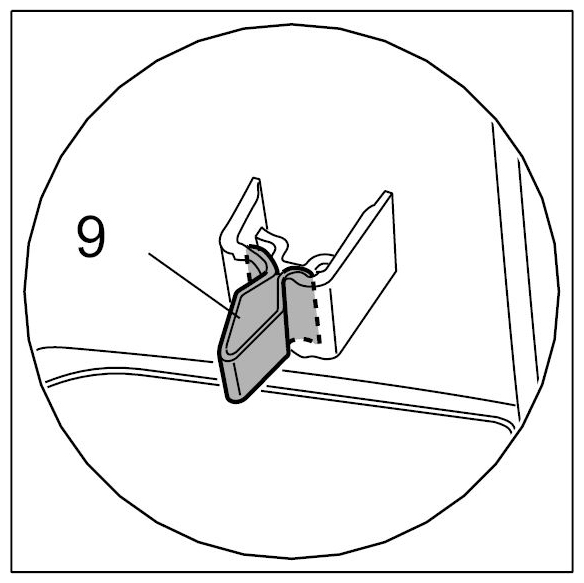

    Fig 6: Securing Spring On Actuating Lever
    G09413222Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Perform steps 4 and  5 only on the driver's side.

  4. Fit securing spring -4-  on the actuating lever -3-  and press in fully -arrow C-  .

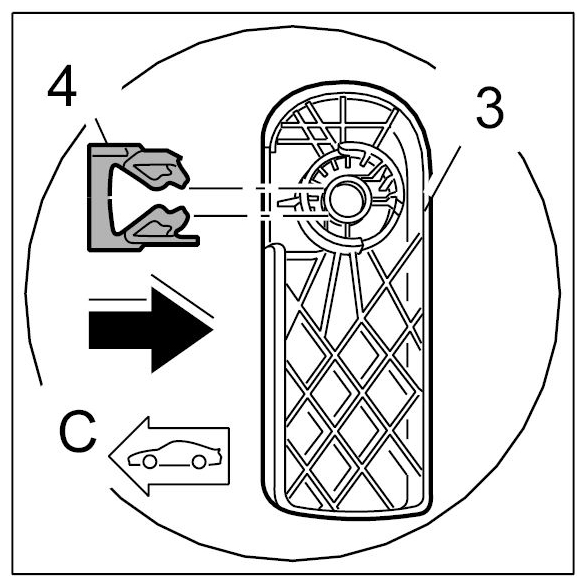

    Fig 7: Fitting Securing Spring On Actuating Lever
    G09413223Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Push actuating lever -3-  onto the release from the inside -arrow D-  and push in until the securing spring audibly engages.

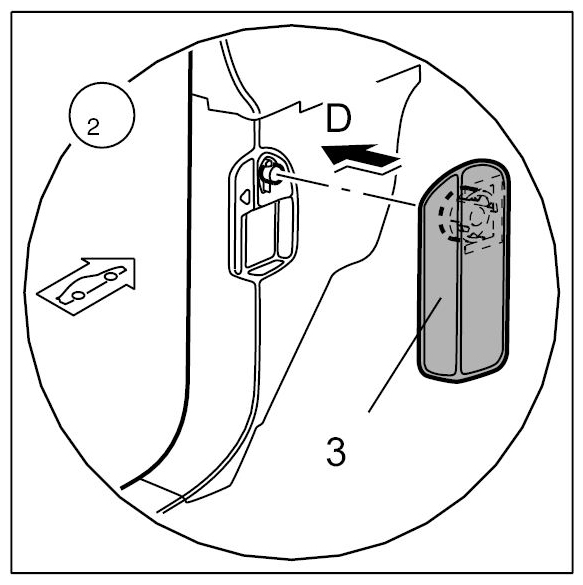

    Fig 8: Pushing Actuating Lever
    G09413224Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Insert fuse box cover -1-  from the rear -arrow E-  .
    Fig 9: Inserting Fuse Box Cover
    G09413225Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Swivel fuse box cover inward and push it in -arrow F-  until the retaining clips -2-  audibly engage.

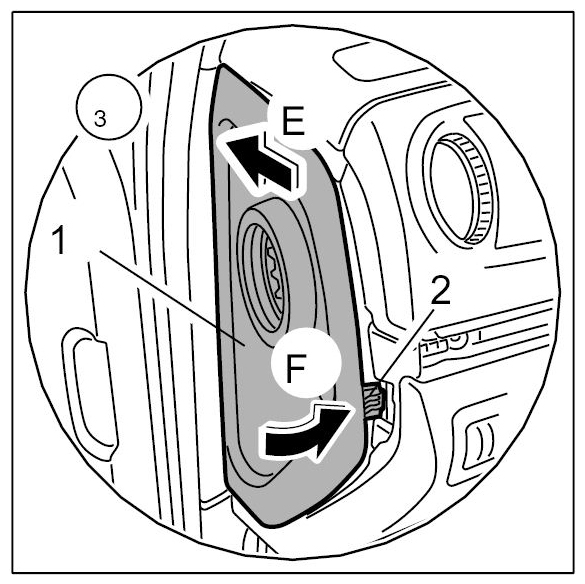

    Fig 10: Pushing Fuse Box Cover
    G09413226Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Install inner door sill trim → Installing Inner Door Sill Trim .
  9. Install B-pillar trim → Installing B-Pillar Trim Panel
  10. Close front and rear doors
