Installing Inner Door Sill Trim

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

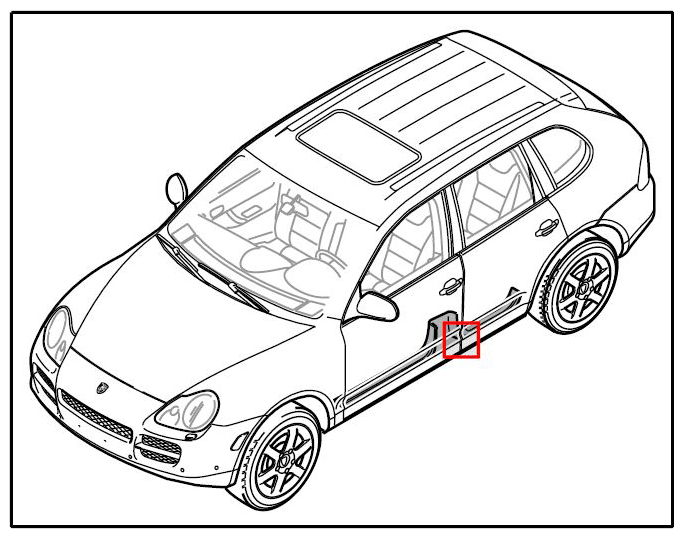

Fig 1: Identifying Inner Door Sill Trim

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Check clips.
1. 1.1. Check clips -7- for deformation; replace if necessary.

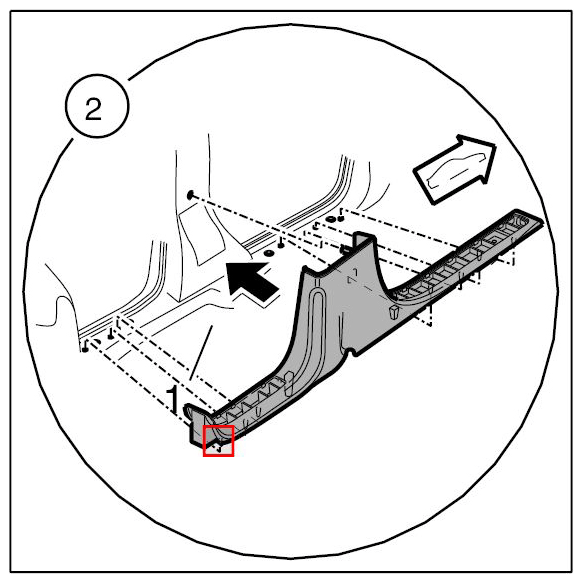

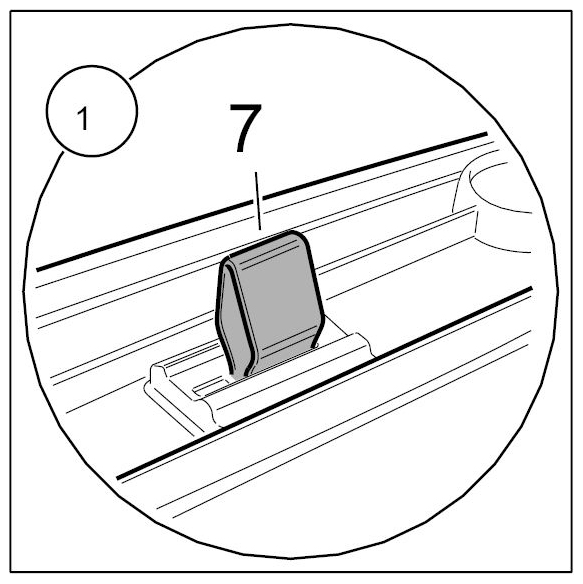

  Fig 2: Identifying Clips
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

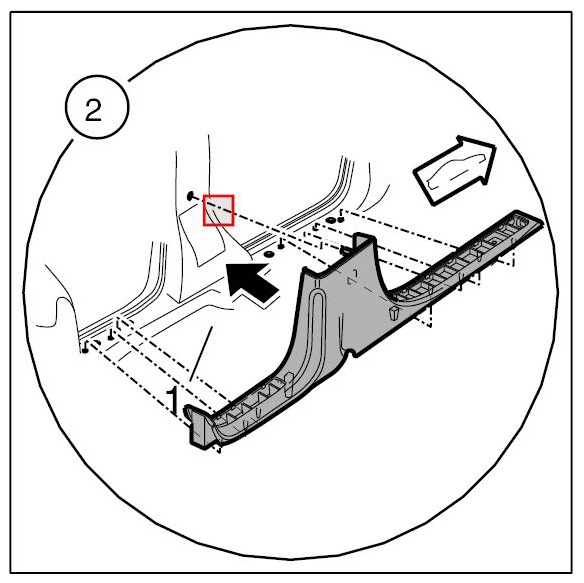

  Fig 3: Installing Inner Door Sill Trim
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 4: Installing Inner Door Sill Trim
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip in the inner door sill trim.

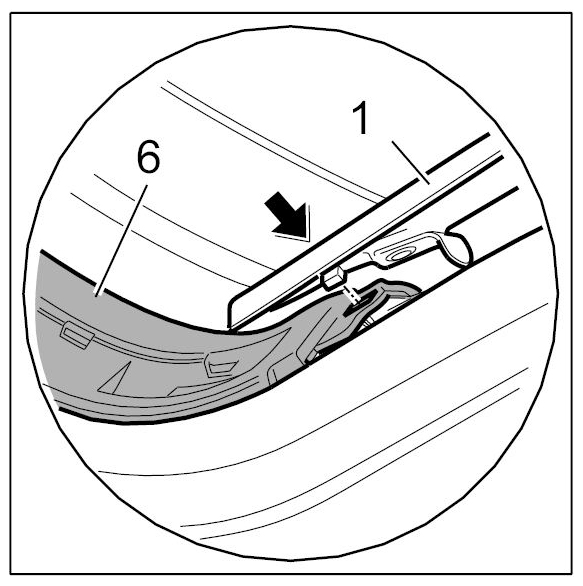

1. 2.1. Insert inner door sill trim -1- in area of overlap under rear side trim pane -6- .

  Fig 5: Locating Inner Door Sill Trim
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Clip in the inner door sill trim -1- .

  Fig 6: Locating Inner Door Sill Trim
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

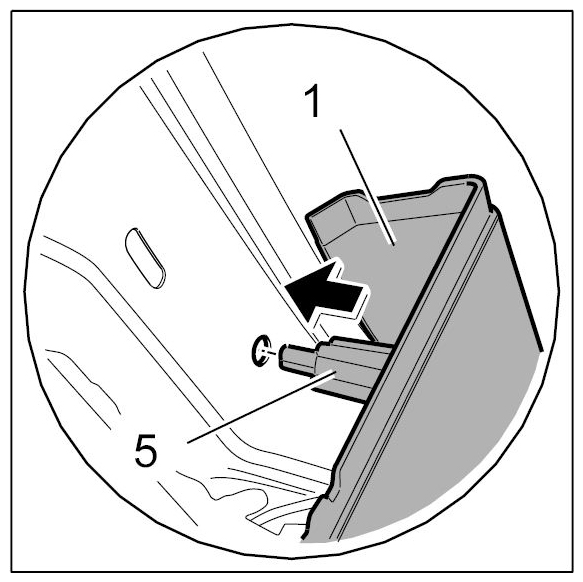

3. 2.3. Position marking mandrel -5- for inner door sill trim -1- on inner B-pillar.

  Fig 7: Installing Inner Door Sill Trim Marking Mandrel
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in fastening screws.

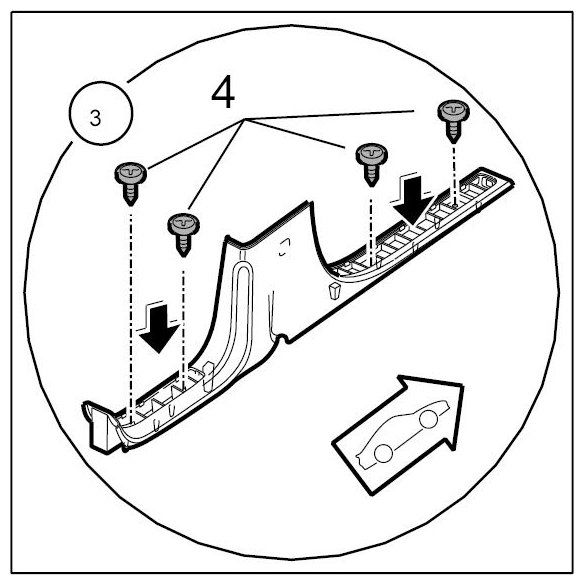

1. 3.1. Screw in fastening screws -4- and tighten. → Tightening torque: 2.5 Nm (2.0 ft lbs.)

  Fig 8: Installing Inner Door Sill Trim Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip in rear trim.

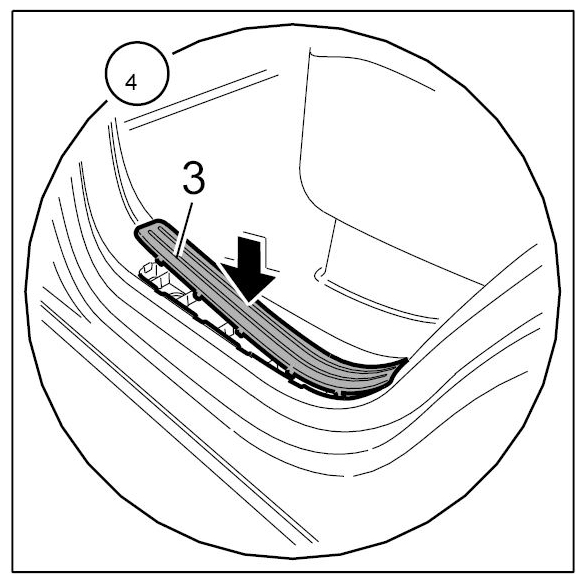

1. 4.1. Clip rear trim -3- into scuff plate from rear to front.

  Fig 9: Installing Scuff Plate Rear Trim
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip in trim.

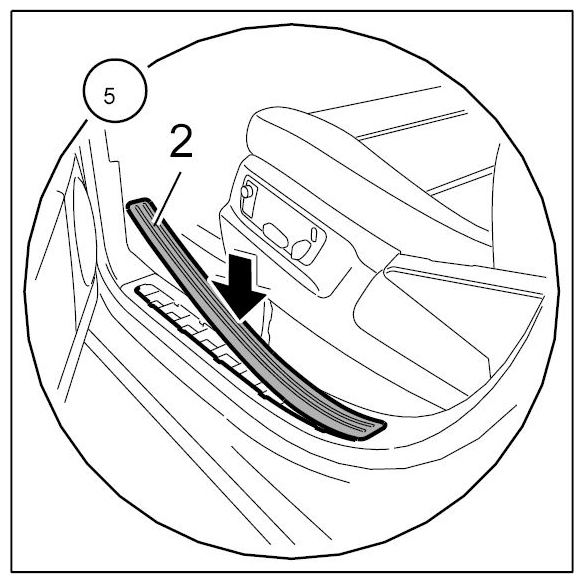

1. 5.1. Clip front trim -2- into scuff plate from rear to front.

  Fig 10: Installing Scuff Plate Front Trim
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install B-pillar trim. → Installing B-pillar trim panel
